4. Remove the wiring harness connected to the float switch on the base cover.

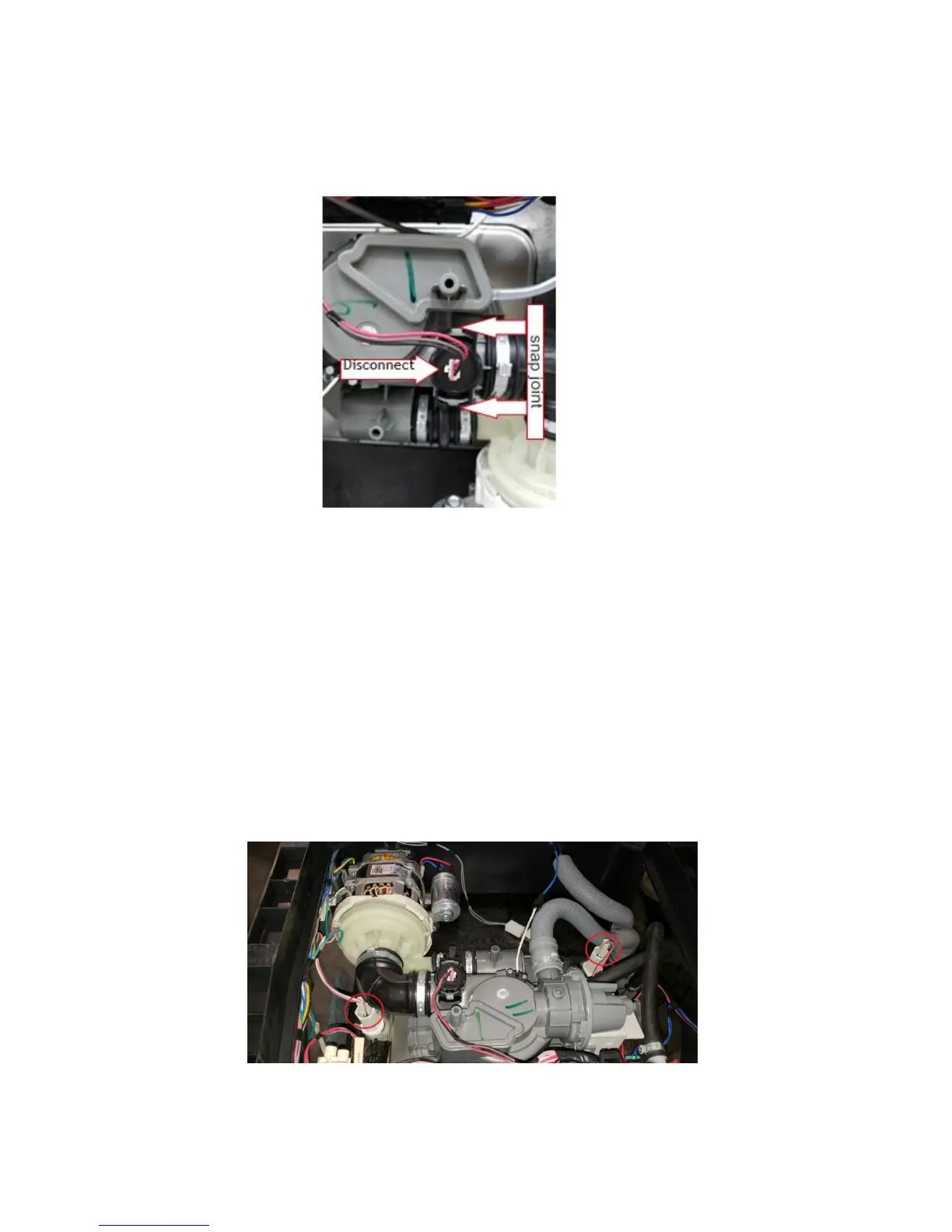

5. Disconnect the turbidity sensor wire harness.
6. Release the snap joints to remove the turbidity sensor.
Note: Ensure the 0-ring is retained in the turbidity sensor before reassembly.
Heating Element
The heating element maintains water temperature during the wash and rinse cycles and
heats the air during the drying cycle. To remove the heating element:
1. Disconnect the power.
2. Open the dishwasher door and remove the bottom rack.
3. Lay the dishwasher on its back.
4. Remove the 1 screw that attaches the base cover to the base, then use a flat-
head screw driver to release the snap joints.
5. Remove the wiring harness connected to the float switch on the base cover.
6. Remove the 2 wires from the heating element.
To Next Page
