Lenco Marine

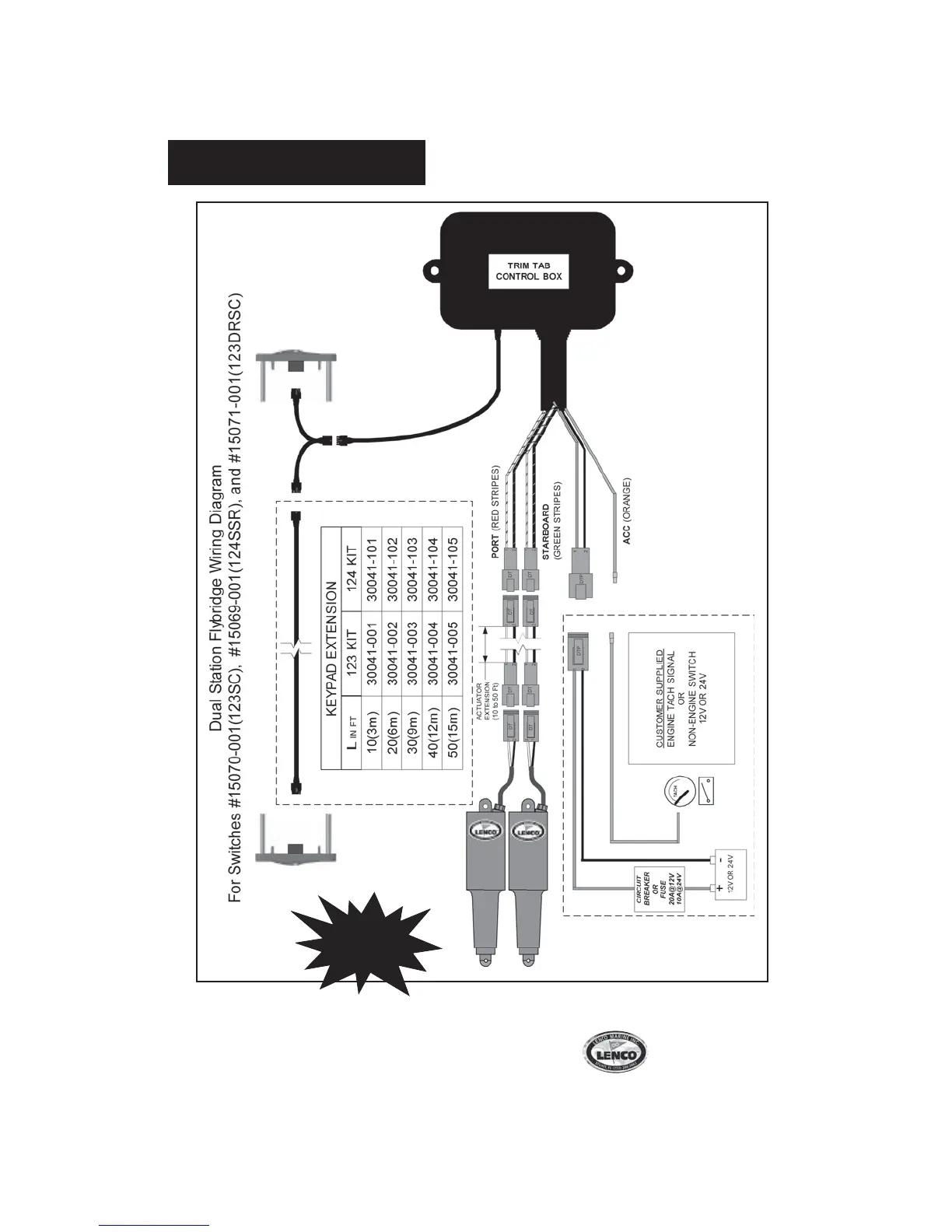

Dual Station Switch Wiring
Switch
Template
Page 27
Note: In all cases, make
sure control box is
mounted with wires facing
down toward deck.
This product must be wired exactly as shown above.
Failure to wire the trim tab retractor as shown will cause
cancellation of all warranties by the manufacturer.
