Owner’s Manual
1 Hatch Lift #’s HL-400, HL-800, HL-800s, HL-1200,
(electromechanical actuator) HL-1200S, HL-1600, HL-1600S,
HL-2000, HL-2000S, HL-2400, HL-2400S
2 Mounting brackets #50014-001 (119), #50015-001 (118)
3 Clevis pins #60101- 001 (121SS)
4 Single rocker switch #10225-101 (125) (optional)
5 Slide bracket #70381-001 (HLSB) (optional)
SYSTEM PARTS
45
MAX
45
MAX
Hatchlift
Y
Length IN/CM
X
Length IN/CM
W
LBS/KG
YxW÷X=Force

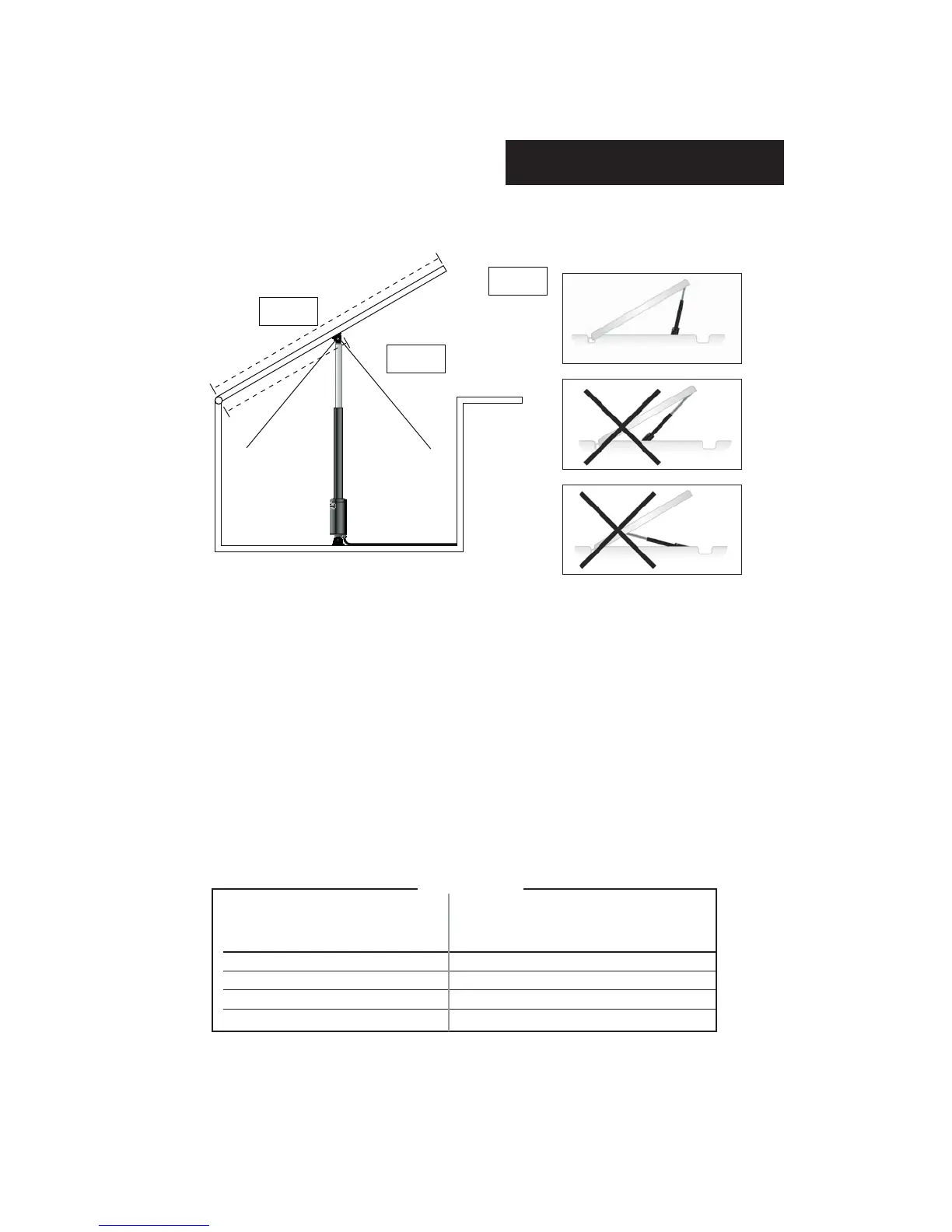

1. Follow the chart above to figure out
load on the hatch lift. Maximum load
is 500 lbs. (226.79 kg)
Y = Total length of hatch
X = Length from the hinge to the
hatch lift mounting point
W = Weight of the hatch to be lifted
2. Determine the angle of the hatch lift
mount. Do not exceed 45 degrees
from center.
3. Mount the hatch lift on the desired
location as per the above instructions.
Important: It may be necessary to
shim the upper or lower mounting
bracket up or down so the hatch does
not bind when fully closed. The hatch
lift does not stop pulling until it has
reached its fully closed position. If the
hatch fully closes before the hatch lift
is fully retracted, it will cause damage
to the lift or the mounting hardware.
Shim the hatch lift with stainless
washers for small amounts of length.
Use Lenco part #118S for lengths
greater then 1/8" (3 mm).
4. Wire to switch according to the hatch
lift wiring diagram in the owners
manual supplied with the hatch lift.
