Upgrading and Retrofitting
Standard Tab to Troll’n Tab
A 9x12 trim tab can be upgraded to 9x12 Troll’n Tab.
Standard Tab Blade Upgrade
For a larger trim tab blade a 9x12 blade can be retrofitted with a 12x12 blade.
Edge Mount Kit Upgrade
Since the placement of the upper bracket is lower then a standard mount, an
edge mount can be retrofitted only with another edge mount trim tab.
Edge Mount Tab to Troll’n Tab
A 12x12E trim tab can be upgraded to a 12x12 Troll’n Tab.
Note: In order to utilize the same mounting holes when upgrading from trim
tabs to Troll’n Tabs, the trim tabs have to have been mounted with the hinges at
least 3/8" (.95 cm) from transom bottom as recommended in Lenco installation
instructions.

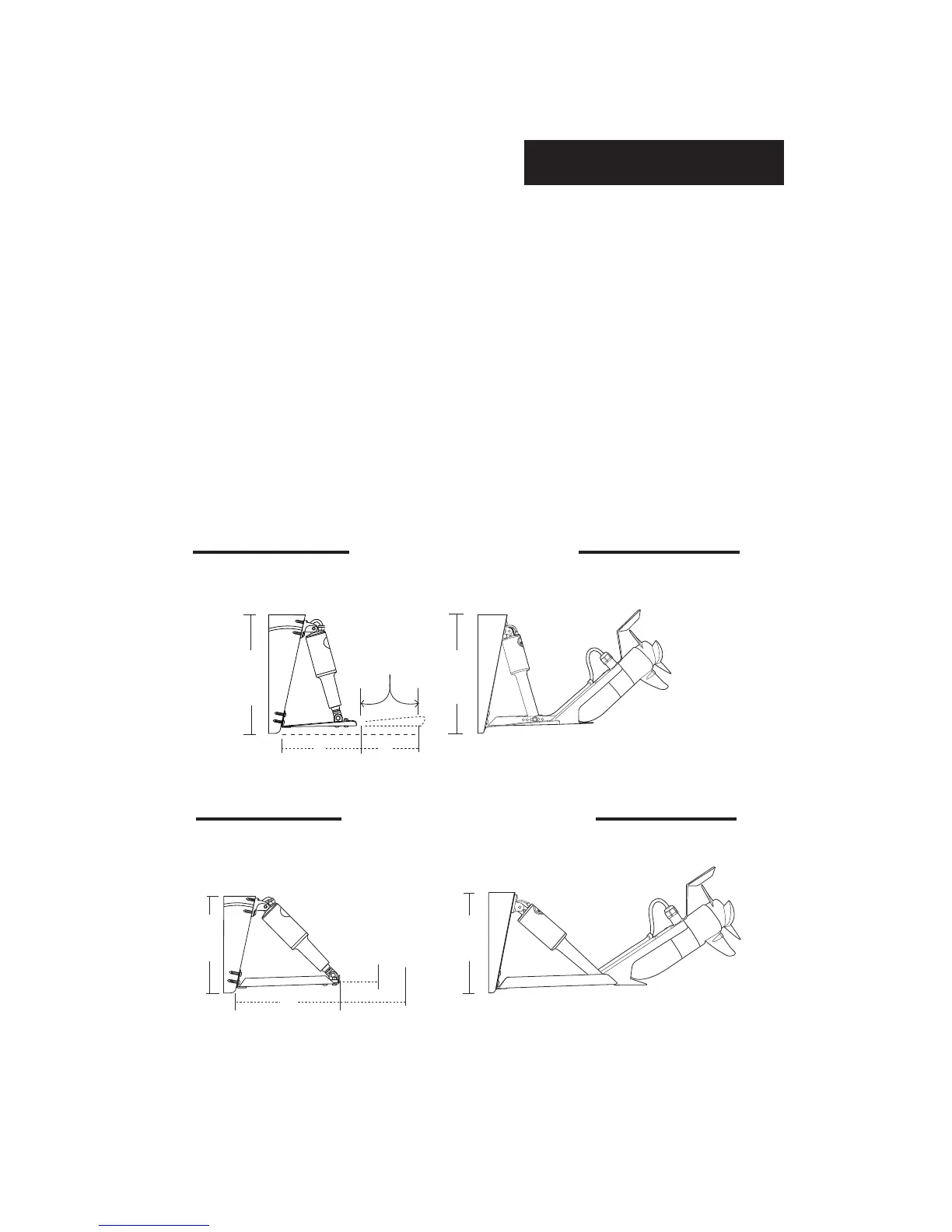

Standard Mount Kit
# 15001-101 (TT 9x12 NS)
Can be upgraded to a 12" tab or a 9x12 Troll’n Tab
12"
(30.48 cm)
9"
(22.86 cm)
TT 12 x 12 NS
Tab
or 9 x 12
TNT Tab
14"
(35.56 cm )
14 "
(35.56 cm)
max.
height
needed
for
actuator
max.
height
needed
for
actuator
Edge Mount Kit
#15016-101 (TT 12x12 ENS)
Can be upgraded to a 16" or 18" tab or a
12x12 Troll’n Tab
12"
(30.48 cm)
11"
(27.94 cm)
max.
height
needed
for actuator
18"
(45.72 cm)
16" (40.64 cm)
RT 16 x 12 RT 18 x 14
11"
(27.94 cm)
max.
height
needed
for actuator
Upgrading and Retrofitting
Owner’s Manual
