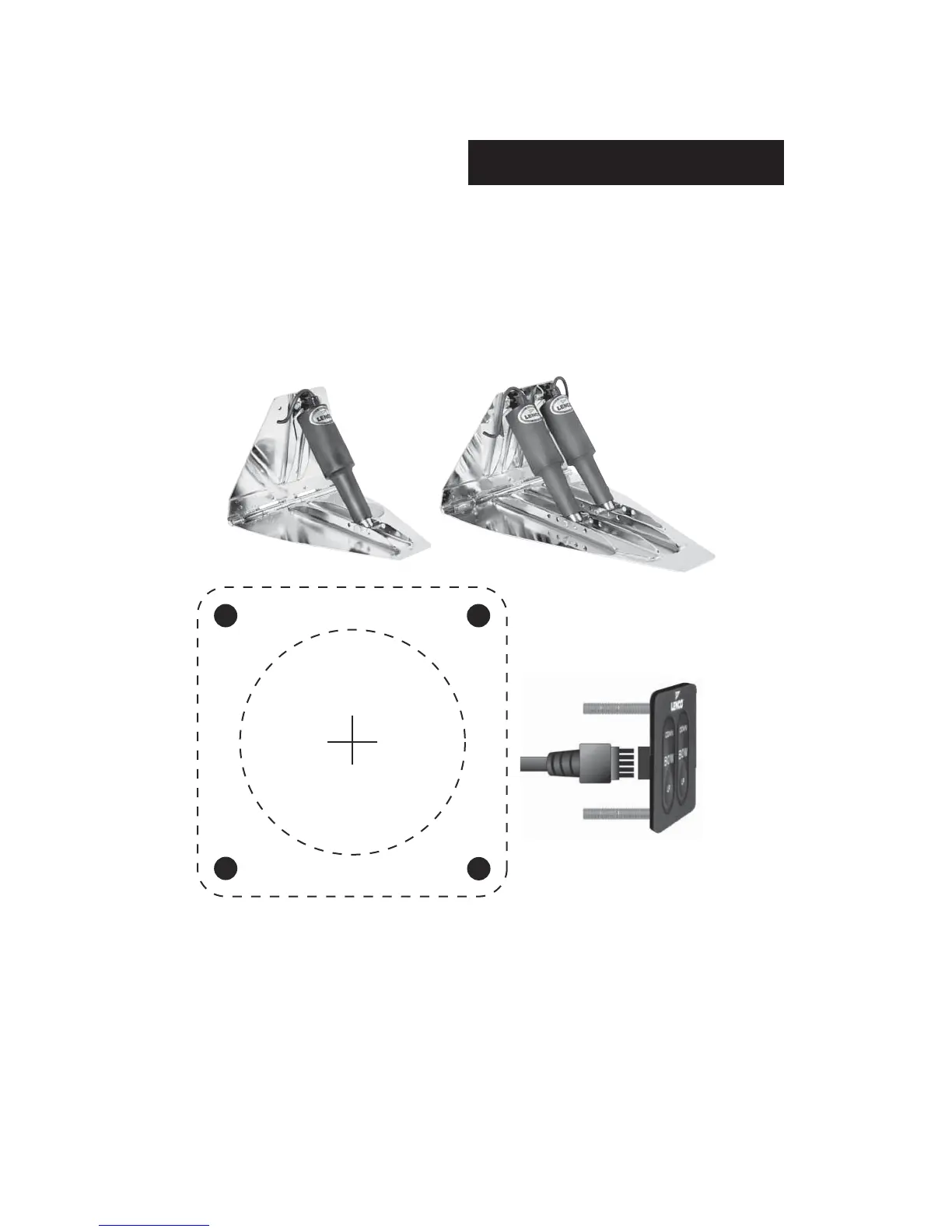

Switch Template
Remove the template from the owner’s
manual by cutting around the dashed
rectangular perimeter line.
Align the 3/16" (.48 cm) drill bit with each
of the four black circles and drill straight
down through the helm, providing
clearance for the mounting hardware
provided with the switch.
Align the centering bit of a 2" (5.08
cm) hole saw with the cross hairs in the
center of the 2" (5.08 cm) dashed circular
perimeter and drill straight down through
the helm, providing additional clearance
for switch and electrical connection.
2" (5.08 cm) hole for
Switch Key Pads
Tactile Switch Connection
Mount control box within 30"
(76.2) of keypad.
Control box wire harness is 30"
(76.2) length
High Performance Tabs - Single & Dual Actuator
s(IGHPERFORMANCETABKITINCLUDESTWOVOLT%XTREME$UTY!CTUATORSWITH33BILLET
ram with 3/8" (.95 cm) SS bolts, two 7-gauge flat-304 electro-polished stainless blades.
s&ULLTRANSOMBACKPLATEWITHADJUSTABLE#CHANNELCMBOLTSANDsuper duty
hinge with 3/8" (.95 cm) hinge pin
s!CTUATOREXTENSIONHARNESSESSOLDSEPARATELYINCHOICEOFLENGTHS
s#USTOMERSUPPLIEDMOUNTINGHARDWARE
s!VAILABLEINSIZES3INGLE!CTUATOR3YSTEMXX
Dual Actuator System : #15050-101 (21" x 14"), #15051-101 (25" x 14")
High Performance Tabs - Single & Dual Actuator
Electro-polished Blades
Switches sold
separately.
See available
options on
page 16
