Edimax HP-5101AC - Chapter 3: Getting Started; 3.1 Hardware Installation; 3.2 Creating a Powerline Network

5

Chapter3:GettingStarted

3.1HardwareInstallation


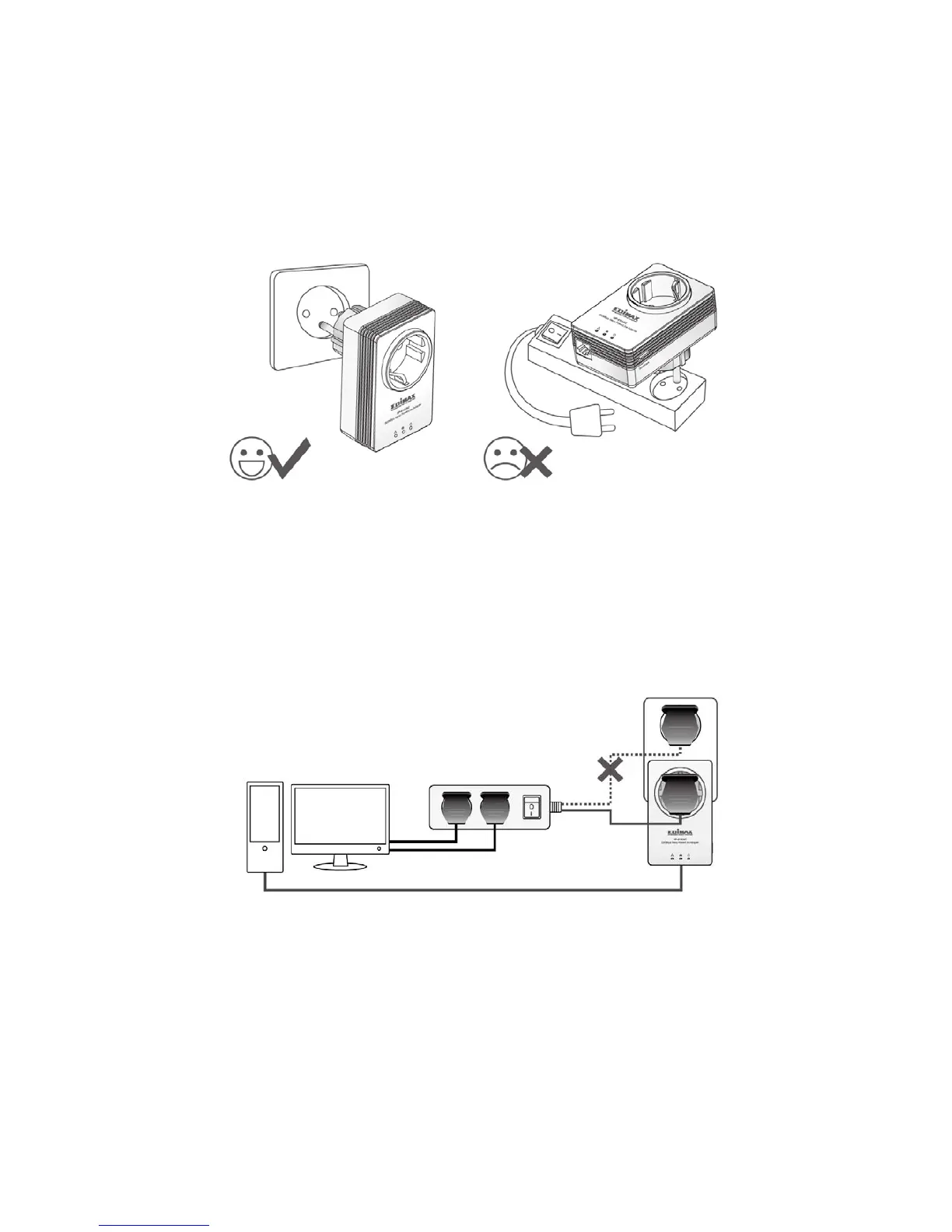

1. Alwaysplugthepowerlineadapterdirectlyintoapowersocket.Neverplugitintoa
multiplesocketoruninterruptiblepowersupply(UPS).



2. Ifyouneedtouseamultiple socketforadditionalnetworkdevices,
thenconnectthemultiplesockettotheintegratedpowersocketoftheadapter,and
plugthepowerlinedirectlyintoapowersocket,asshownbelow.Thepowersocketof
theadapterfeaturesafilterfunctionwhichis
abletoimprovethedatatransmissionin
thenetwork.




