DATE: 30MAR00
INSTALLATION SHEET:
INSTALLATION SHEET P/N: 387562
REVISION LEVEL: 1.0
FILE NAME: 387562.CDR
CREATED BY: B. Graham
APPROVED BY: J. Massing
2-MIC
Microphone Module
PRODUCT DESCRIPTION
SPECIFICATIONS
Environmental conditions
Note:
Temperature 32-120 °F (0-49 °C)
Humidity 0-93%, Non-condensing
See the 2-AAC installation sheet for standby and alarm currents.
The 2-MIC is a microphone module that issues pages over the
emergency communication system. The microphone module consists of
a dynamic push-to-talk (PTT) microphone and the following page
controls:
Phone to Evac
Phone to Alert
Page to Evac
Page to Alert
Evac
Alert
INSTALLATION
Warning!
Disconnect power to cabinets before installing or removing components.
Failure to do so may result in serious injury or loss of life.
!
Caution!
Observe static-sensitive material handling practices.

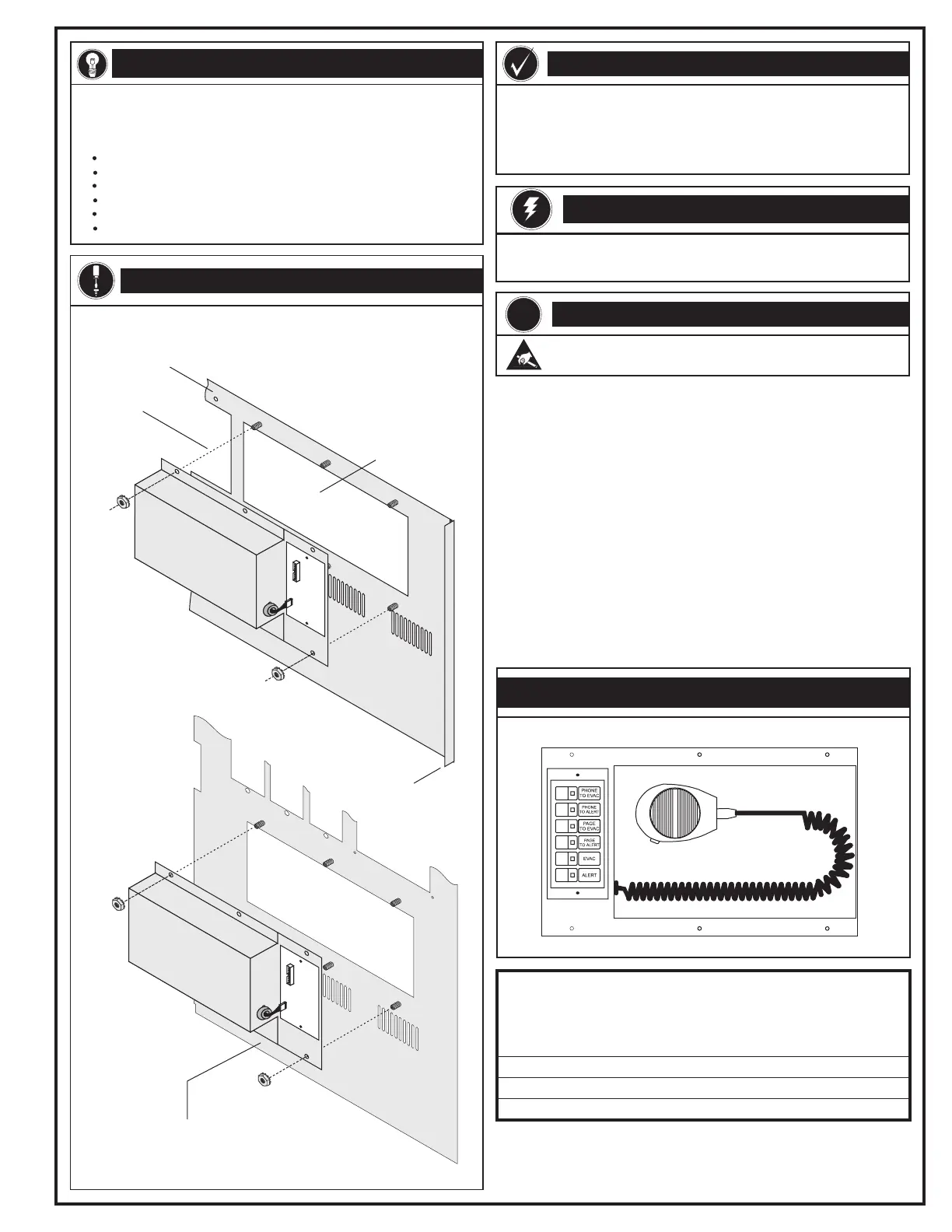

WB3D(R) inner door (rear view)
Mounting the Microphone Module
WB7D(R) lower inner door (rear view)
Mounting
space
Microphone
mounting
space
Door
hinge
PRODUCT DIAGRAM
