EDWARDS SYSTEMS TECHNOLOGY EST2 - 2-WBDS(R) Outer Door and Inner Door

PRODUCT INFORMATION
The 2-WBDS(R) is a set consisting of an outer door and
an inner door. Both doors .
The outer door is available
mount on a 2-WBS(R) wallbox
in two colors: grey or red (R),
and has one Lexan viewing window. The inner door is
available only in grey and provides mounting space for
operator interface modules.
TM
GS BUILDING SYSTEMS
CORPORATION
A UNIT OF GENERAL SIGNAL
GS BUILDING SYSTEMS CORPORATION
6411 Parkland Drive
Sarasota, FL 34243
USA
625 6th Street East
Owen Sound, Ontario
Canada N4K 5P8
DATE: 02/03/99
INSTALLATION SHEET:
INSTALLATION SHEET P/N: 387218
REVISION LEVEL: 2.0
FILE NAME: 387218.CDR
CREATED BY: B. Graham
APPROVED BY: K. Patterson

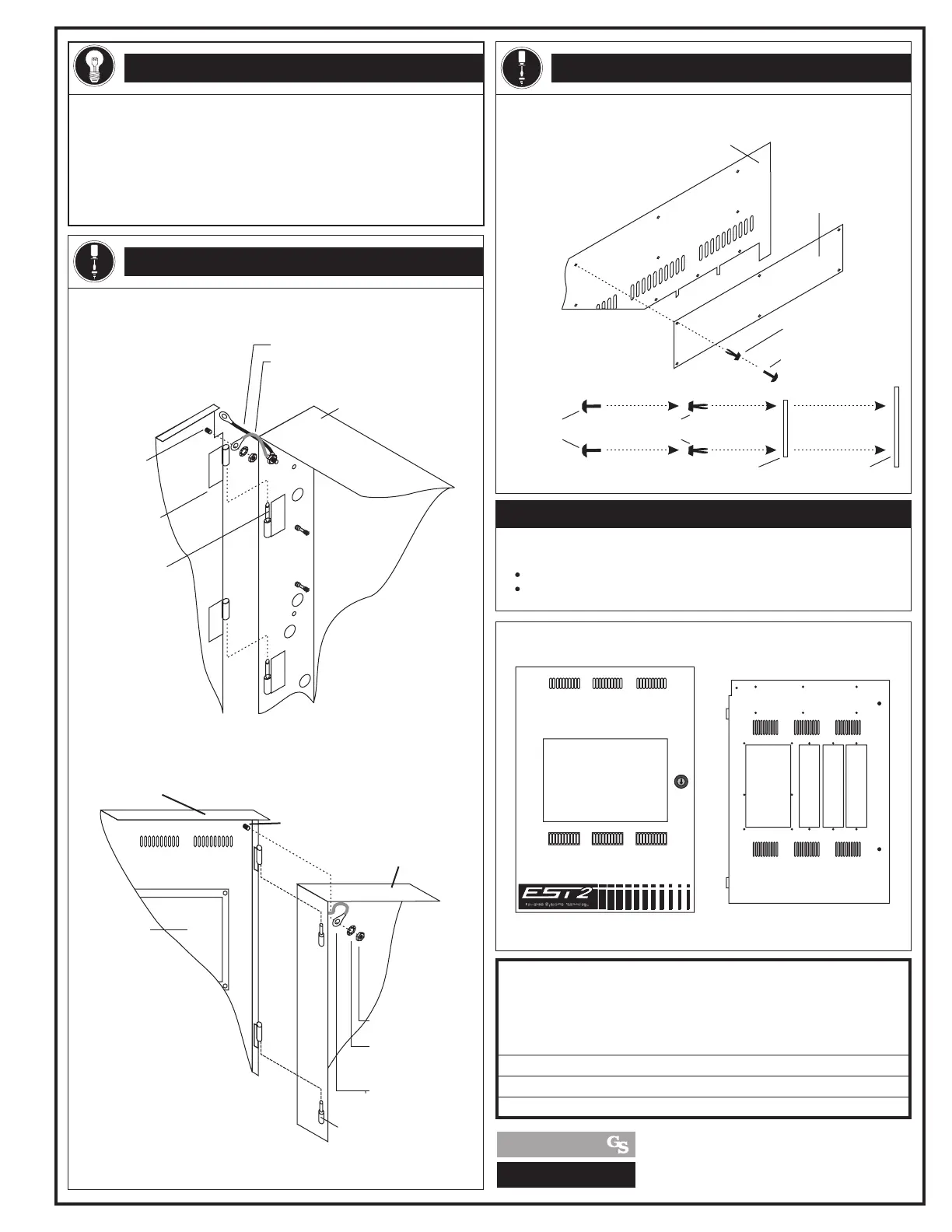

2-WBDS(R)
Outer Door and Inner Door
INSTALLATION
INSTALLATION
1 Mount the inner door.
Related Documentation
See the following installation sheets for the mounting of inner door
components:
Liquid Crystal Display (P/N 270212)
LED/Switch modules (P/N 270214)
Mount the outer door.2
Wallbox
Ground lug
Ground
lug
Ground strap
Outer door ground strap
Inner door ground strap
Outer
door
hinge
3 Mount the operator instructions.
Operator
instructions
(P/N 260323)
Operator instructions
Inner door (rear view)
Inner door
Plunger
Plunger
Grommet
Grommet
Interlocking
washer
Nut
Outer Door Inner Door
Wallbox
Inner
hinge
pin
Inner
door
Outer Door
Window
