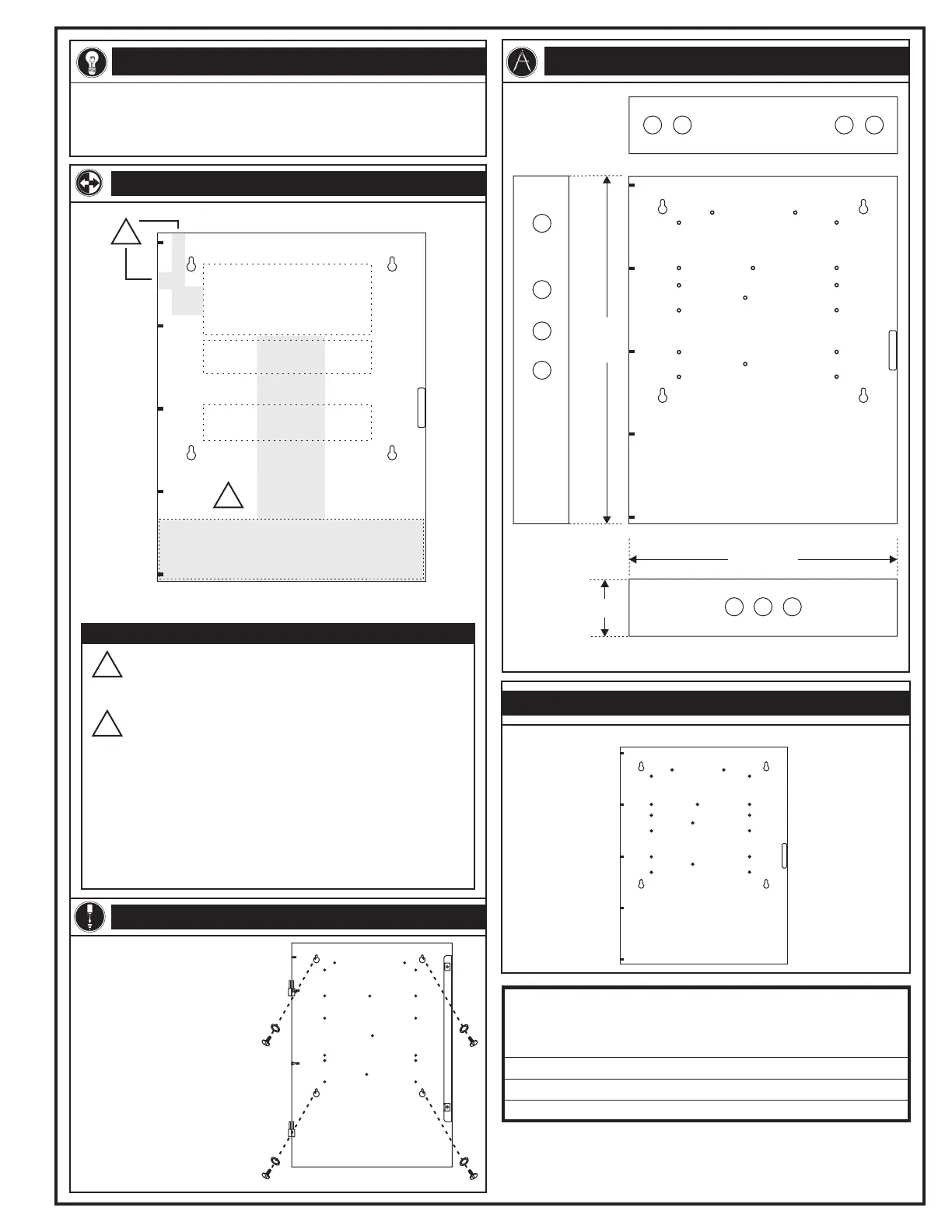

DATE: 30MAR00
INSTALLATION SHEET:
INSTALLATION SHEET P/N: 387578
REVISION LEVEL: 1.0
FILE NAME: 387578.CDR
CREATED BY: B. Graham
APPROVED BY: J. Massing
RACCR
Remote Audio Closet Cabinet (Red)
PRODUCT DESCRIPTION
16.2 in
(41.15 cm)
Top View
3.45 in (8.76cm)
Auxiliary Power Supply
Audio Amplifier
Audio Amplifier
21.0 in
(53.3 cm)
Bottom View
Front View
Side View
Run the AC power through the top left
knockouts.
only
See the appropriate module installation sheets
for detailed mounting and wiring instructions.
All conduit knockouts support 1/2 or 3/4 inch
conduit.
(1.3
or 1.9 cm)
1
1
2
2
3
4
Route battery wiring to the power supply through
a protective channel. Wiring must stay within this
area, and must remain 1/4 inch (6.4 mm) from
power-limited wiring.
Notes
DIMENSIONS
Battery space
The RACCR is a red, surface mount wallbox that houses
an auxiliary power supply, up to two audio amplifiers, and
up to two 10 Ah batteries.
WIRE ROUTING
INSTALLATION
PRODUCT DIAGRAM
Mount the wallbox
Shading represents areas that permit nonpower-limited wiring.
EDWARDS SYSTEMS TECHNOLOGY, INC.
SARASOTA, FL: 941-739-4300 FAX 941-753-1806
CHESHIRE, CT: 203-699-3000 FAX 203-699-3075
OWEN SOUND, CANADA: 519-376-2430 FAX 519-376-7258
INTERNATIONAL, CANADA: 905-270-1711 FAX 905-270-9553
