EDWARDS SYSTEMS TECHNOLOGY EST2 - CMDN, SMDN, 2-CMDN(-C), 2-SMDN(-C) Enclosure Installation

DATE: 30MAR00
INSTALLATION SHEET:
INSTALLATION SHEET P/N: 270650
REVISION LEVEL: 2.0
FILE NAME: 270650.CDR
CREATED BY: B. Graham
APPROVED BY: K. Patterson
CMDN, SMDN
2-CMDN(-C), 2-SMDN(-C)
Enclosure Installation
RELATED PARTS
Knockout for 0.75 in (1.9 cm)
conduit (both sides)
Knockout for 0.75 in (1.9 cm)
conduit (both sides)
Knockout for 0.75 in (1.9 cm)
conduit (both sides)
3.75 in (9.5 cm)
Annunciator faceplate
Cover
16.25 in (41.3 cm)
2.5 in (6.4 cm)
Front view
Top view
Side view
1.4 in (3.6 cm)
16.0 in (40.6 cm)
3.75 in (9.5 cm)
8 in (20.3 cm)
7.25 in (18.4 cm)
7.0 in (17.8 cm)
6.1 in (15.5 cm)

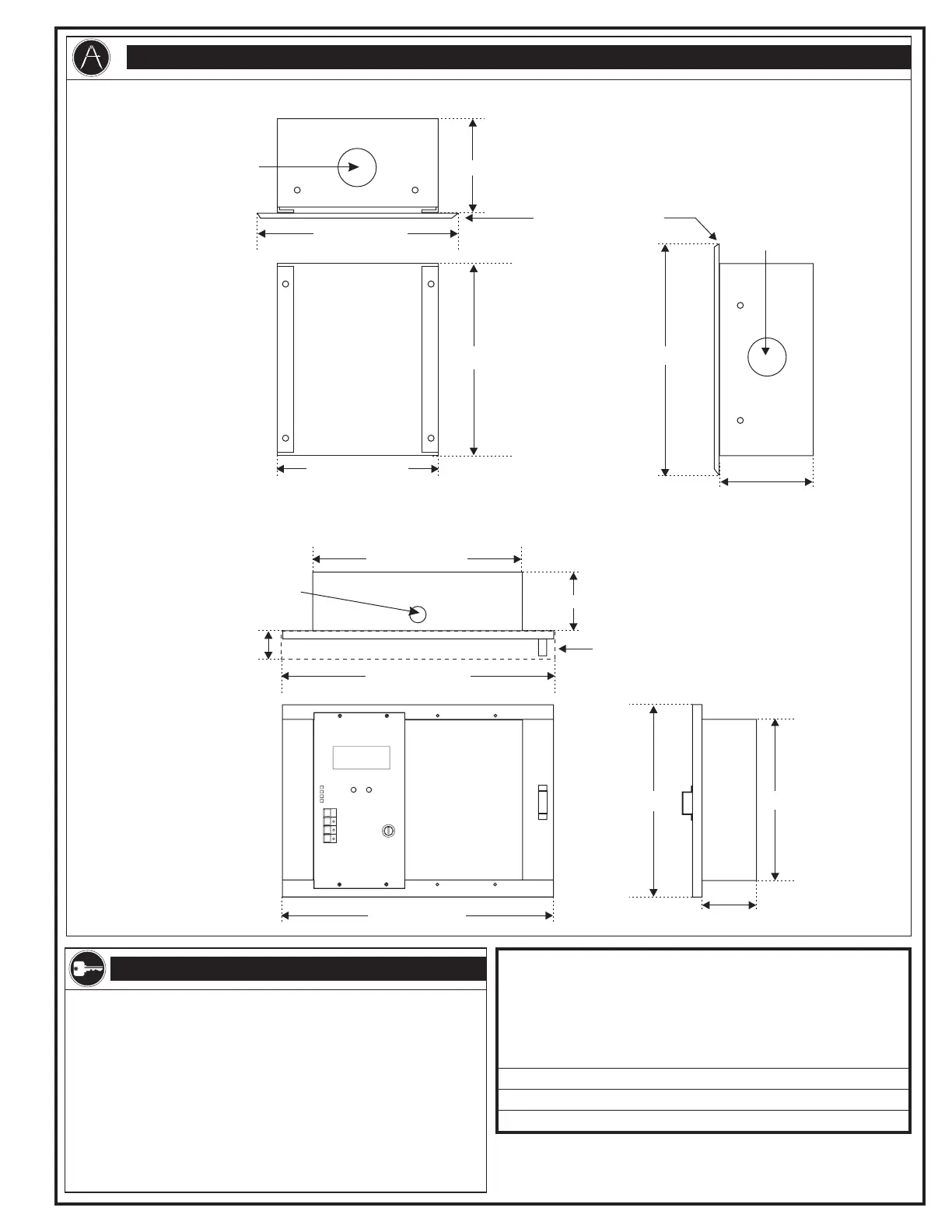

DIMENSIONS
11.25 in (28.6 cm)
2.5 in (6.4 cm)
11.5 in (29.2 cm)
9.5 in (24.1 cm)
Surface mount backbox
Four module enclosure
EDWARDS SYSTEMS TECHNOLOGY, INC.
SARASOTA, FL: 941-739-4300 FAX 941-753-1806
CHESHIRE, CT: 203-699-3000 FAX 203-699-3075
OWEN SOUND, CANADA: 519-376-2430 FAX 519-376-7258
INTERNATIONAL, CANADA: 905-270-1711 FAX 905-270-9553
Designator Description
Surface Mount Backbox CMDN housing
SAN-4 Four module enclosure
SAN-8 Eight module enclosure
RSAN-6 Six module mounting frame
BP-A SAN blank panel
