PRODUCT DESCRIPTION
2-3ANN/D
The 2-3ANN/D is a set consisting of an outer door and an
inner door. The outer door and the inner door mount on
the remote annunciator wallbox. The outer door has a
Lexan viewing window. The inner door provides
mounting space for a liquid crystal display and three
LED/switch modules.
The 2-6ANN/D is a set consisting of an outer door and an
inner door. The outer door and the inner door mount on
the remote annunciator wallbox. The outer door has a
Lexan viewing window. The inner door provides
mounting space for a liquid crystal display and six
LED/switch modules.
TM
TM
2-6ANN/D
DATE: 30MAR00
INSTALLATION SHEET:
INSTALLATION SHEET P/N: 387478
REVISION LEVEL: 2.0
FILE NAME: 387478.CDR
CREATED BY: B. Graham
APPROVED BY: K. Patterson

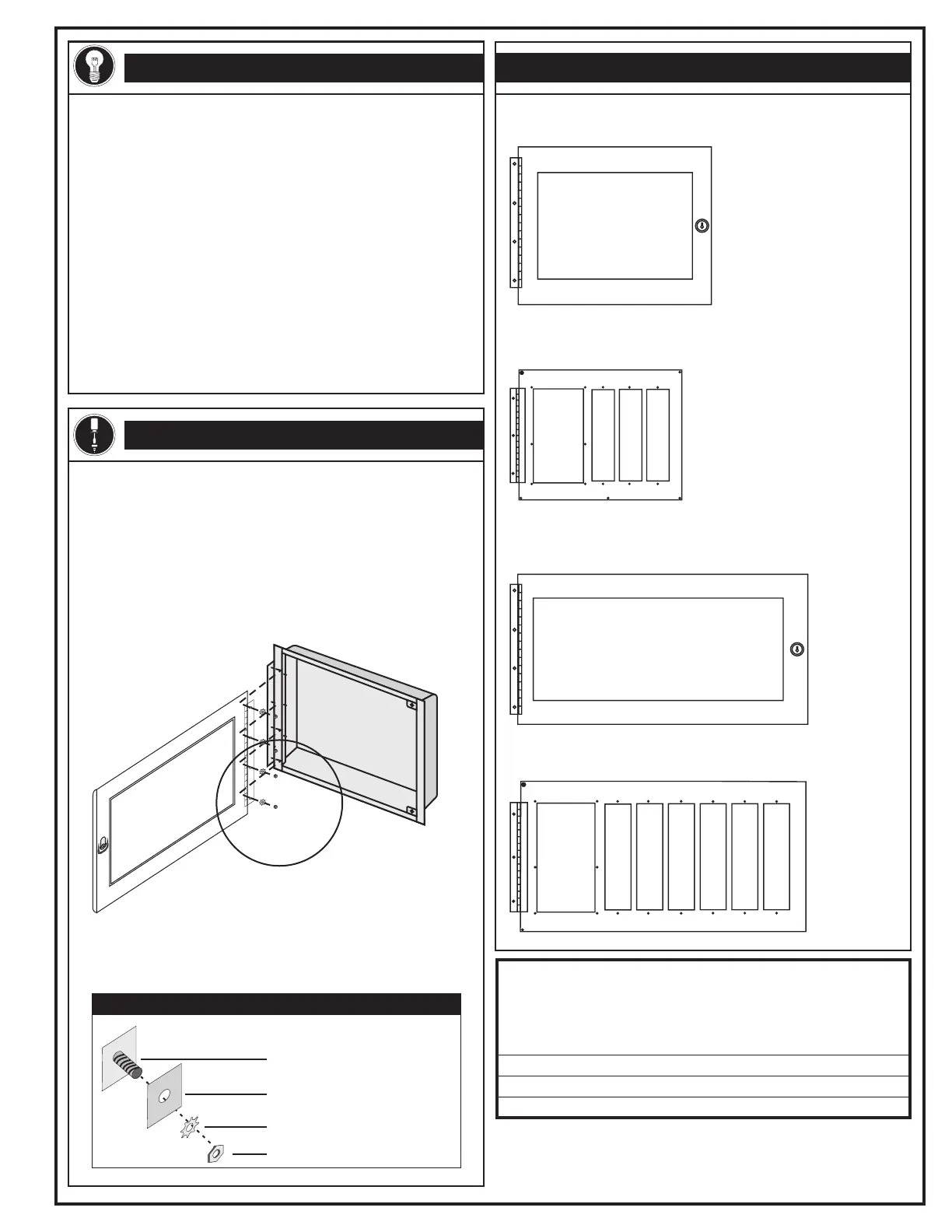

2-3ANN/D and 2-6ANN/D
Remote Annunciator Cabinet Doors
2-3ANN/D
2-6ANN/D
Outer Door
Inner Door
Outer Door
Inner Door
INSTALLATION
A Install the outer door.
Wallbox mounting stud
Outer door mounting hole
Washer
Nut
Detail A
See Detail A.
1 Align the outer door mounting holes with the
four wallbox mounting studs.
2 Mount the outer door with the washers and
nuts provided.
EDWARDS SYSTEMS TECHNOLOGY, INC.
SARASOTA, FL: 941-739-4300 FAX 941-753-1806
CHESHIRE, CT: 203-699-3000 FAX 203-699-3075
OWEN SOUND, CANADA: 519-376-2430 FAX 519-376-7258
INTERNATIONAL, CANADA: 905-270-1711 FAX 905-270-9553
PRODUCT DIAGRAM
