Introduction

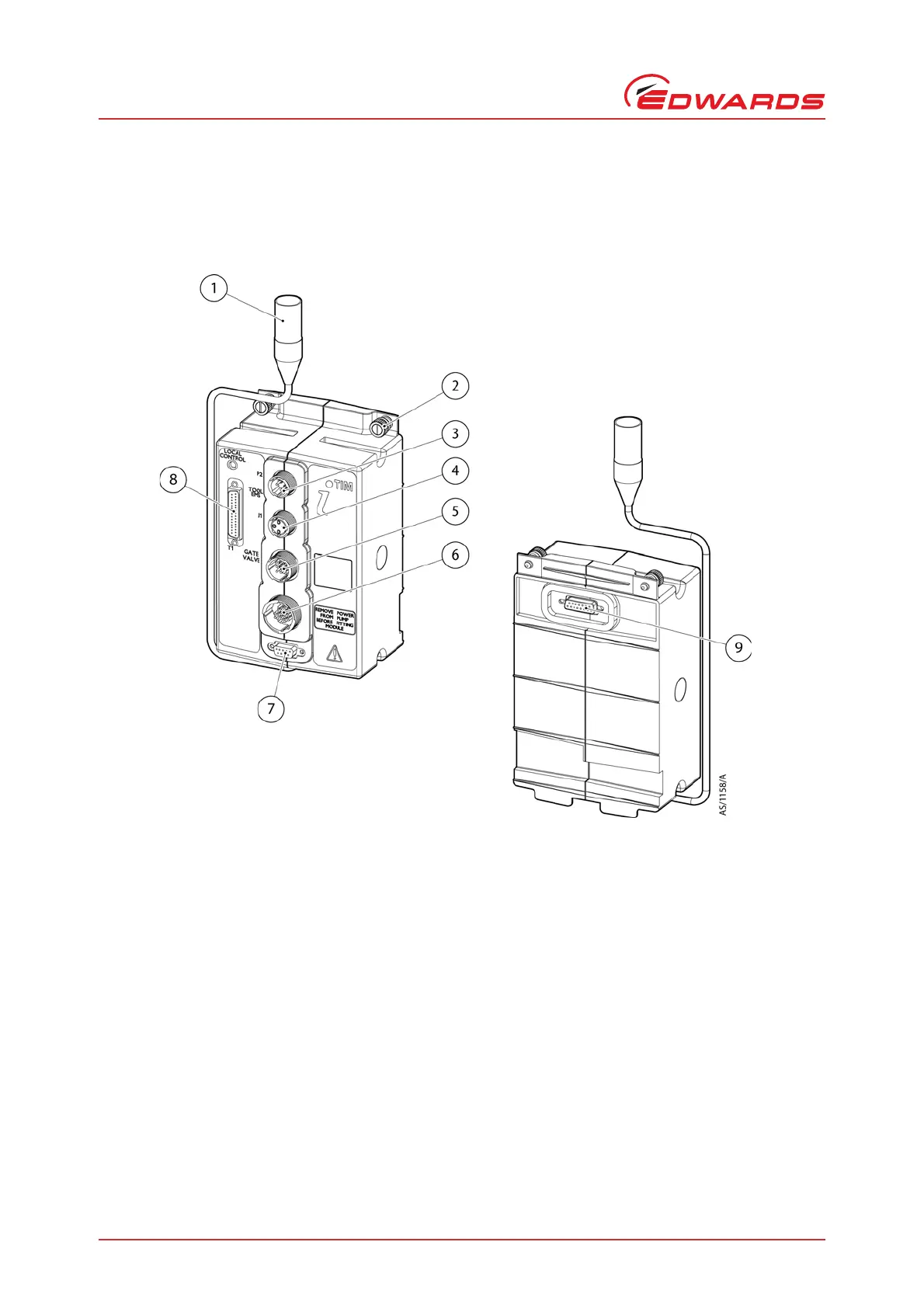

Figure 2 - Components of the iTIM (without E73 connector)
1. 6-way XLR connector
2. Module fixing screw
3. Tool EMS connector L2
4. Tool EMS connector MCM2
5. Gate valve connector
6. Parallel connector MCM
7. Serial connector (optional)
8. Parallel connector L1
9. Systm connector
