Introduction
D374-20-880 Issue E

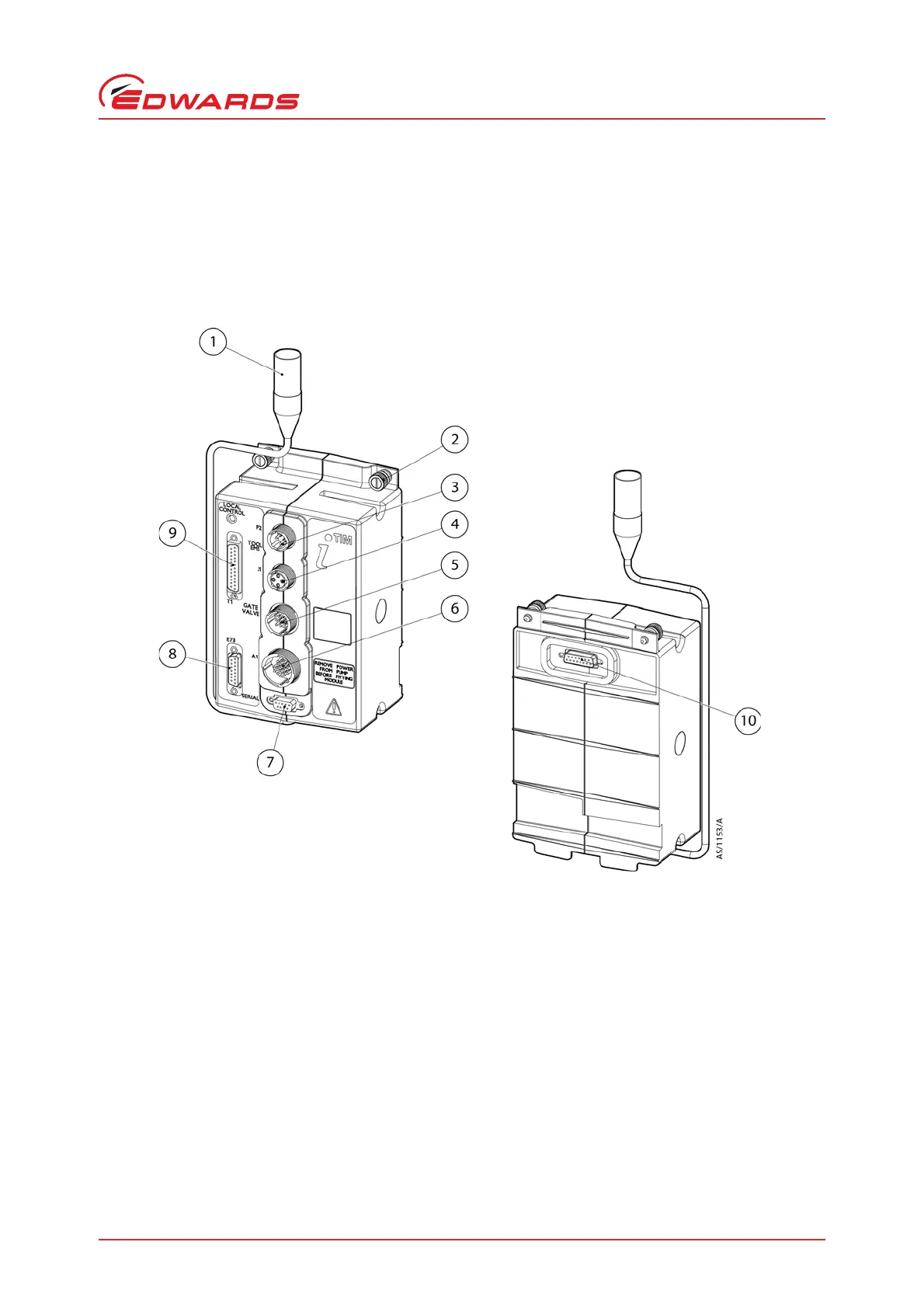

Figure 1 - Components of the iTIM
1. 6-way XLR connector
2. Module fixing screw
3. Tool EMS connector P2
4. Tool EMS connector J1
5. Gate valve connector
6. Parallel connector A1
7. Serial connector (optional)
8. Parallel connector E73
9. Parallel connector T1
10.System connector
