Installation

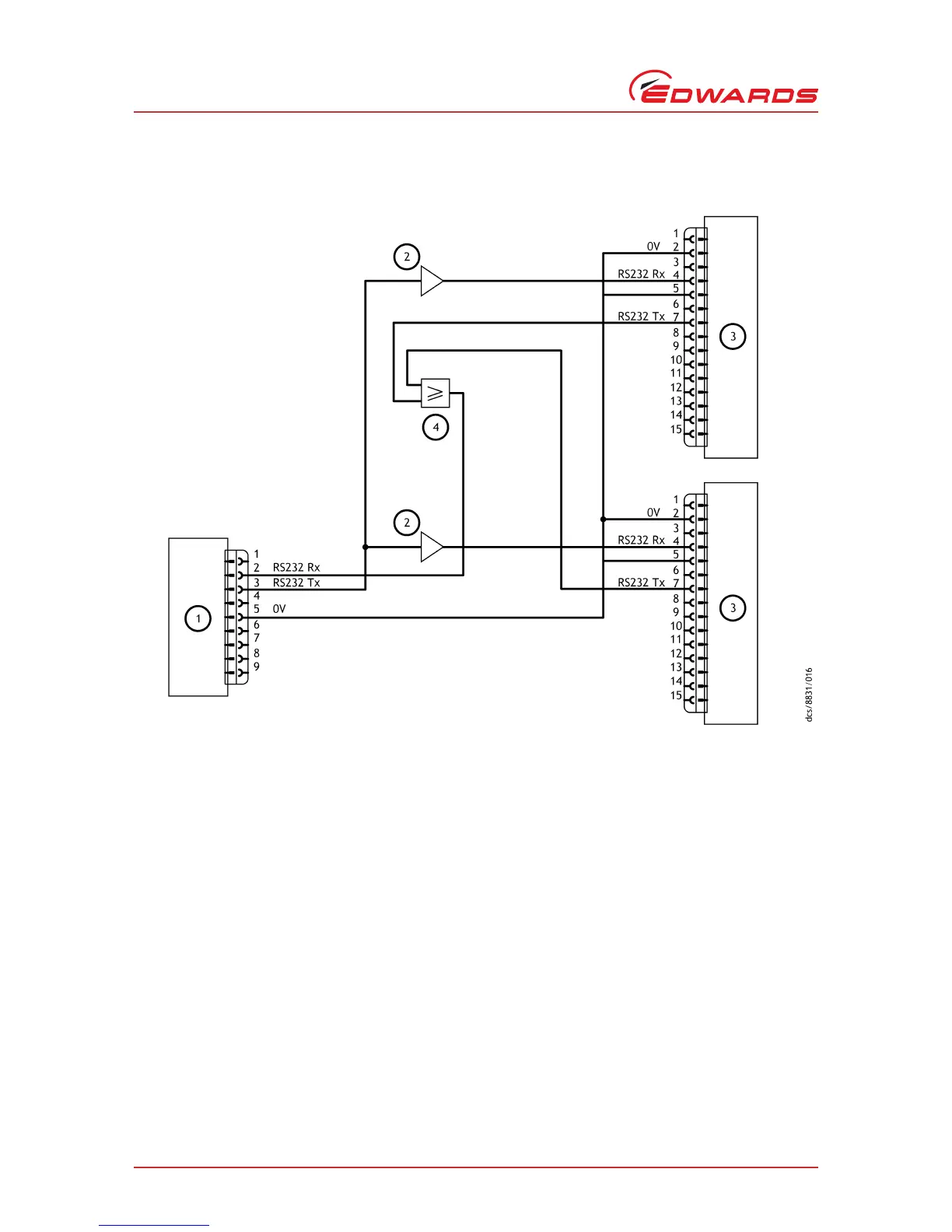

Figure 15 - Conceptual diagr
am for mu
lti-drop connection
using RS232 interface
1.
RS232 interface
on control equipment
2.
Buffer
3.
nEXT pump
4.
OR gate
47
49
