PD00E0xKNX KNX PRESENCE DETECTORS RANGE Handbook
Eelectron SpA, Via Monteverdi 6,
I-20025 Legnano (MI), Italia
Tel: +39 0331.500802 Fax:+39 0331.564826
E-mail: info@eelectron.com Web:www.eelectron.com
C.F. e P.IVA 11666760159
Tribunale di Milano 359157-8760-07
CCIAA Milano 148549
27/46

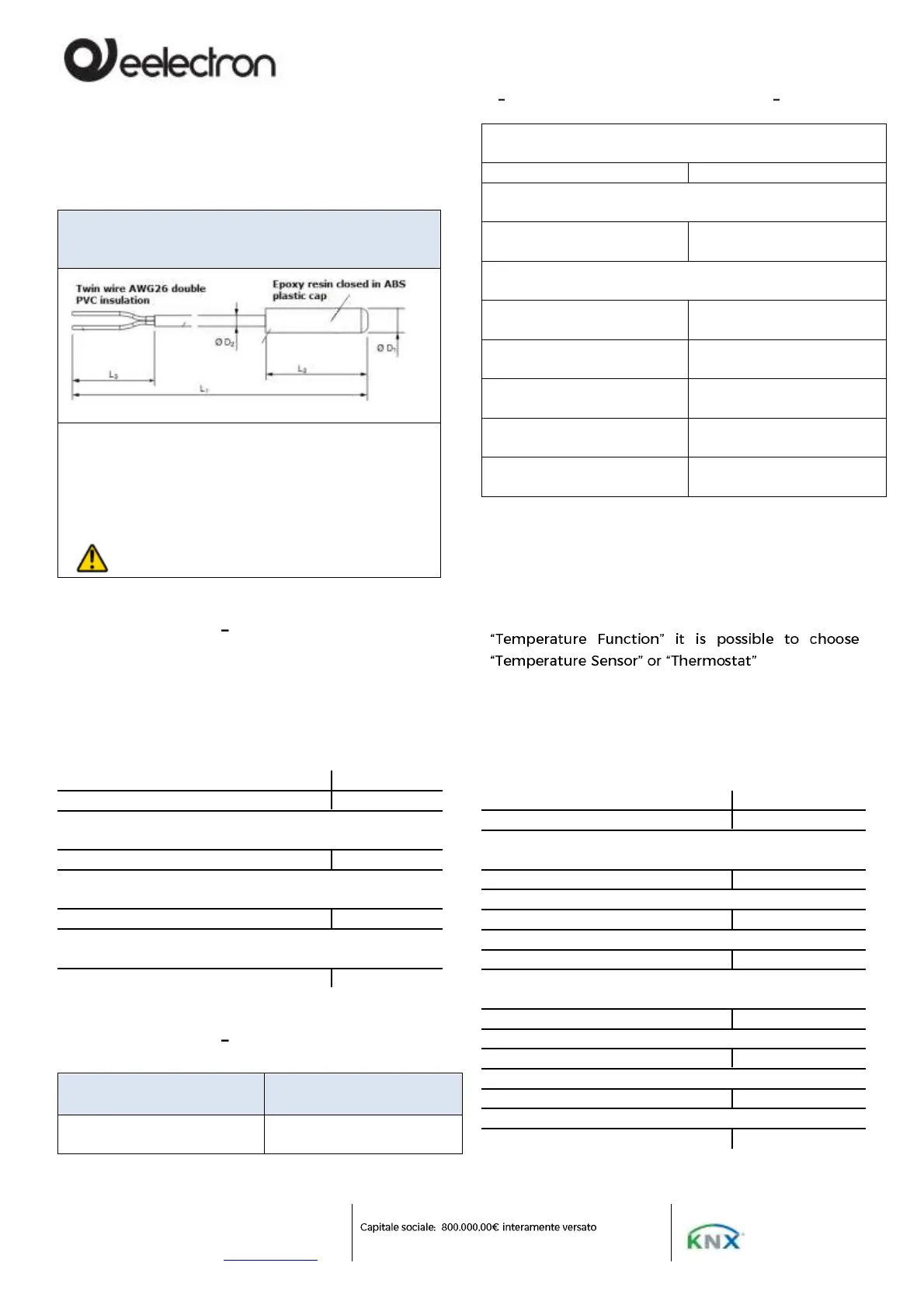

TS01B01ACC
D1 = 9 mm D2 = 4 mm L2 = 49 mm L1 = 1250 mm
NTC resistance tolerance: ± 2%
Measure range -50°C ÷ +60°C
Cable: 2 wire double insulation
Cable colour: White
NTC colour: White
Warning:
keep at least 3 mm from all live parts
Additional probe description
Using the "temperature probe" module it is possible
(by connecting the NTC probe) to measure the
temperature and send simple ON / OFF commands.
The objects available are as follows:
<Additional Probe> Temperature
2 bytes | CRT
Send temperature measurement in ° C on variation and /
or cyclically.
< Additional Probe> Upper Thershold
1 bit | CRT
Send On, Off or nothing when the set upper threshold is
raised or lowered
< Additional Probe> Lower Thershold
1 bit | CRT
Send On, Off or nothing when the set lower threshold is
raised or lowered
Additional probe parameters
KNX PARAMETER
SETTINGS
Activation telegram
Telegram 0
Telegram 1
Defines which telegram value enables sending of the
threshold on / off telegrams.
State after download
Disabled / enabled
Defines whether the sending of the threshold on / off
telegrams is enabled or disabled after download.
Hysteresis
0.5°C 1.0°C
2.0°C 5.0°C
Defines the hysteresis value to be applied on the high and
low thresholds
Upper Setpoint value
-20°C ÷ +100°C TS01A01ACC
-50°C ÷ +60°C TS01B01ACC
Lower Setpoint value
-20°C ÷ +100°C TS01A01ACC
-50°C ÷ +60°C TS01B01ACC
Telegram when value is
below setpoint
off / on / nothing
Telegram when value is
above setpoint
off / on / nothing
Cyclic sending time of
telegrams
No cyclic sending 30 min
1 hour 2 hours
16. Temperature sensor
In General Parameter page when setting
The temperature sensor module is similar to the
"Additional probe" module; it adds some
communication objects and can mix the measured
temperature with an eternal temperature via KNX
bus:
<Temperature x> Actual Temp.
2 bytes | CRT
Send temperature measurement in °C on variation and / or
cyclically.
<Temperature x> KNX probe Temp.
2 bytes | CW
The measurement of another probe is received via KNX
<T.Sensor> Setpoint Upper
2 bytes | CW
Receives the upper setpoint via KNX bus
<T.Sensor> Telegram Upper
1 bit | CRT
Send On, Off or nothing when going up or down the set
upper threshold
<T.Sensor> Setpoint Lower
2 bytes | CW
Receives the lower setpoint via KNX bus
< T.Sensor> Telegram Lower
1 bit | CRT
Send On
<T.Sensor> Enable Input
1 bit | CW
Enables or disables the sending of on / off telegrams
