EASZ-2 Manual v1.12 - 12.2.2018 Page 13 / 30

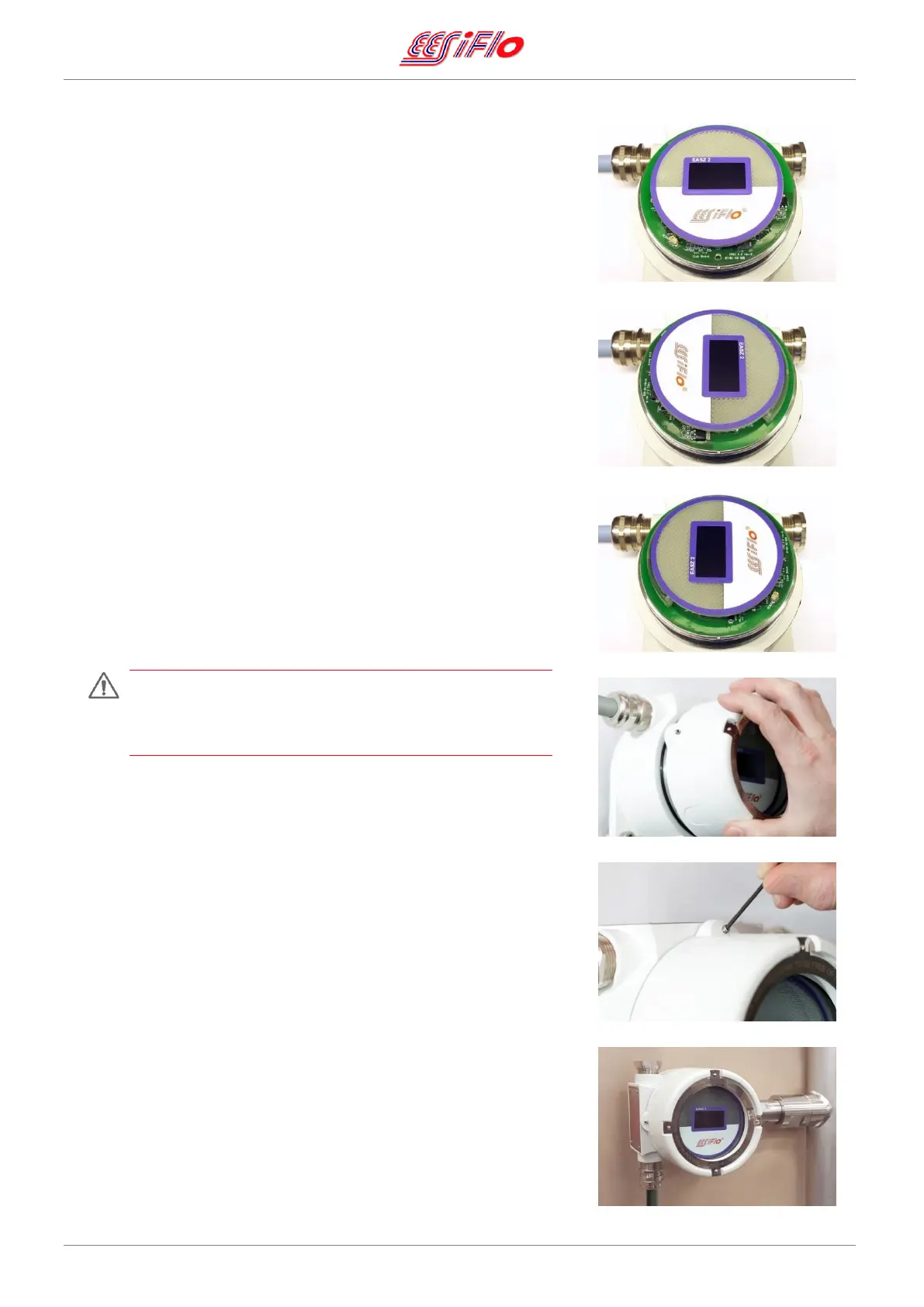

15) Place the display board onto the body making sure that it
sits flush and firmly mating with the pins at the top and
bottom of the opening. The base has 4 magnets to hold the
display board.
Apart from mounting the display board vertically it can be
mounted 90º clockwise to the centre, again ensuring that
it sits flush and firmly mating with the pins at the top and
bottom of the opening
or
it can be mounted 90º anticlockwise to the centre, again
ensuring that it sits flush and firmly mating with the pins at
the top and bottom of the opening to suit a vertical pipe.
16) Before replacing the cover check that that the black seal on
the base of the body is in good condition.
When using EASZ-2Ex, the body is a flameproof enclosure
and it is essential that the seal is not damaged otherwise it
must be replace immediately - Only approved seals can be
used. Coat the seal with a suitable lubricant (e.g. MOGUL LV2).
17) Carefully replace the cover making sure that it screws
smoothly onto the base and is tighten correctly. Ensure that
the grub screw lines up with the flat part on the top of the
body.
18) Tighten the small grub screw at the top of the body cover
using the appropriate Allan Key so that the cover cannot be
turned freely.
19) When leaving the installation check that everything is
correctly fixed and that there are no loose cables or parts.
20) Perform a final check that there are no leaks of the oil from
the threads or flanges and the sampling point is fully
closed.
