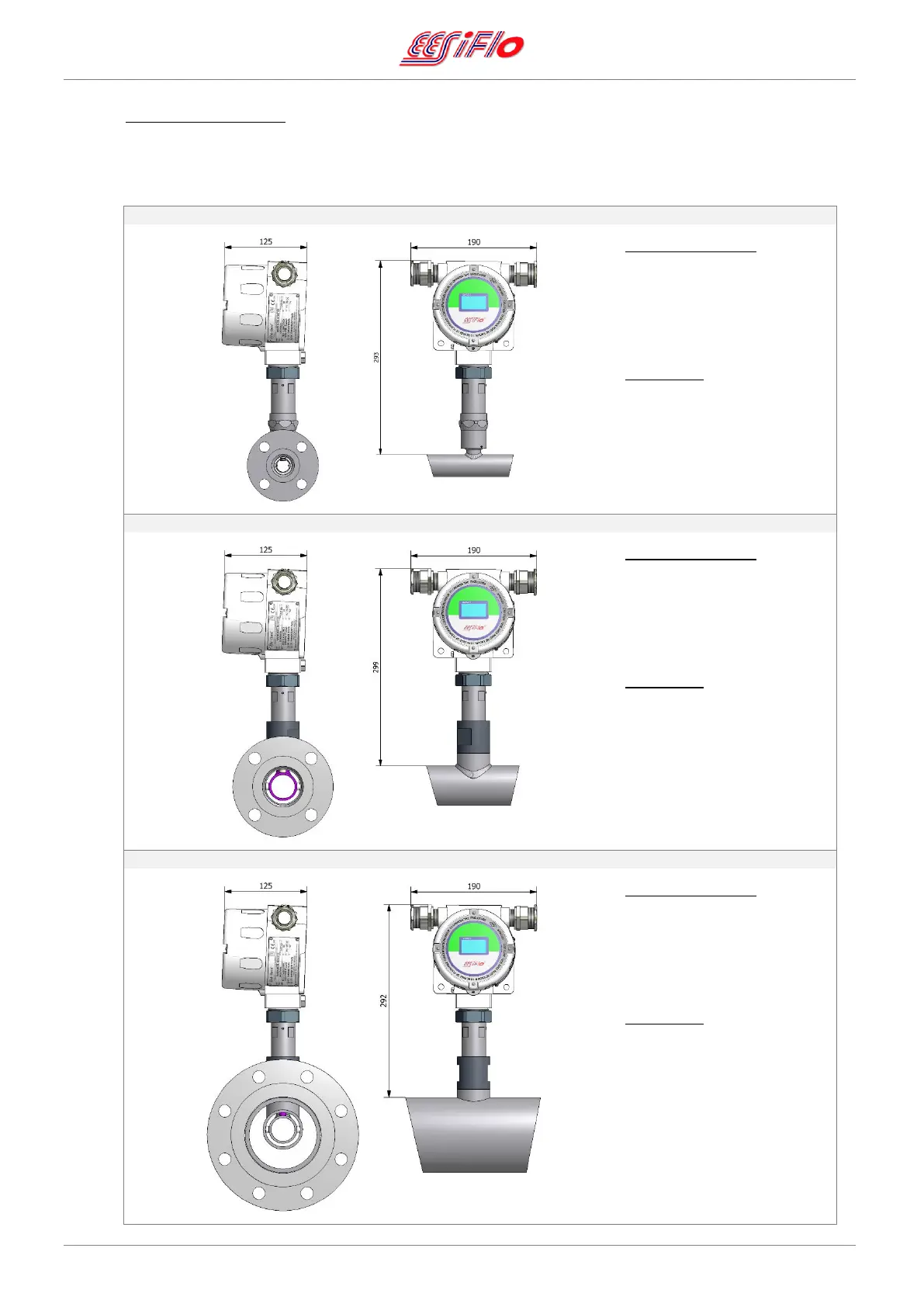

2.4.2. Installation Dimensions
The body of the EASZ-2 is standard on all units. The Sensor Pipe will vary according to customer
requirements depending on pipeline size, type of connection, built-in mixer and sampling point. Specific
drawings are provided for each order, please check your specification with the unit delivered.
Dimensions for pipes 1”
Installation Dimensions:
Width .................... 190 mm
Depth ................... 125 mm
Height ................... 293 mm
Note: height from top of pipe
Cable Glands:
Gland ................... NPT ¾
Cable .................... Ø 13 - 18 mm
Dimensions for pipes 2”
Installation Dimensions:
Width .................... 190 mm
Depth ................... 125 mm
Height ................... 299 mm
Note: height from top of pipe
Cable Glands:
Gland ................... NPT ¾
Cable .................... Ø 13 - 18 mm
Dimensions for pipes 3” … 48”
Installation Dimensions:
Width .................... 190 mm
Depth ................... 125 mm
Height ................... 292 mm
Note: height from top of pipe
Cable Glands:
Gland ................... NPT ¾
Cable .................... Ø 13 - 18 mm
