CET Electric Technology
14
2.5.3 3-Phase 3-Wire (3P3W) Direct Delta Connection with 3CTs
Please consult the serial number label to ensure that the rated system line voltage is less than or equal
to the meter’s rated line voltage input specification. Set the Wiring Mode to 3P3W.

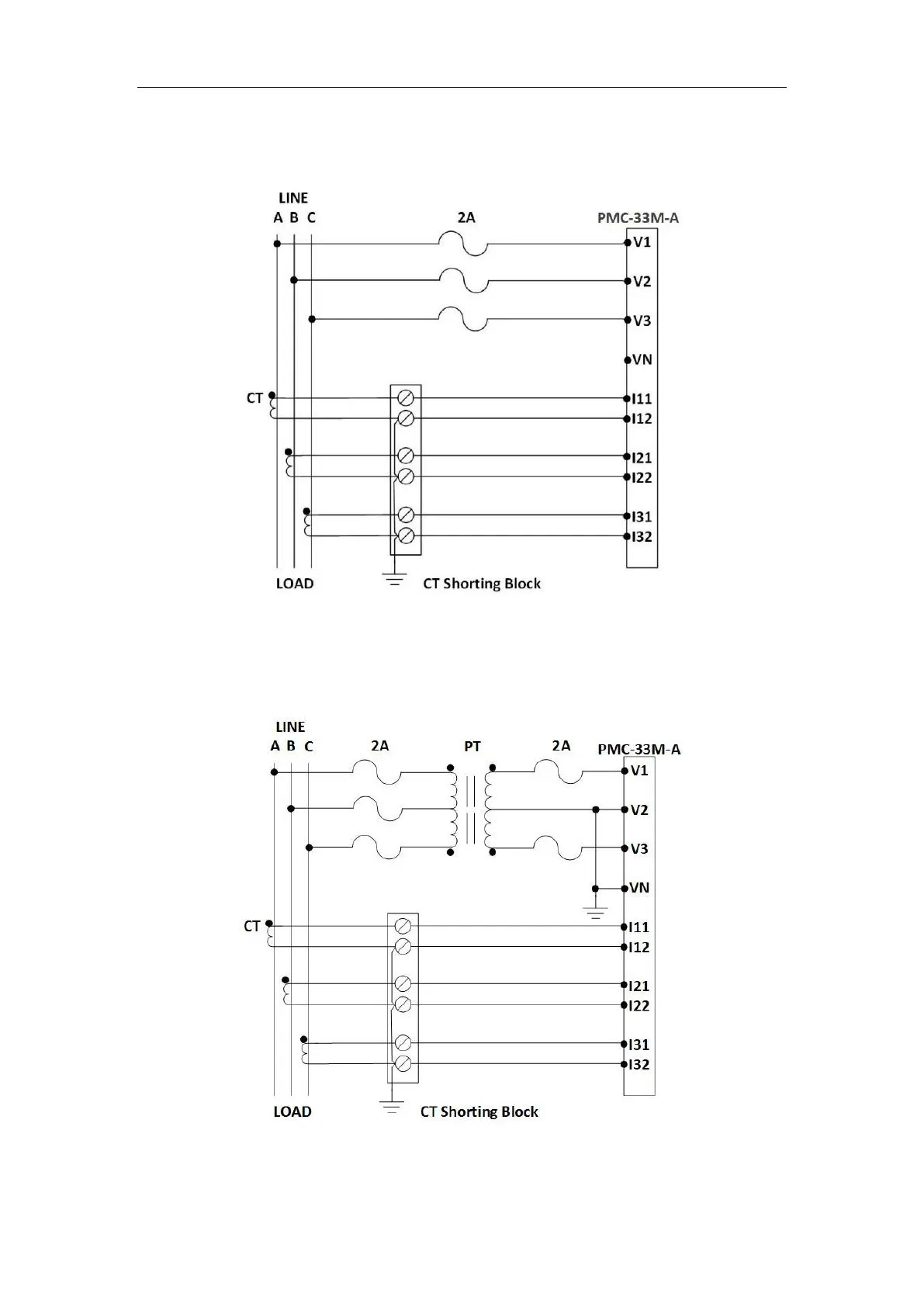

Figure 2-7 3P3W Direct Connection with 3CTs
2.5.4 3-Phase 3-Wire (3P3W) Delta with 2PTs and 3CTs
Please consult the serial number label to ensure that the rated PT secondary voltage is less than or
equal to the meter’s rated phase voltage input specification. Set the Wiring Mode to 3P3W.
Figure 2-8 3P3W Delta with 2PTs and 3CTs
