2.8 Digital Output Wiring

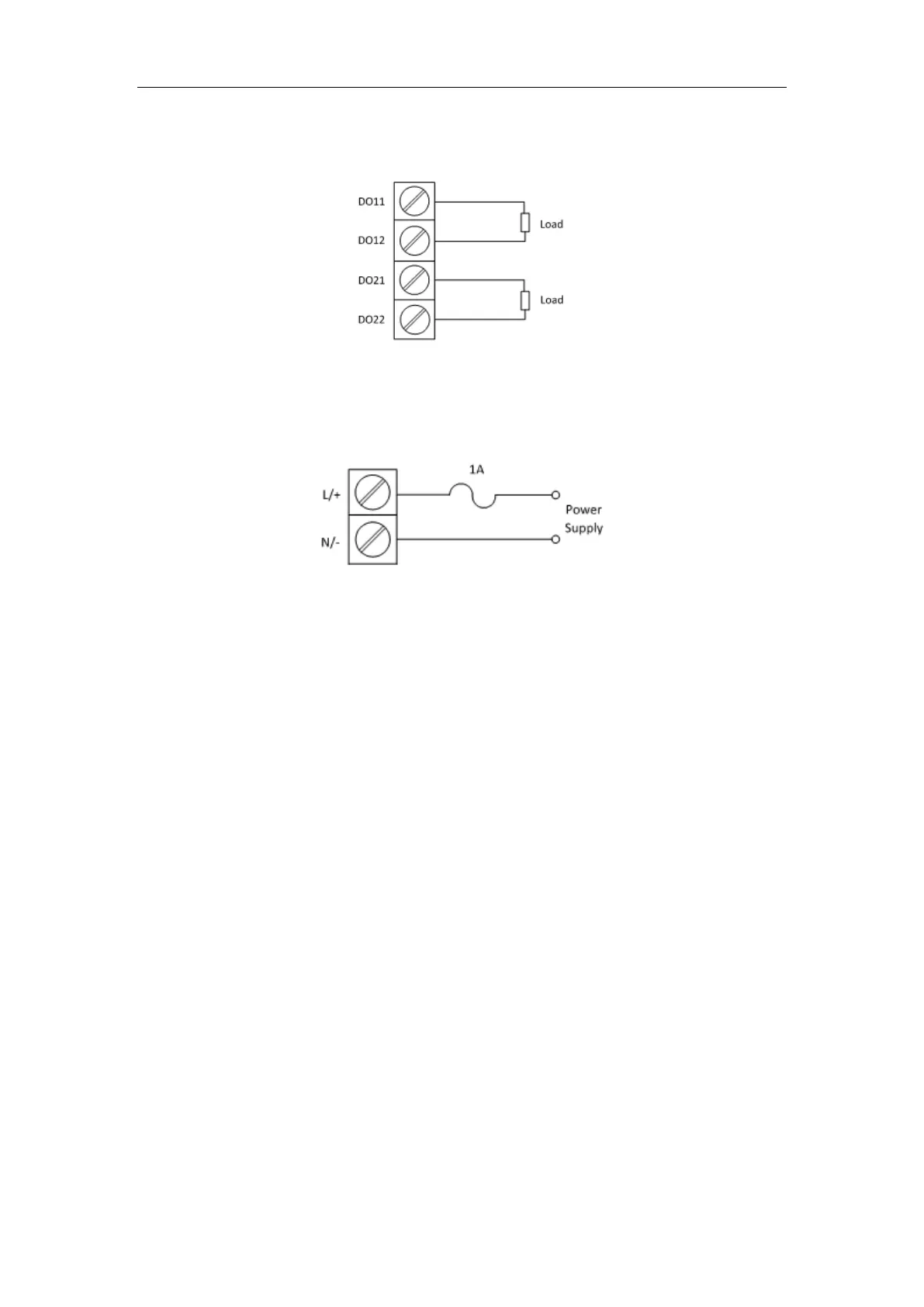

The following figure illustrates the Digital Output connections on the PMC-33M-A:
Figure 2-16 DO Connections
2.9 Power Supply Wiring
For AC supply, connect the live wire to the L/+ terminal and the neutral wire to the N/- terminal.
For DC supply, connect the positive wire to the L/+ terminal and the negative wire to the N/- terminal.
Figure 2-17 Power Supply Connections
