EET PMC-33M-A - 3-Phase 3-Wire (3 P3 W) Direct Delta Connection with 2 Cts; 3-Phase 3-Wire (3 P3 W) Delta with 2 Pts and 2 Cts

CET Electric Technology
15
2.5.5 3-Phase 3-Wire (3P3W) Direct Delta Connection with 2CTs
Please consult the serial number label to ensure that the rated system line voltage is less than or equal
to the meter’s rated line voltage input specification. Set the Wiring Mode to 3P3W.

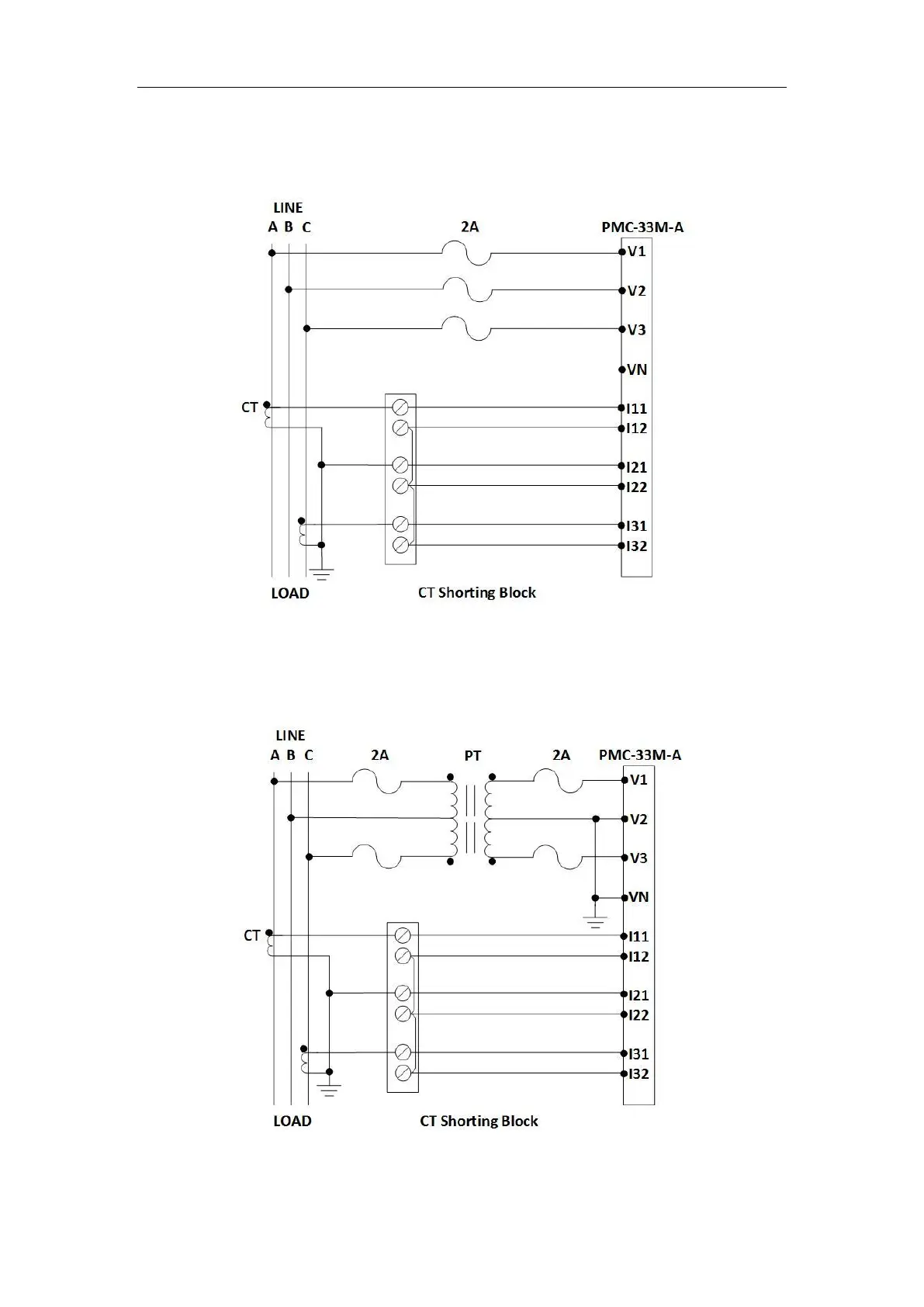

Figure 2-9 3P3W Direct Connection with 2CTs
2.5.6 3-Phase 3-Wire (3P3W) Delta with 2PTs and 2CTs
Please consult the Serial Number Label to ensure that the rated PT secondary voltage is less than or
equal to the meter’s rated phase voltage input specification. Set the Wiring Mode to 3P3W.
Figure 2-10 3P3W Delta with 2PTs and 2CTs
