E F A P O W E R EV- H C - I N S T A L L A T I O N A N D U S E R M A N U A L
9 | 28
5.2 SITE PREPARATION
Once the local conditions are verified is time to set up the site in order to be ready for the installation of the
EFAPOWER EV-HC Station.
5.2.1 UPSTREAM WIRING INFORMATION
The power feeding of the EFAPOWER EV-HC with origin on the LVDB (low voltage distribution board) must be
done with dedicated wiring (line(s), neutral and earth conductors only used to supply the equipment) and
protected by a circuit breaker and a voltage suppressor, please refer Figure 7 and Figure 8.
Depending on the output of the Unit, we can have several scenarios for the circuit breaker to be installed in the
distribution board for each Unit. The appropriate circuit breaker is represented in Table 3.
NOTES
Unless it’s required by local code it’s not necessary to install a residual-current device (RCD) for
EFAPOWER EV-HC Station as it is already installed inside the unit.
Circuit Breaker 20A 1P C
Circuit Breaker 40A 1P C
Circuit Breaker 20A 3P C
Circuit Breaker 40A 3P C
Table 3 - Overcurrent protection upstream

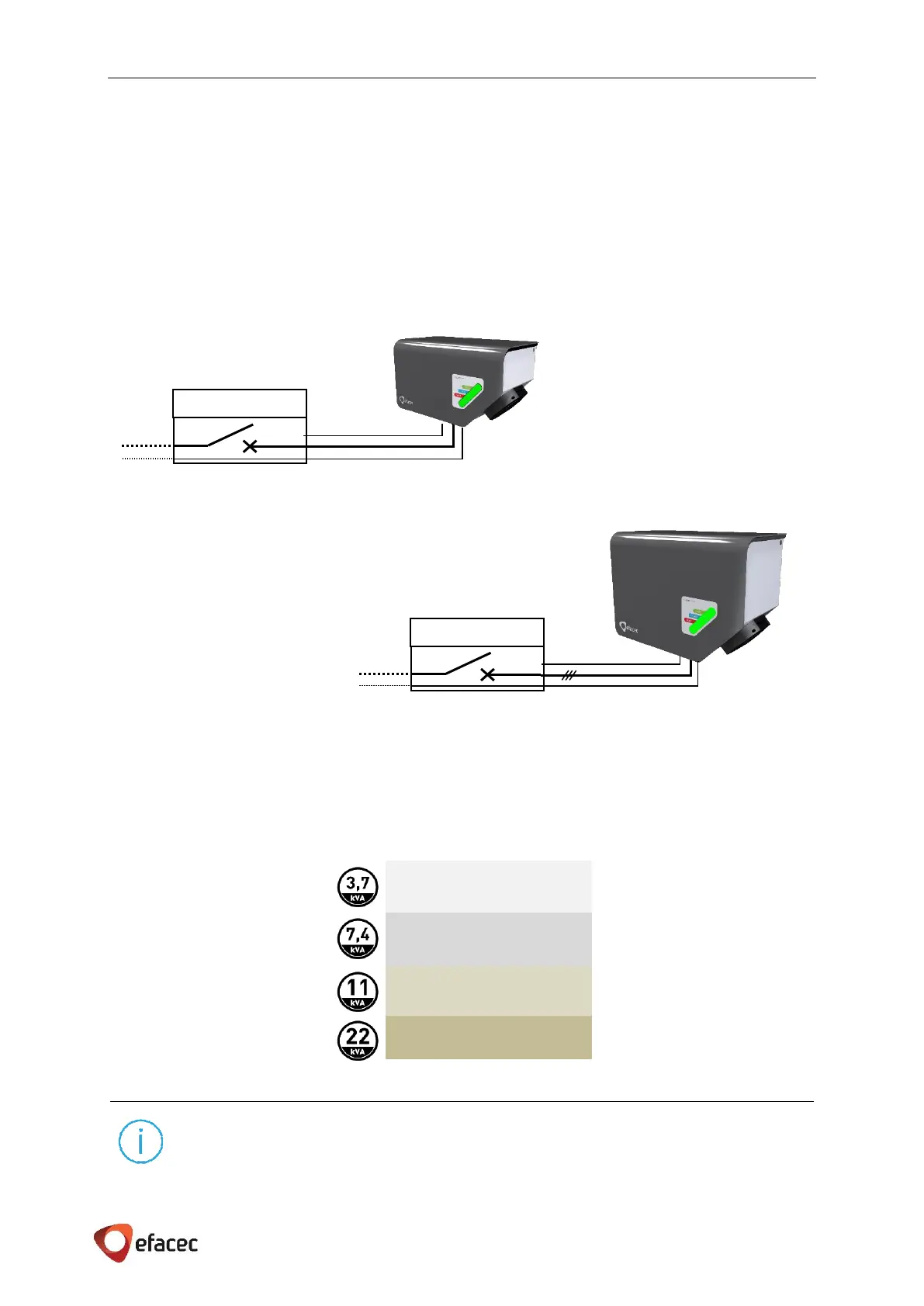

Figure 7 - EFAPOWER EV-HC 3 / 7 Wiring Information
Figure 8 - EFAPOWER EV-HC 11 / 22 Wiring Information
Distribution Board
Ground
Neutral
Distribution Board
Ground
Neutral
