E F A P O W E R EV- H C - I N S T A L L A T I O N A N D U S E R M A N U A L
12 | 28
5.3.4 PLACING
5.3.4.1 FIXING ON THE WALL
Each unit must be installed by using 3 (three) screw anchors, M4 – length must comply with local codes.
The fixation of the EV-HC should assure that no part of it is under 0,8m or above 1,5m from ground thus
permitting a comfortable handling of the equipment and charging cable.
Mounting steps:
1. Unscrew the lid
All 4 screws must be untighten to take off the lid.
2. Disconnect the lid
The lid shall not be hanging on the wires!
a. Unplug the earth cable on it (faston terminal)
b. Unplug the flat cable on the board (X14)
c. Unplug the card reader cable on the board (X6) – if applicable
3. Fix the Unit to the wall (use the drilling layout template)
In the following figures some details are shown regarding the drilling layout for both boxes.
Only 3 (three) points are needed to fix each Unit on the wall (marked with a red circle) with M4 bolt.
To make easier the wall mounting, a drilling layout template, 1:1 scale, is supplied with the unit.
Additional 2 (two) screws and matching anchors are need if the EV-HC has charging cable (for cable
holder).

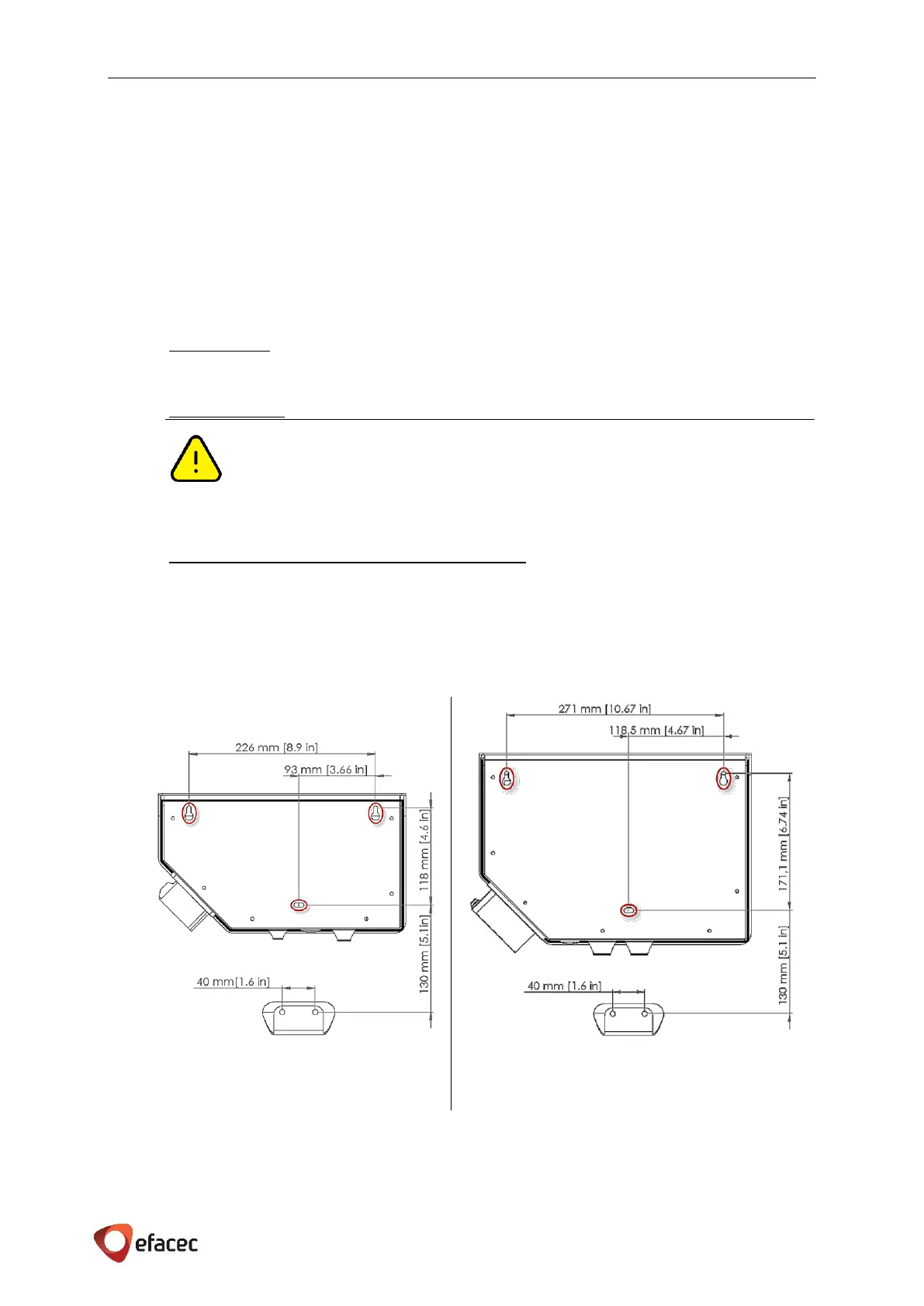

Figure 10 - EFAPOWER EV-HC 3 / 7 Drilling Layout
Figure 11 - EFAPOWER EV-HC 11 / 22 Drilling Layout
