3 PRODUCT PARTS PRESENTATION
EFAPOWER EV-HC is composed by a standalone box with one output. Its codification is presented below.
EFAPOWER EV-HC has two boxes depending on the power rate. For 3,7kVA and 7,4kVA the box is represented
in Figure 3.
CE marked units can be supplied with socket or cable and GB marked units are supplied only with cable.
In Figure 4 is presented the box for 11kVA and 22kVA.
Figure 2 - EFAPOWER EV-HC Codes

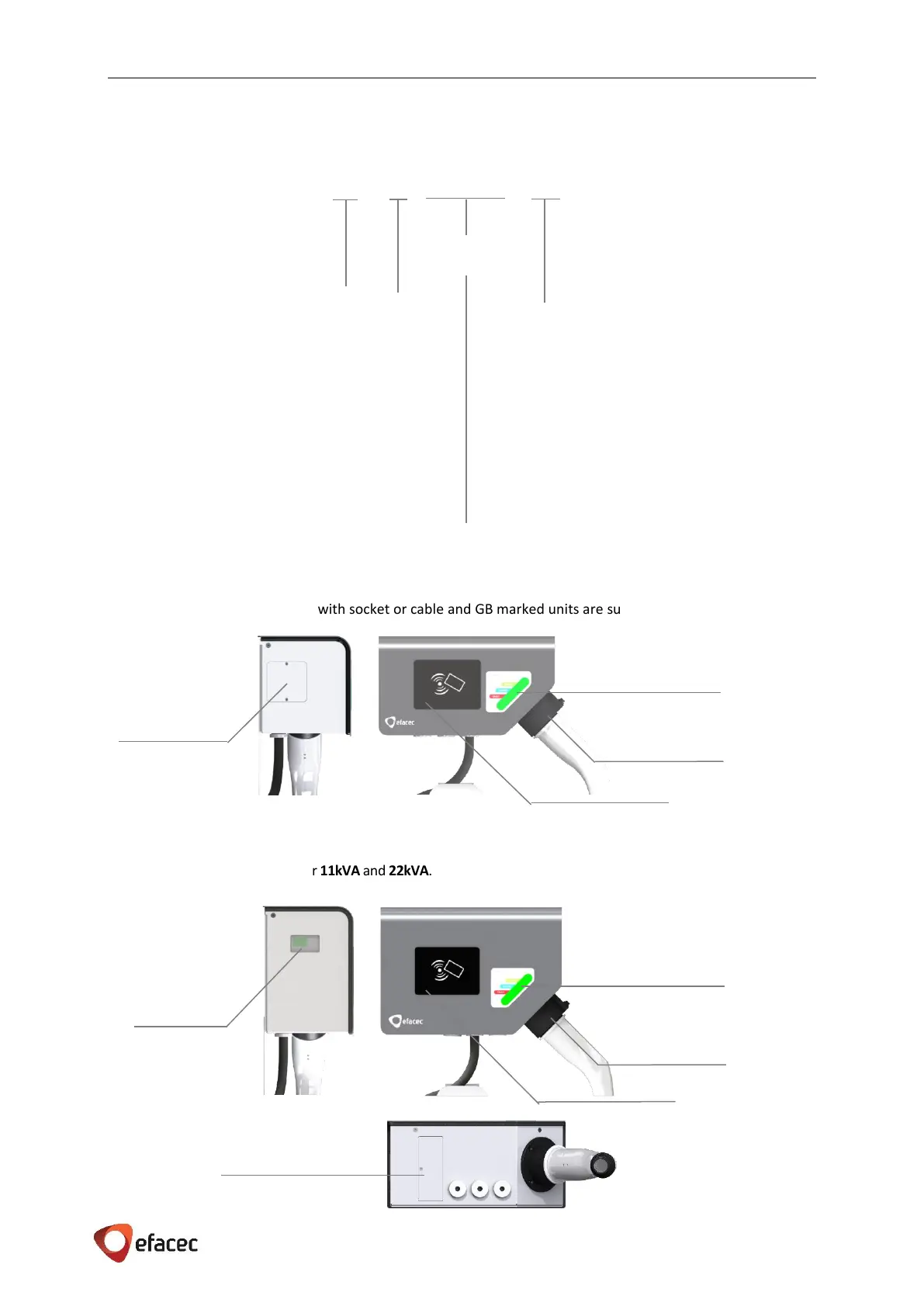

Figure 3 - EFAPOWER EV-HC 3 / 7 Parts
RFID (if applicable)
Output connection
(3,7kVA – 7,4kVA)
Output
signaling
Meter (if applicable)
RCD and
CB (if applicable)
left side
front side
EV-XX G3 YY 0F-00-G-KK ZZP
ZZ
Meter
MS
Simple Meter
--
wo Meter
P
Card Reader
C
RFID
--
wo Card Reader
0F
Number of Phases
1F
One-phase
3F
Three-phase
00
Current
16
16 A
32
32 A
G
Plug/Socket
P
Plug
S
Socket
KK
Mode
T2
Type T2
GB
Type GB
Home Charger 3kW –
HC3
Home Charger 7kW –
HC7
Home Charger 11kW –
HC11
Home Charger 22kW –
HC22
Figure 4 - EFAPOWER EV-HC 11 / 22 Parts
RFID (if applicable)
Output connection
(11kVA – 22kVA)
Output
signaling
Meter
(if applicable)
left side
front side
RCD and
CB (if applicable)
bottom side
CE European markets
GB China market
