E F A P O W E R EV- H C - I N S T A L L A T I O N A N D U S E R M A N U A L
22 | 28
7.1.4 TYPE 2 OUTLET
Mode 3
7.2 OPERATION
When a user intends to start an operation on the EFAPOWER EV-HC, one of the following LEDs color is presented.
Each LEDs color stands for a stage:
*In case of Fault, please refer to chapter 8.2.
7.2.1 OPERATION SEQUENCES (FOR EV-HC WITHOUT AUTHENTICATION)
The green light (Ready) indicates the EV-HC is ready to be connected to a vehicle.
In the following figure is represented the operation sequence to start charging.

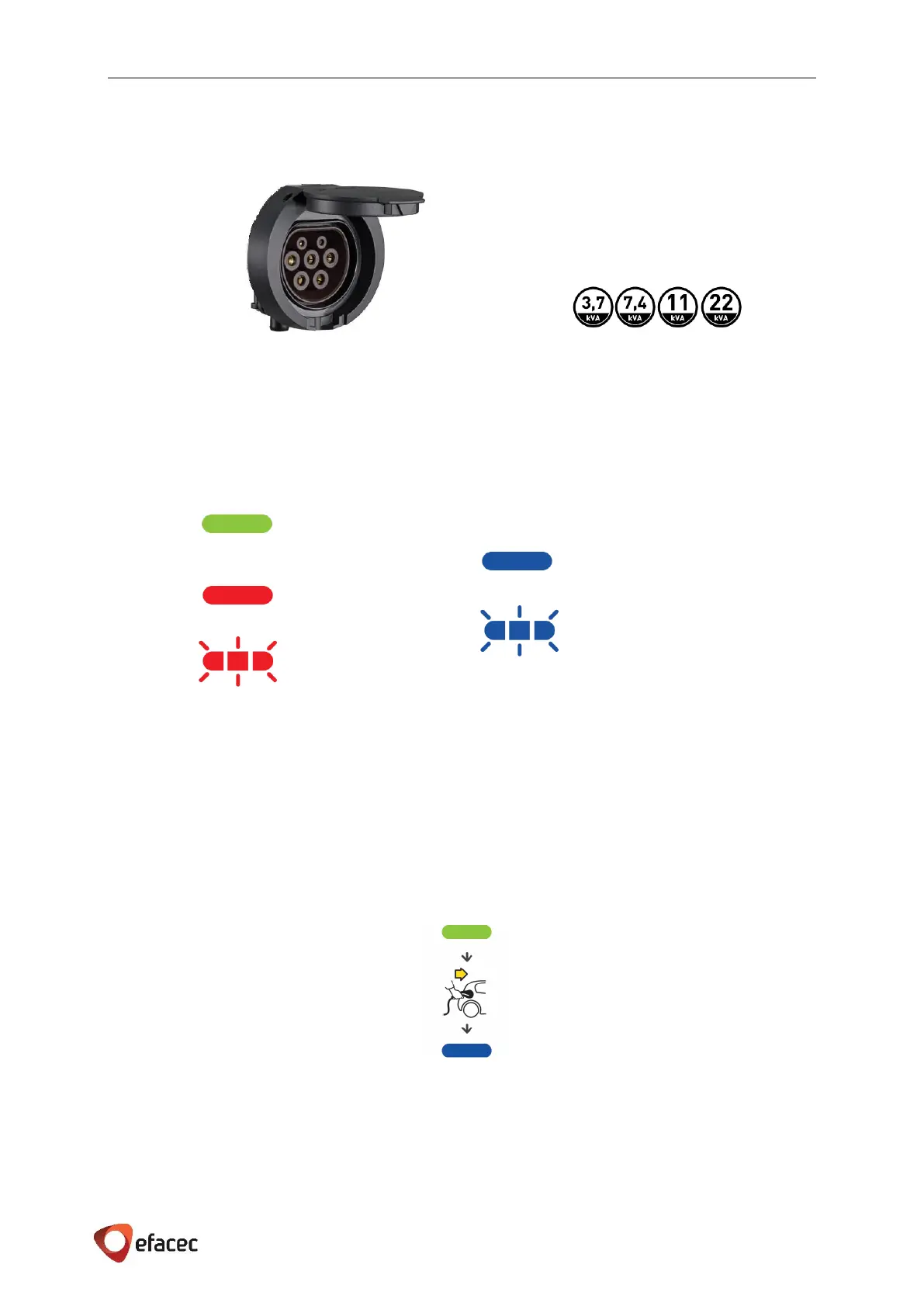

Figure 25 - Mode 3 Type 2 Outlet
This connector is available for the
following power rates on CE
marked units:
Figure 26 - EFAPOWER EV-HC Stages
Figure 27 - EV-HC from Ready to Charge sequence (without authentication)
Charge
Waiting for connection, or
Charge ended, or
Charge paused by vehicle
Ready
Fault */Charge
Stop
Unauthorized
card / Fault*
