7.2.2 OPERATION SEQUENCES (FOR EV-HC WITH AUTHENTICATION)
For an EV-HC with authentication, the operation sequences are slightly different. Nevertheless, the lights have
the same meaning.
The green light stands for a charging station ready to charge. In the following figure is represented the sequence
to start charging.
The blue light indicates that the station is charging.
At this stage, only the same authentication ID, used to start the charge, will be able to stop charging. There are
two ways to stop charging: starting with authentication or by disconnecting the cable from the car. In the
following figure are the sequences for each method.
NOTE: If the user left the station charging and when returned light is blinking blue or red, the user has to
authenticate itself and the led should turn green unlocking the cable to be disconnected. If the led
turns/remains red, please refer to the chapter 8.2.

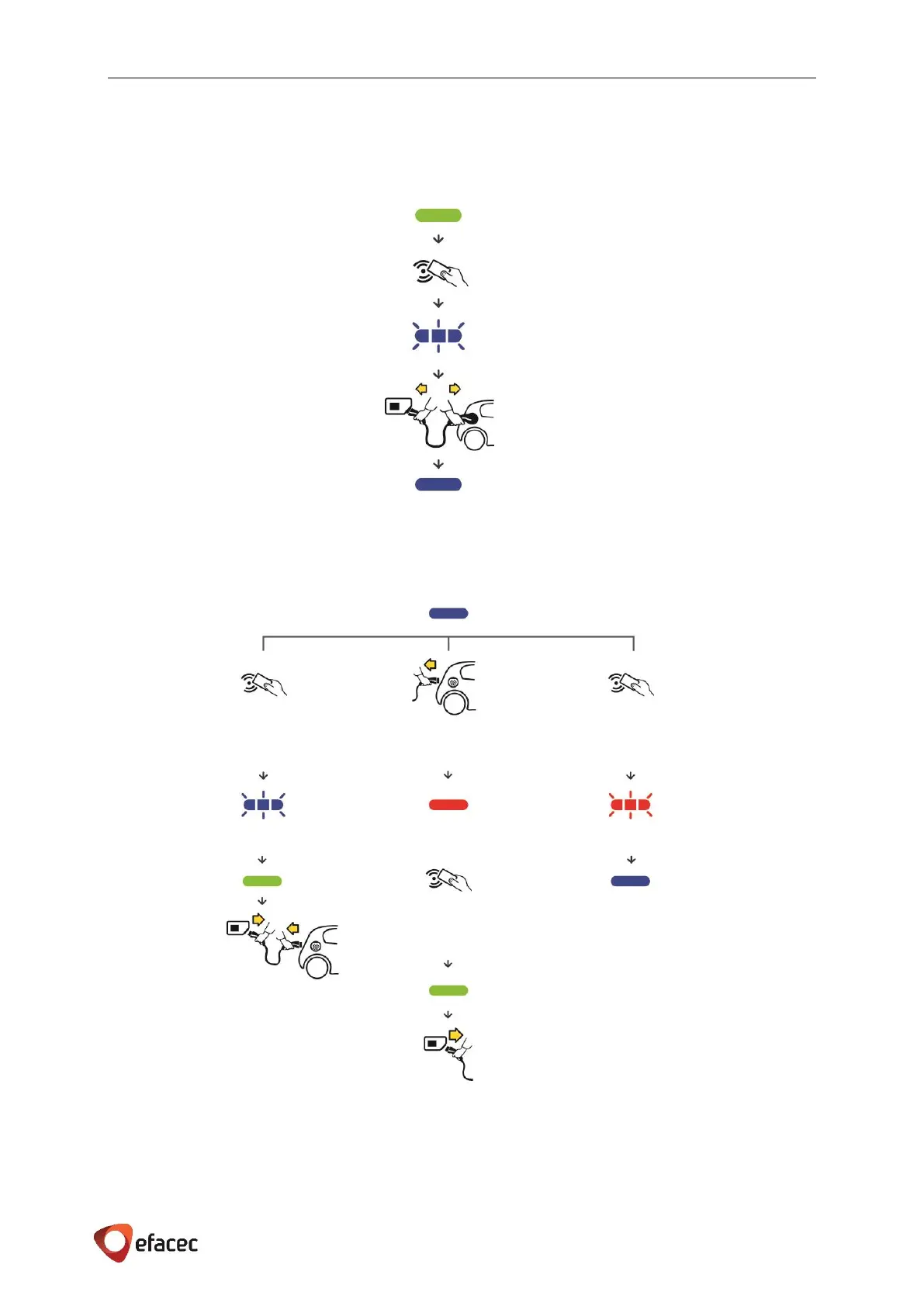

Figure 29 - EV-HC from Ready to Charge sequence (with authentication)
Figure 30 - EV-HC from Charge to Ready sequence (with authentication)
Card ID that started the
charging session
Card ID that started the
charging session**
Disconnect from the car
Different Card ID
Stop charging
Stop charging
Continue charging
Disconnect from the EV-HC
**If the EV-HC has its own
charging cable, from red light
goes directly to green (ready to
use).
