5.3.3 HANDLING
Due to its heavy weight, 4 (four) lifting hooks are provided on the top of the Power Cabinet as indicated on
Figure 8.
I IMPORTANT:
Never try to move the power cabinets by using tools under panels; this will create a risk of deformation.

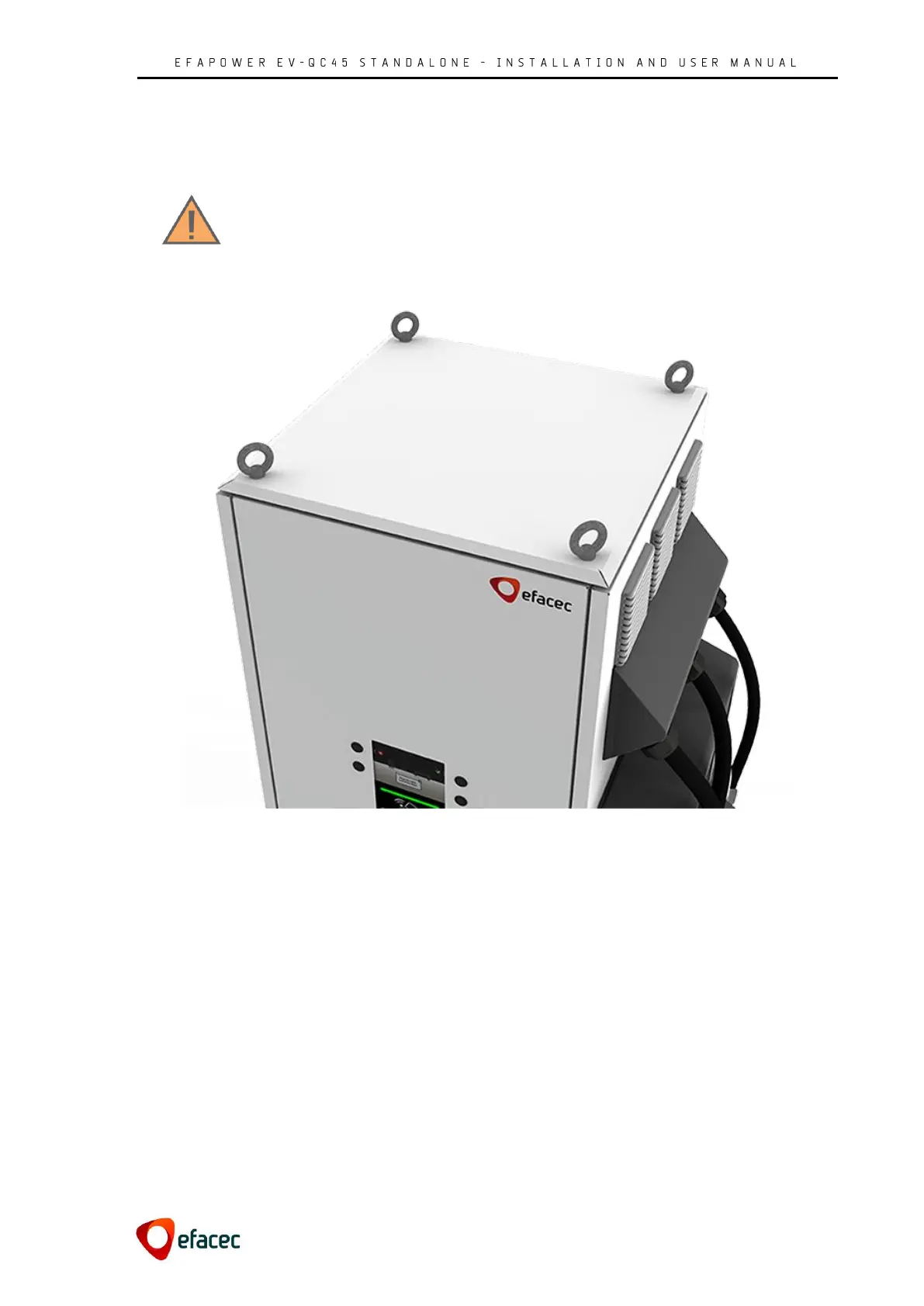

Figure 8 - EFAPOWER EV-QC45 lifting hooks
After the power cabinet is placed, the lifting hooks must be removed, and the M12 sealing screws must be
inserted in their holes in order to guarantee the IP54, IK10 (NEMA 3R) protection degree.
5.3.4 PLACING
5.3.4.1 ANCHORING TO THE CONCRETE PAD
The Quick Charging Station must be anchored on the surface compliant with the specifications mentioned in
chapter 5.2.2.
The power cabinet must be installed on a concrete pad using 4 (four) chemical anchors, M8 (5/16’’), 10mm
thread diameter – length must comply with local codes, but must have at least 120mm (5”).
In the following figure some details are shown regarding the drilling layout for the Power Cabinet.
Only 4 (four) points are needed to anchor the Unit on the concrete pad (marked with a red circle).
