efacec EFAPOWER EV-QC45 - AC Connector; AC Outlet

21/32
Combo T1
7.1.3 AC CONNECTOR
Type 2
7.1.4 AC OUTLET
Mode 3

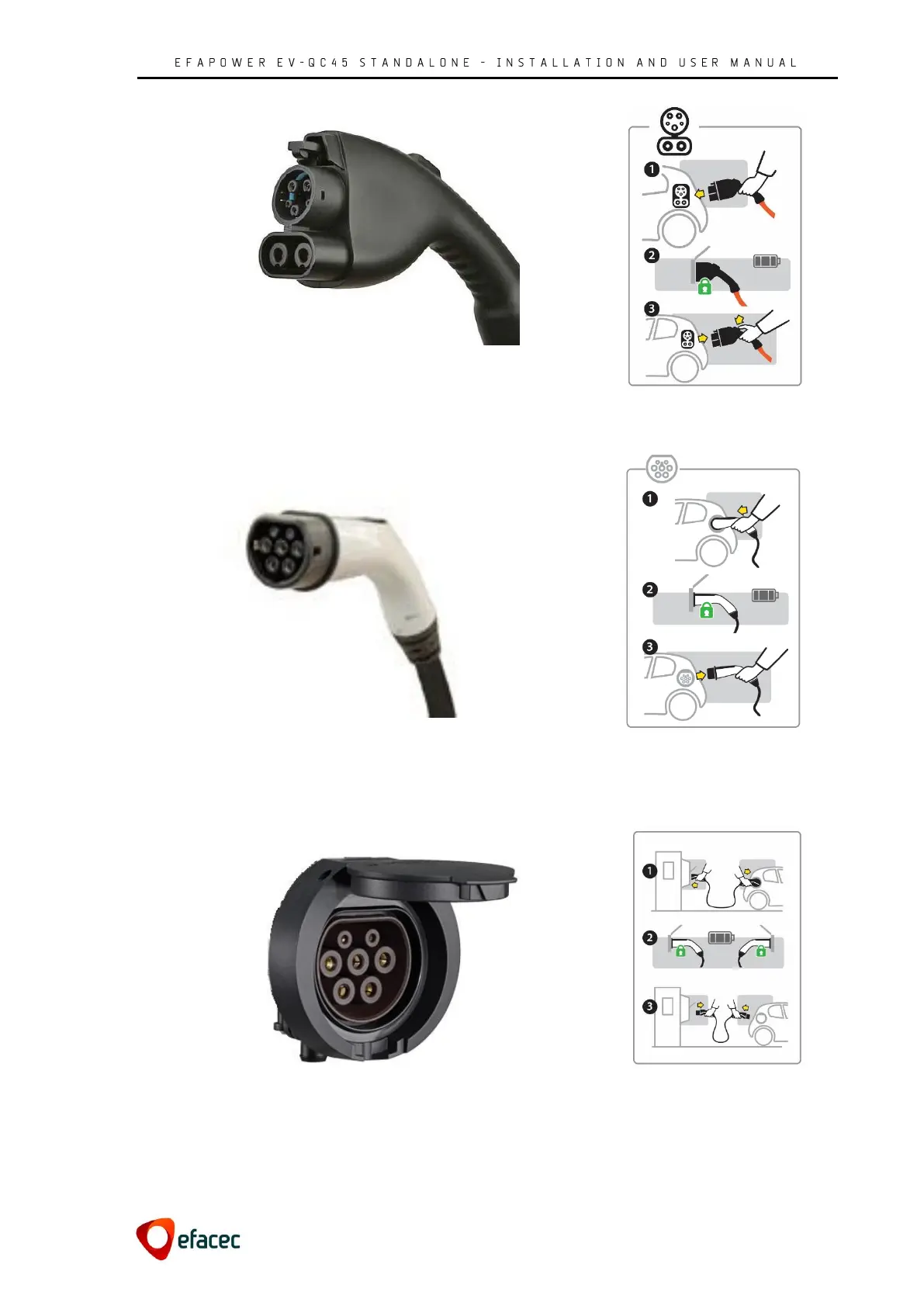

Figure 30 - Combo T1 Connector
Figure 31 - Combo T1 Handling
Figure 32 – Type 2 Handling
Figure 34 – Connector for AC22 Handling
Figure 33 – Type 2 Connector
Figure 35 - Mode 3 Outlet
