5.3.4.2 POWER CABLES CONNECTION

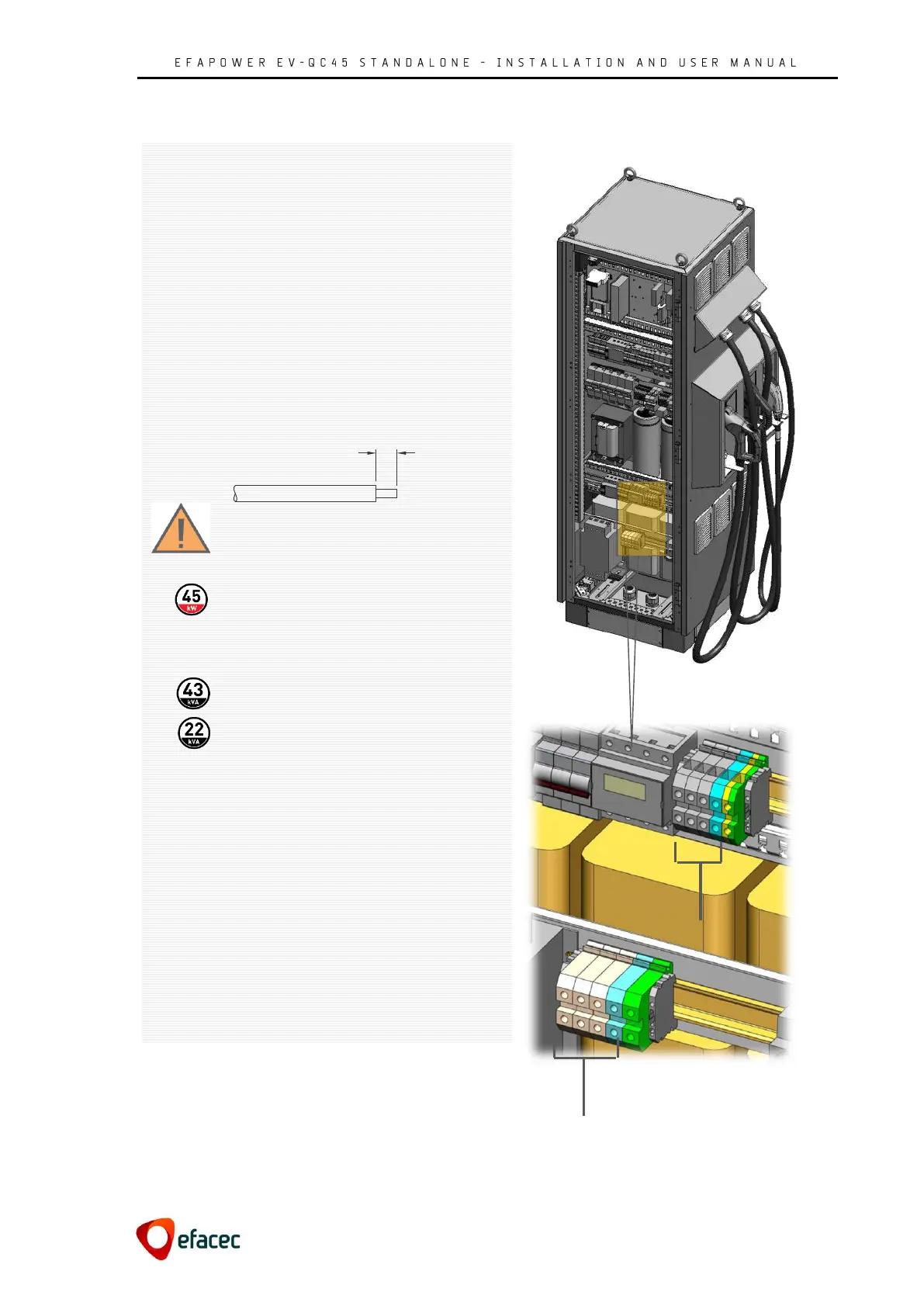

Figure 10 - EFAPOWER EV-QC45 Input Terminals
The connection to the AC input terminals of each Quick
Charger Station is accessed through the bottom of the
cabinet:
 X1 – MUST BE CONNECTED regardless of the
EFAPOWER EV-QC45 configuration
(35mm
2
terminal blocks)
 X11 – Must be connected if AC OUTPUT is available
(16mm
2
terminal blocks)
Strip wires 24 mm (0.94”), crimp the end terminal and
insert into the terminal block as shown, and tighten
screws between 3.2 N.m (28.3 inch-lbs) and 3.7 N.m
(32.7 inch-lbs).
IMPORTANT:
 Always requires dedicated 80A circuit . .
. breaker 3P C curve
 If AC output available, additional circuit breaker is
needed:
80A circuit breaker 3P C curve, or
40A circuit breaker 3P C curve
 Use copper conductors only
 Before starting to work on the Quick Charger
Station, connect the ground wire to the ground
terminals of the Quick Charger Station
 In areas with frequent thunder storms, we advise to
add transient voltage surge suppression (TVSS) at
the service panel for all circuits
 All bolts/nuts must be sealed
Strip length 0.94”
24mm
X11
X1
