U S E R M A N U A L E P S - D
Technical specifications and data are subject to change without any prior notice.
16

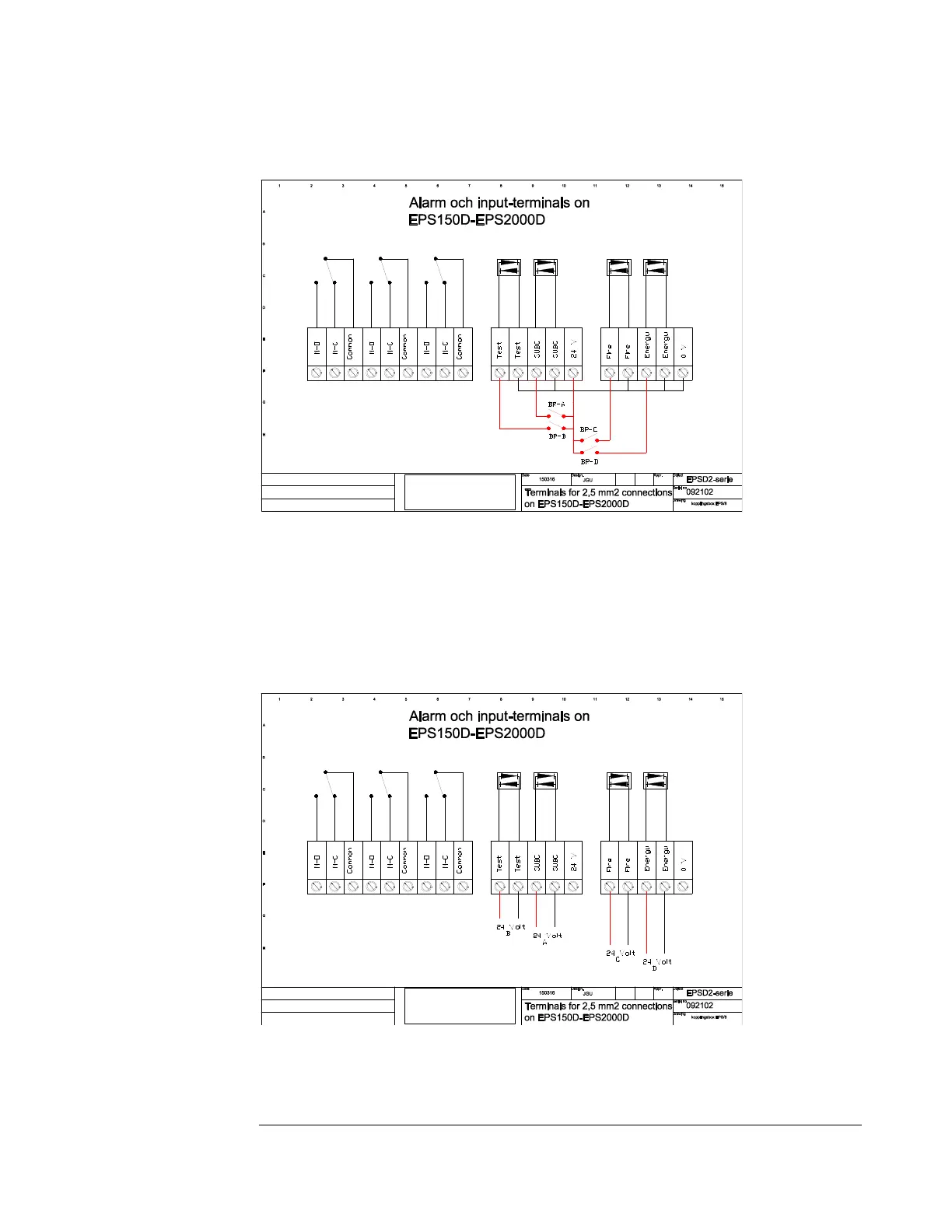

Example B-1
BR-A: For sub-centrals. Closing of the switch activates all the outputs.
BR-B: For testing. Closing of the switch activates all the outputs.
BR-C: For fire-alarm. Closing of the switch activates all the outputs.
BR-D: For energy-save. Closing of the switch deactivates all the outputs.
Example B-2
24V-A: For sub-centrals. External 24 Volts activates all the outputs.
24V-B: For testing. External 24 Volts activates all the outputs.
24V-C: For fire-alarm. External 24 Volts activates all the outputs.
24V-D: For energy-save. External 24 Volts deactivates all the outputs.
