EFKA DA320G5351
30
Supplier Level
Code no. 311 with control operation
Code no. 3112 with control panel operation
= 0V
OUT
OUT
OUT
OUT
ST2
IN
POS1
ST2/21
POS2
POS2
ST2/20
POS1
ST2/21
ST2/20
POS2
ST2/21
POS1
ST2/20
POS1
ST2/20
POS
B18/7
ST2/21
POS2
SEN
= high
0256/SEN- 1
Pa 271
Pa 271
Pa 271
Pa 271
360°
270 = 1270 = 3270 = 4 270 = 2
+5V
0V

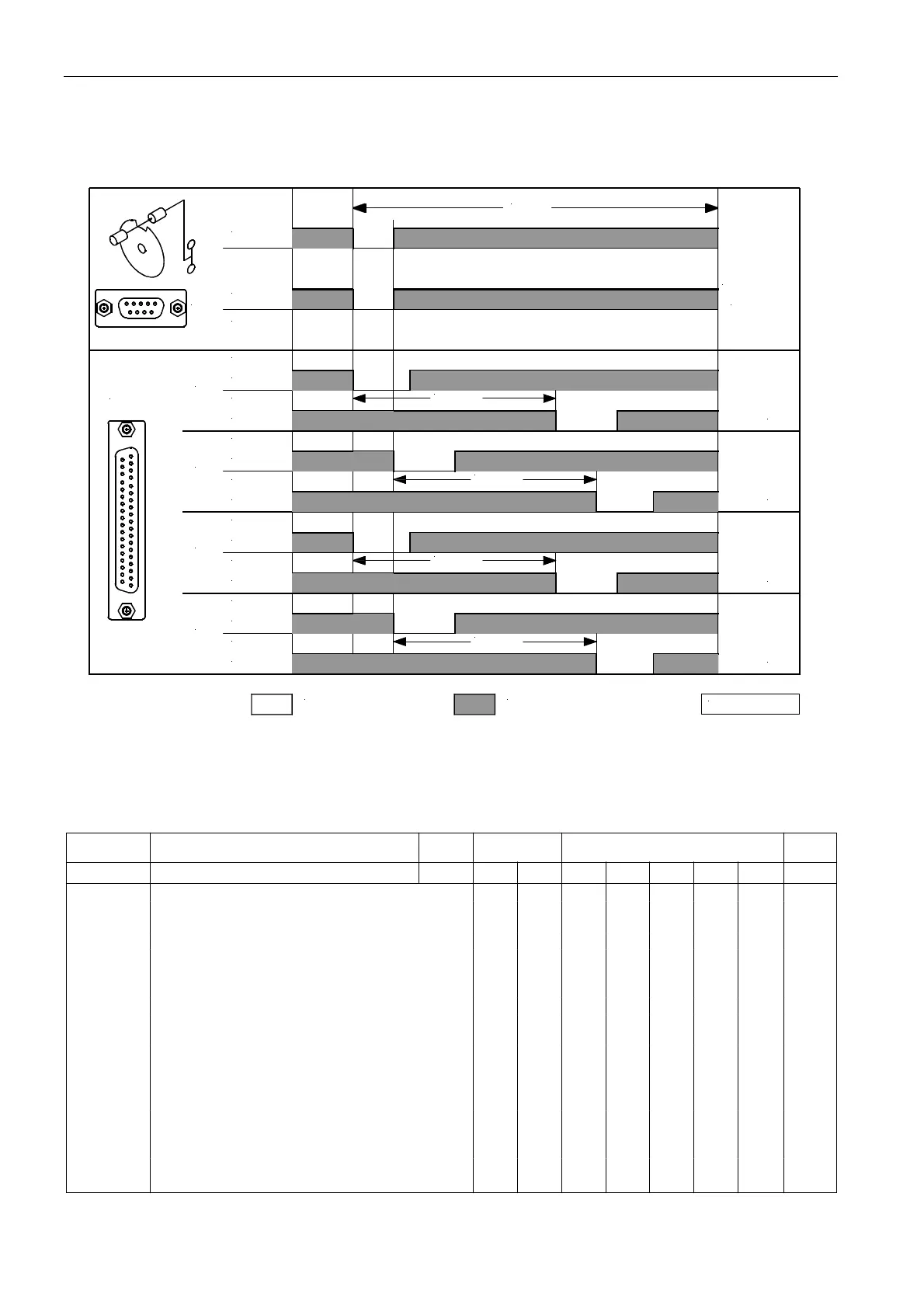

OUT (position window) = npn transistor (emitter to 0V) is conductive.
Width of position window cannot be adjusted!
Parameter Designation Unit Limits Preset for Ind.
max min 100Ω 220Ω 680Ω 1000Ω
270 PGm Selection according to the position sensors. 5 0 0 0 0 0 A
Setting of socket B18 see chapter “Connection
Diagram”
0 = Function as in table on previous page!
1 = Setting the sensor to position 2.
Set position 1 using parameter 171, starting
from trailing edge position 2.
2 = Setting the sensor to position 2.
Set position 1 using parameter 171, starting
from leading edge position 2.
3 = Setting the sensor to position 1.
Set position 2 using parameter 171, starting
from trailing edge position 1.
4 = Setting the sensor to position 1.
Set position 2 using parameter 171, starting
from leading edge position 1.
5 = No position sensor available. The drive stops
unpositioned. The thread trimmer function is
suppressed with this setting.
