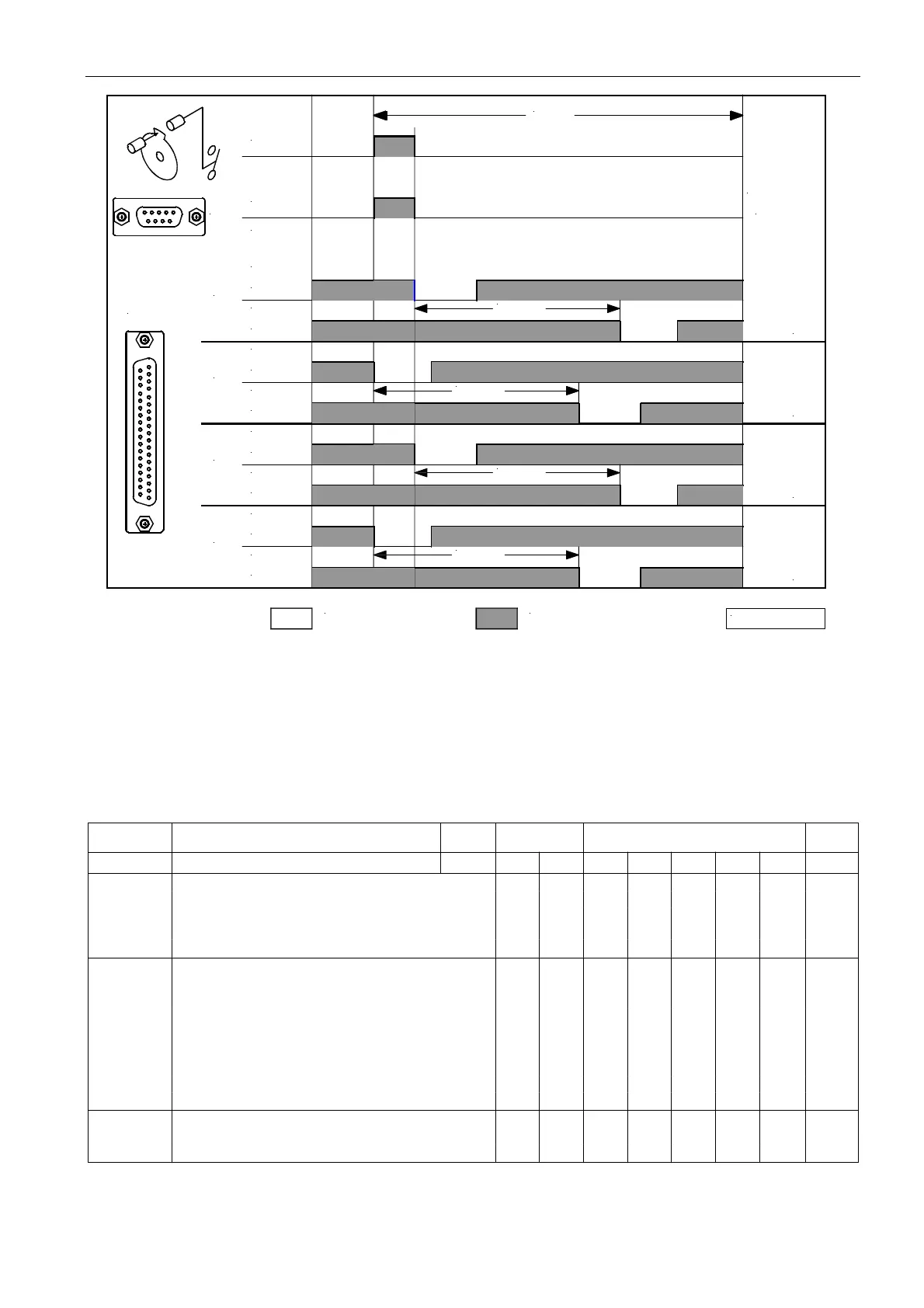

EFKA DA320G5351
31
= 0V
OUT
OUT
OUT
OUT
ST2
IN
POS1
POS2
ST2/21
POS1
ST2/20
POS2
ST2/21
ST2/20
POS2
ST2/21
POS1
ST2/20
ST2/20
POS1
POS
B18/7
POS2
ST2/21
SEN
= high
0256/SEN- 2
Pa 271
Pa 271
Pa 271
Pa 271
360°
270 = 1270 = 3270 = 4 270 = 2
+5V
0V
OUT (position window) = npn transistor (emitter to 0V) is conductive.
Width of position window cannot be adjusted!
Supplier Level
Code no. 311 with control operation
Code no. 3112 with control panel operation
Parameter Designation Unit Limits Preset for Ind.
max min 100Ω 220Ω 680Ω 1000Ω
272 trr Transmission ratio between motor shaft and 255 020 100 100 100 100 A
machine shaft (calculation formula see instruction
manual!)
Attention! The transmission ratio should be
determined and indicated as precisely as possible!
280 SEL Display of the select resistor values (socket A/1-4) 1000 100 100 220 680 1000 A **)
for the following machine series:
100Ω = 271, 272, 273, 274, 275
220Ω = 205
680Ω = 069, 267, 268, 269, 4180, 4280
1000Ω = 367, 381, 382, 467, 767, 768
If a select resistor is not connected, it is possible to
set the resistor value appropriate for the
machine using parameter 280.
281 Pd0 New sewing start after machine run blockage 1 0 1 1 1 1 A
0 = Immediate start
1 = Only with pedal in position 0 (neutral)
**) When programming the 3-digit or 4-digit control parameter values (without control panel), the 2-digit or 3-digit
value displayed must be multiplied by 10.
