Parallel Function
1. Introduction
This inverter can be used in parallel in only split phase systems. A maximum of nine units can parallel together.
The supported maximum output power is 54kW/54KVA.
*If you want to use only one breaker at the battery side for the whole system, the rating of the breaker should be
X times current of 1 unit. “X” indicates the number of inverters connected in parallel.
Note: Use a 40A 2 Pole AC breaker for only 1 unit and install one breaker for the AC input in each inverter.
Recommended Battery Capacity
Inverters in parallel 2 3 4 5 6 7 8 9
Battery Capacity (48V) 500AH 700AH
1000AH
1200AH 1400AH 1700AH 1900AH 2100AH
2. Parallel Operation

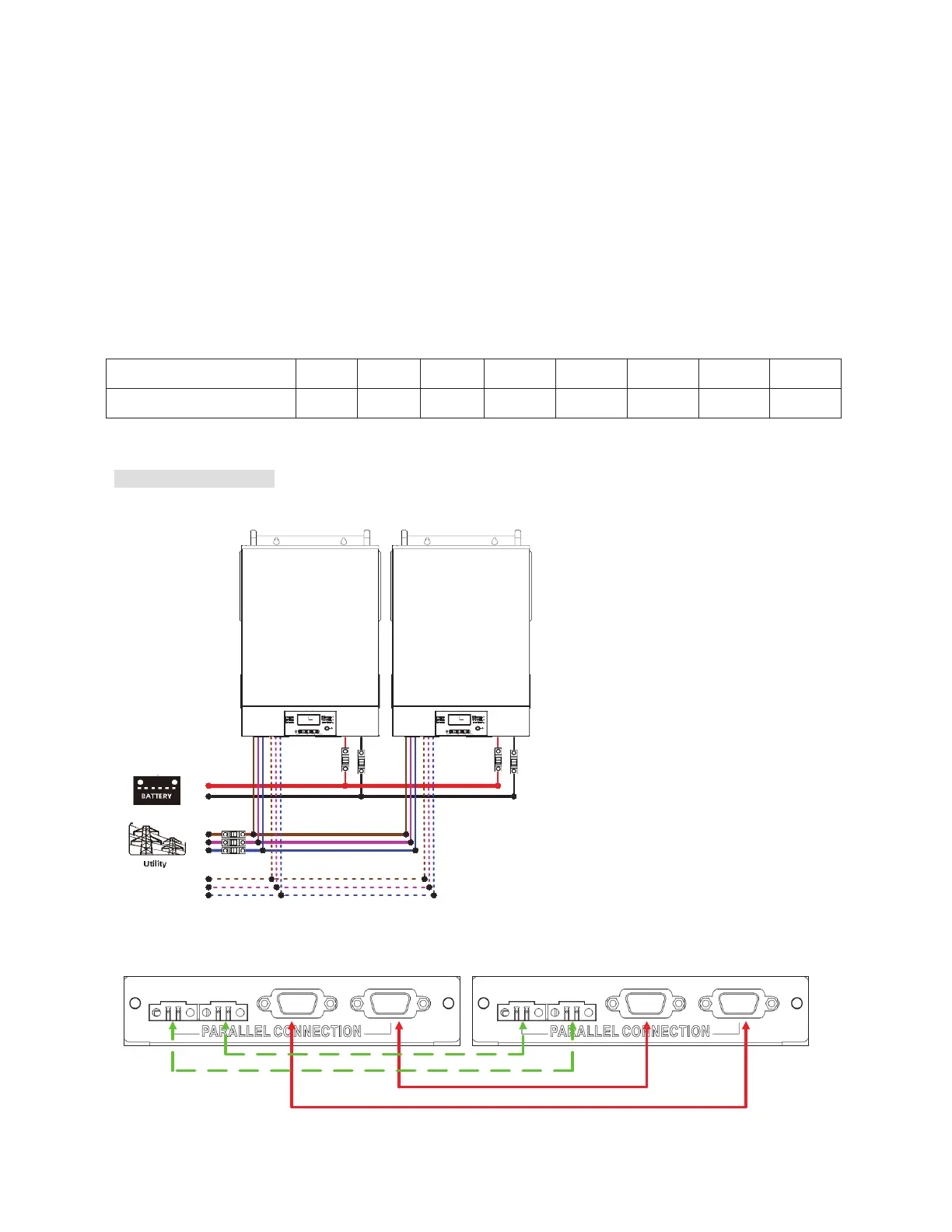

Two inverters in parallel:
Power Connection
Load
L1
L2
N
L1
L2
N
Communication Connection
ඹ
ය
:$51,1* Current sharing cables must be connected properly based on the
below diagrams. Current sharing cables are shown in green, dashed lines.
Improper connections and setup of these cables will result in damage.
To Next Page
