product operating instruction
E.G.O. Germany (E.G.O. Elektro-Gerätebau GmbH)
document id.: 90.60160.286-001-04-A / state: 230 - released
designation: Induction Gx
4.1.2 Assembly of a hob with an additional Gx induction slave generator
6-burner cooktops are a combination of a 4-burner generator and a special variant of a 2-burner
generator. Furthermore, a slave generator can be connected to a 2-burner master generator.
Consider the exemplary assembly steps of the previous chapter.
Consider the following remarks in addition:
– Perform the connection between the two generators (L, N and PE conductor).

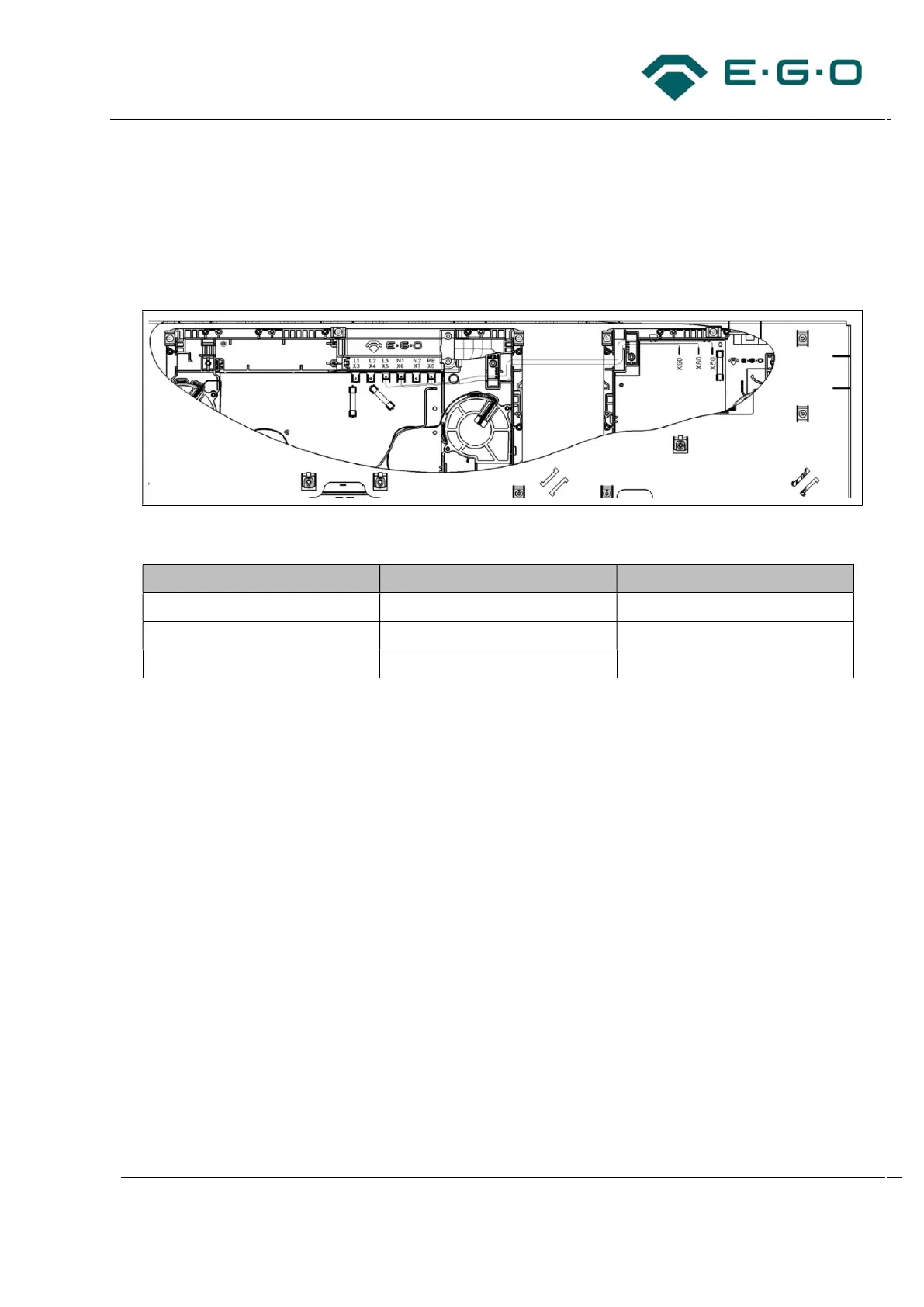

14 Exemplary connection between a 4-burner master and slave domino generator
Component Terminal Connect to
Black X5 X50
Blue X6 X80
Green-yellow X8 X90
Tab. 6: Exemplary connection between a 4-burner master and slave domino generator
– Use clamp terminal 75.177.63/01, if needed for the specific appliance design.
4.2 Electrical connection of components
This chapter is only relevant if Gx has been purchased as separate components or if repairing an
Induction Gx heating system.
The generators themselves are pre-assembled; i. e. all generator-internal parts as well as the internal
wiring (e.g., fans, filter board) have already been performed.
Preconditions
Necessary Tools:
Power screwdriver with adjustable tightening torque and Torx TX15, 20 and 25 bits
