product operating instruction
E.G.O. Germany (E.G.O. Elektro-Gerätebau GmbH)
document id.: 90.60160.286-001-04-A / state: 230 - released
designation: Induction Gx
4.3 Final steps from a system to a cooktop
The air inlet is directly on the bottom of the generator housing. Therefore, is an airgap mandatory. An
airgap under 5 mm below the induction generator must be avoided. An airgap between 5 and 10 mm,
leads to a performance decrease. Therefore, a minimum airgap of 10 mm below the generator is
recommended. In addition, an air outlet in the furniture with minimum 2 mm in the front is
recommended. A closed furniture around the induction cooktop, leads to a performance decrease. It is
important to avoid that the warm air from the outlets is easily retaken by the blower of the air inlet.
Further air gaps must be behind the furniture and between countertop and induction generator.

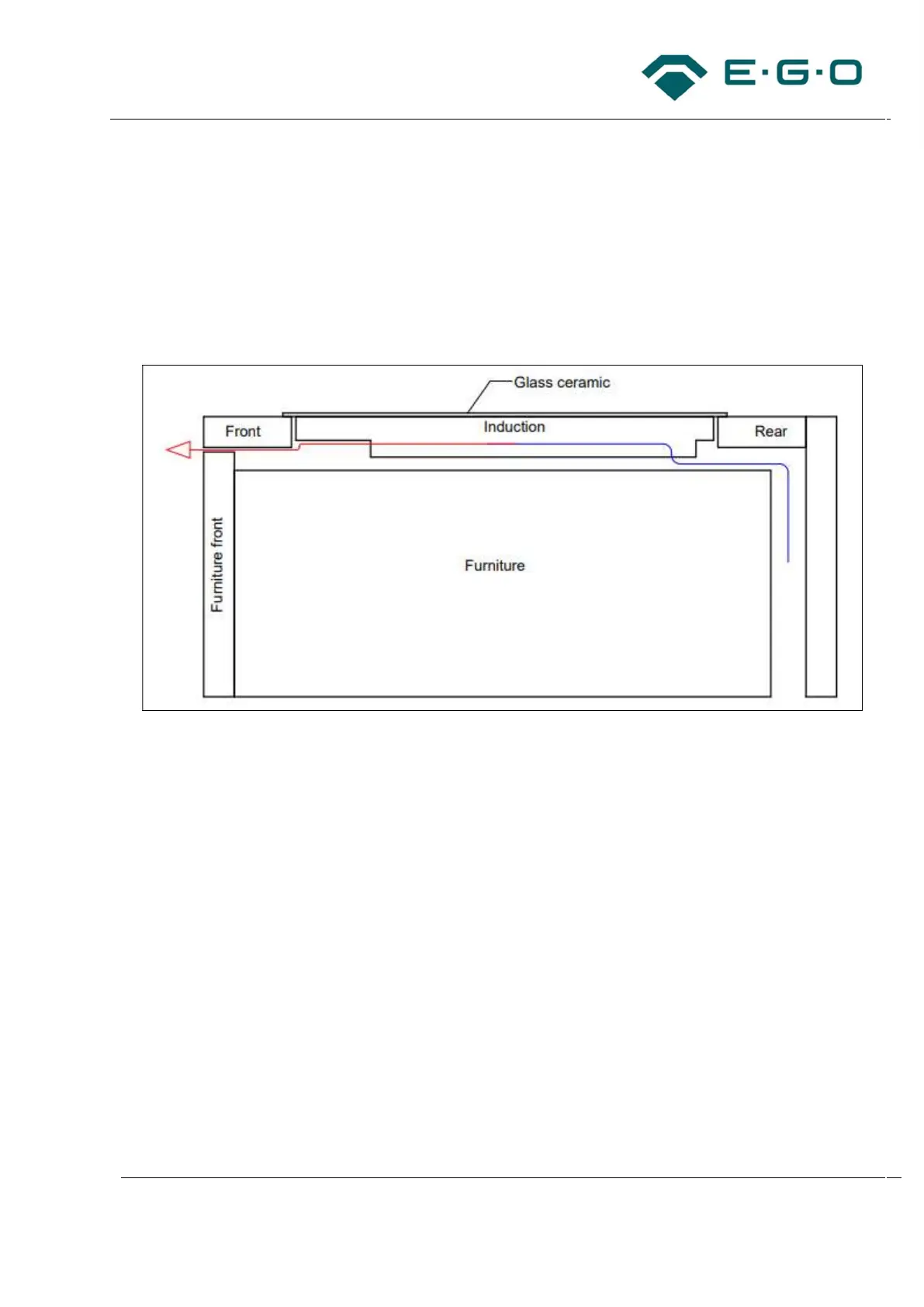

23 Exemplary air flow
Another point to note is that the appliance is only intended for appliances with a net-plug which is
constructed for the voltage of 220 – 240 V.
As the maximum permittable current of a plug is 16 A, the max. total power for modules to be used with
a plug must be limited to 3.5 kW by the user interfaces to prevent the plugs and the power cord from
any overloads. The cooktop should be connected directly to a fixed socket-outlet only. The usage of
multiple plugs is forbidden. The fixed socket-outlet must be fused with a 16 A-fuse. No other electric
devices must be connected to the same final circuit.
The connection must be carried out with a high-quality plug which is specified for 16 A current.
Another option is to use the optional domino generator with built-in socket for plug-in appliances.
A cable C21 according to IEC 60320-1 has to be used for the induction generator socket C22 according
to IEC 60320-1.
