product operating instruction
E.G.O. Germany (E.G.O. Elektro-Gerätebau GmbH)
document id.: 90.60160.286-001-04-A / state: 230 - released
designation: Induction Gx

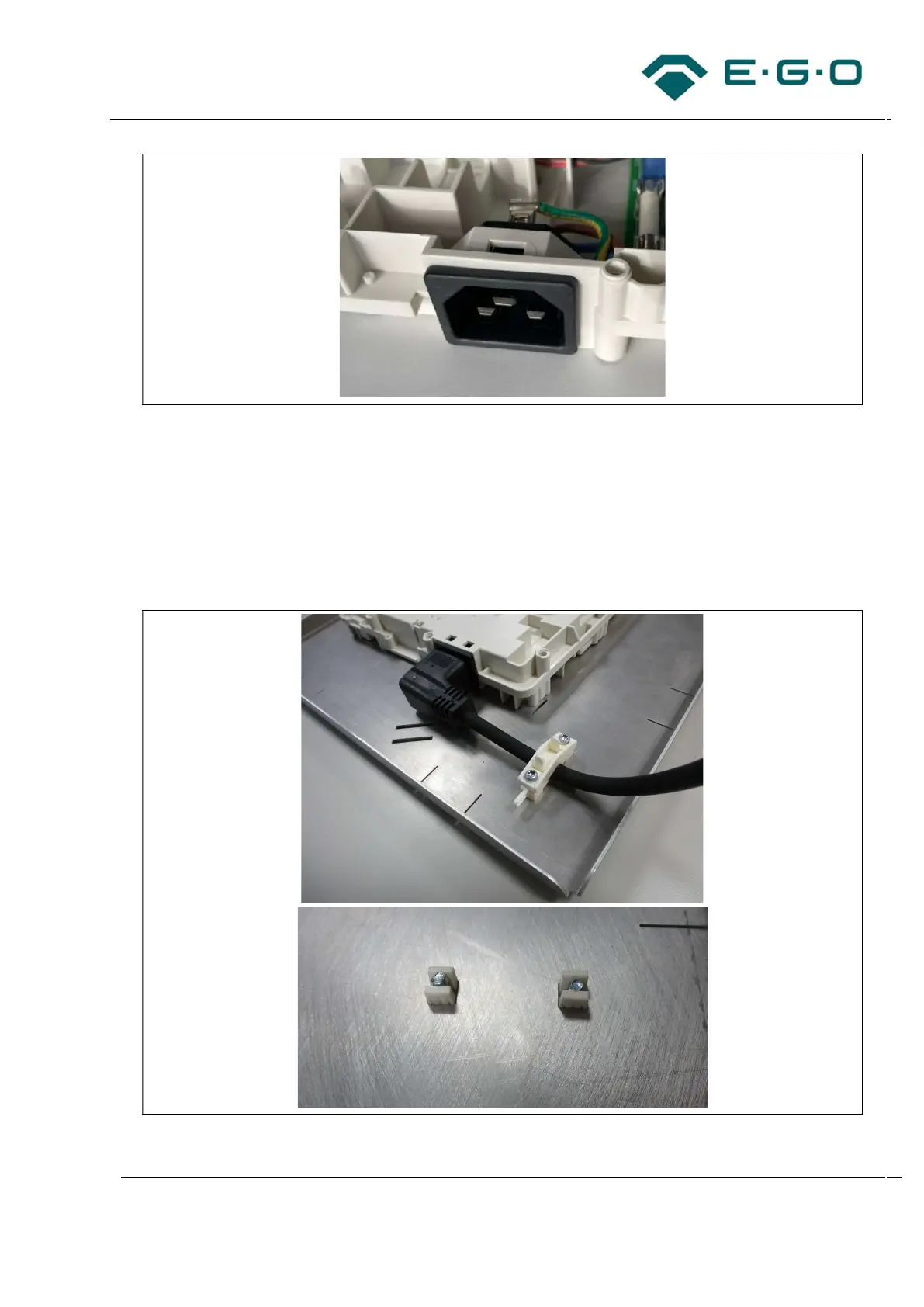

24 Optional built-in socket for domino master generators
An additional fixation of cables for the hot plug connector must be considered in a built-in cooktop.
It is not allowed to do the cable fixation under the user interface or the inductor.
It must be considered that the screw of the cable fixation never affects the glass in any kind of
working, storage, installation or transport conditions.
It must be considered that clearance and creepage distances to user interfaces, inductors and
cables are fulfilled.
A recommended cable fixation is HMCC-1-01 from manufacturer Essentra Components.
25 Exemplary and recommended cable fixation (views from bottom and top of the mounting plate)
