product operating instruction
E.G.O. Germany (E.G.O. Elektro-Gerätebau GmbH)
document id.: 90.60160.286-001-04-A / state: 230 - released
designation: Induction Gx
4 Installation and commissioning
Observe the corresponding type drawing and data sheet before assembling or connecting induction
components.
The ambient and operating temperatures must not exceed 85 °C.
The minimum ambient and operating temperatures are 0 °C.
The relative humidity must not exceed 93 % (T<40 °C).
It must be ensured that there is no condensation on the electronics before commissioning.
The maximum intake temperature of the fan must not exceed 70 °C.
The nominal voltage of mains voltage is 230 V (50/60 Hz).
The rated voltage of mains voltage is between 200 and 240 V.
The working voltage range of mains voltage is between 160 and 264 V.
CMOS circuit. Pay attention on ESD protection.
1 ESD protection
4.1 Assembly of components
This chapter is only relevant if Gx has been purchased as separate components or if repairing an
Induction Gx heating system. The distances to the metal frame must be also considered for systems by
having inwards looking frames related to the mounting plate.
The generators themselves are pre-assembled e.g., all generator-internal parts as well as the internal
wiring (e.g., fans, filter board) have already been performed.

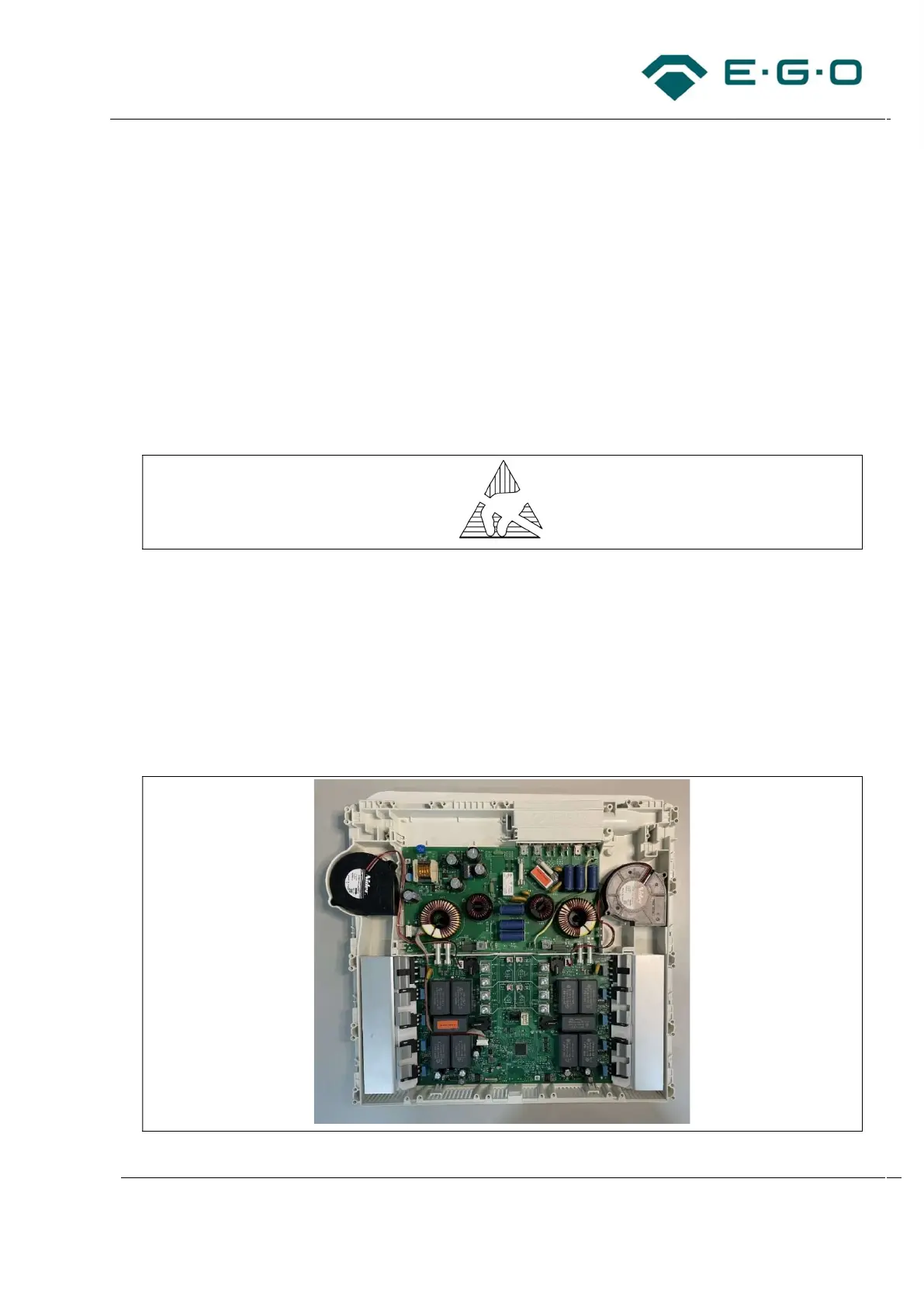

2 Exemplary VDE 4-burner generator
