product operating instruction
E.G.O. Germany (E.G.O. Elektro-Gerätebau GmbH)
document id.: 90.60160.286-001-04-A / state: 230 - released
designation: Induction Gx
page
34
of
43
General final steps from a system to a cooktop:
Assemble the glass ceramic. The top edge of the mounting plate and the bottom edge of the glass
ceramic has a nominal height of 12.0 +1 mm for user interfaces and inductors. The glass ceramic
must be assembled within 4 hours after the assembly of the induction coils. If this cannot be
secured, the assembled induction coils must be pushed down with a weight of 9 kg until the glass
ceramic assembly.
Connect the mains cord.
Use only connection cords with a cross section of minimum 1.5 mm². Depending on local
regulations and specific hob power requirements an increased cross section of e.g., 2.5 mm² or
higher (independently from a use of a one- or two-phase connection) must be used.
No grounding and no power supply connection may be installed between the two generator
boards.
The torque for the screws of the connection block is 2 Nm + 0.2 Nm.

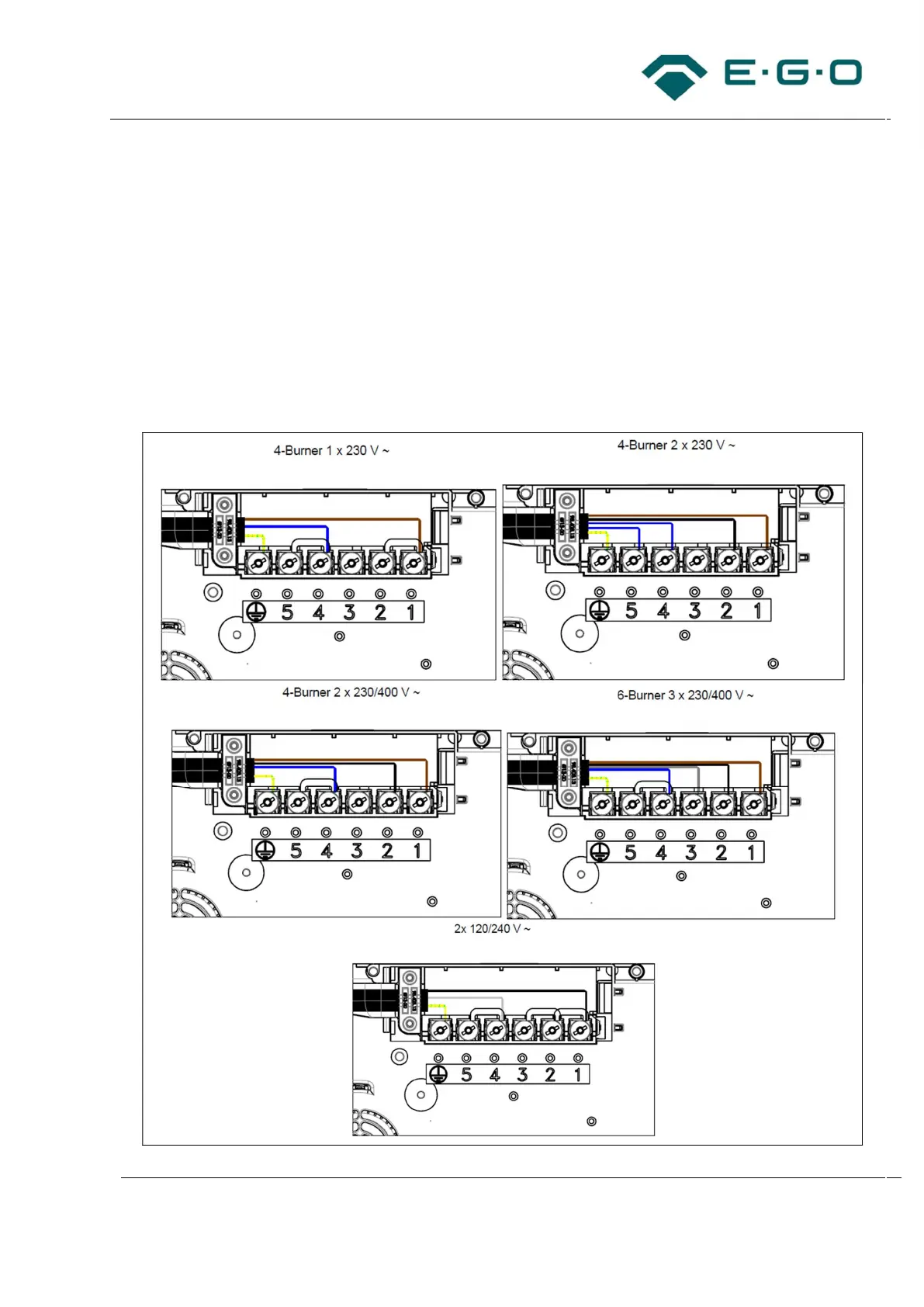

26 Cable routings for exemplary configurations
