Perform a safety and function check.
Enclose the cover, bridge pieces and clamp terminals with screws for the generator to your scope
of delivery. The torque for the strain relief is 2 Nm + 0.2 Nm with reference screw 969.173.

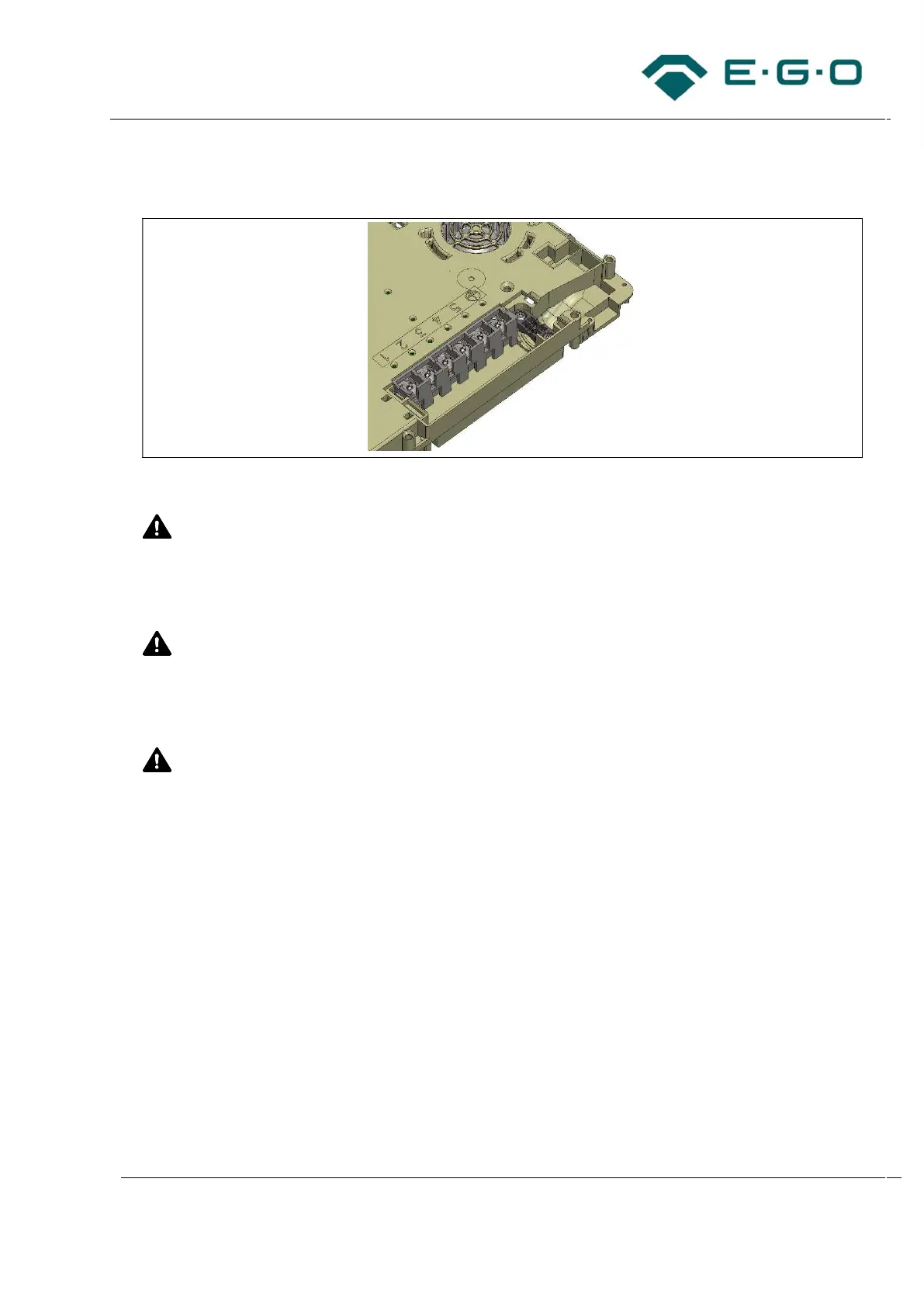

27 Connection block
DANGER! Risk of electric shock. An open generator connection box provides touchable live
parts.
The assembly of the clamp terminal with screw 969.173 and the housing cover 98.403.08 is
mandatory to achieve a proper protection against accidental contact.
DANGER! Risk of electric shock. Cables which are routed outside a housing of a cooktop
provide only a base isolation.
If the cable can be touched by fingers after assembling, an additional isolation around both power
supply and signal cables is needed. This can be performed best by using a shrinking tube.
CAUTION! Risk of EMC problems. A wrong cable routing or too long wires may cause EMC
problems (interconnecting cable of generators).
Perform the cable routing as recommended in the operating instruction and customer
documentation.
Never use cables which are longer than recommended.
Never route cables above filter components (chokes, capacitors).
