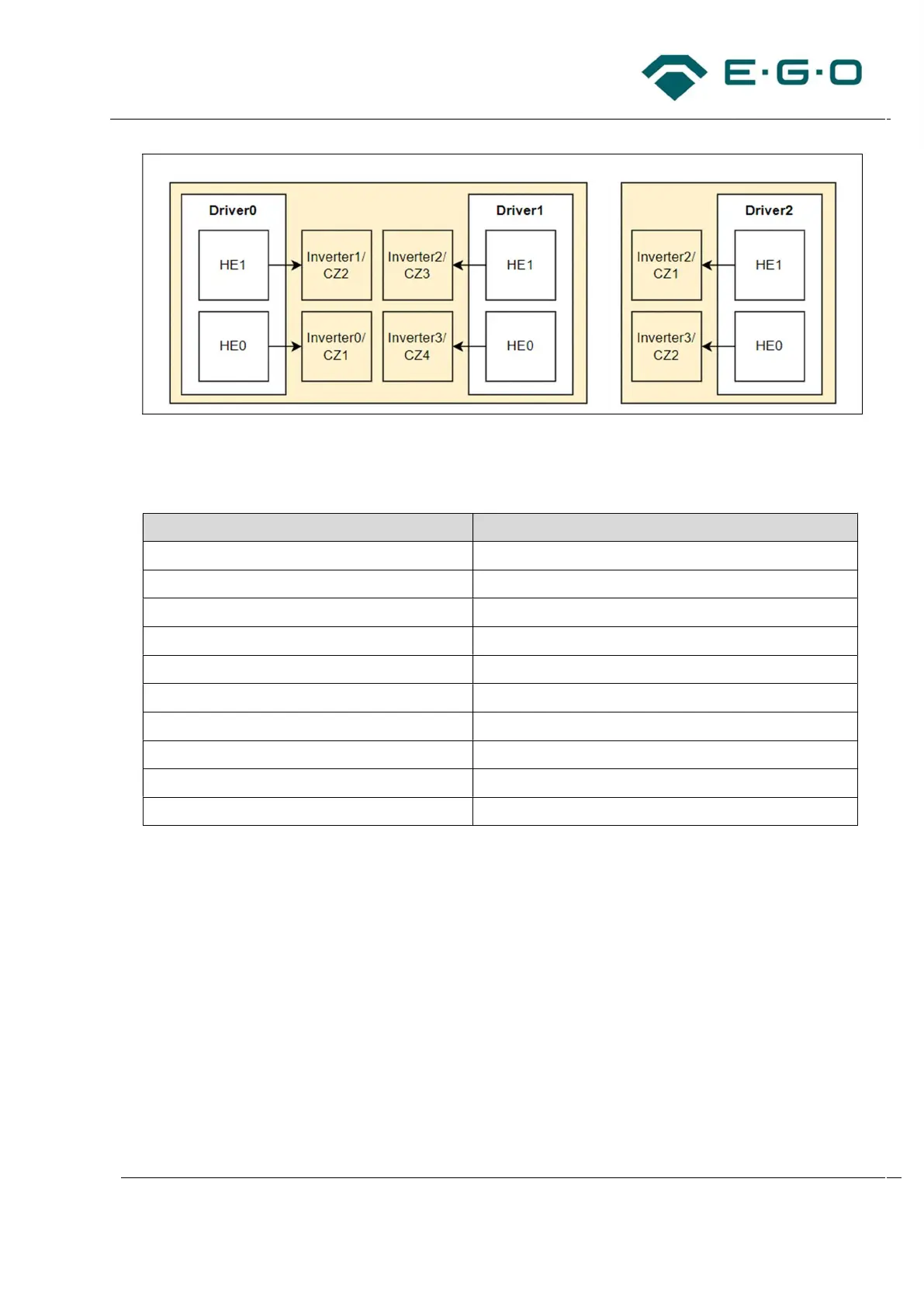

6-burner system with a 4-burner master and a 2-burner slave generator
32 Exemplary numberings and assignments of inverters, coils and drivers with combined generators

Align affected numberings of inverters, coils and drivers to the relating component index.
Index Alignment
0 Common
1 Driver 0 and heating element (HE) 0
2 Driver 0 and heating element (HE) 1
3 Driver 0
4 Driver 1 and heating element (HE) 0
5 Driver 1 and heating element (HE) 1
6 Driver 1
7 Driver 2 and heating element (HE) 0
8 Driver 2 and heating element (HE) 1
9 Driver 2
Tab. 9: Component indices
