EHRLE Series - Product Information; 3.1 Device Views KD623;KD823 Standard

300781 • 1/2019 • H.S.
14 of 70
Operating Instruction
High Pressure Cleaner cold water, mobile
Series 3x3
3 Product information
3 Product description
3.1 Device views KD623- and KD823-Standard
1
2
3
4
5
9
7
8
6
10
1 Trigger gun 6 High pressure outlet (pump)
2 Device switch 0/I 7 Unloader valve
3 Detergent container 8 Spray lance with adjustable nozzle
4 Pressure gauge 9 Filler neck for cleaning detergent
5 Connection water inlet 10 Mains cable connection 230 VAC
with adapter

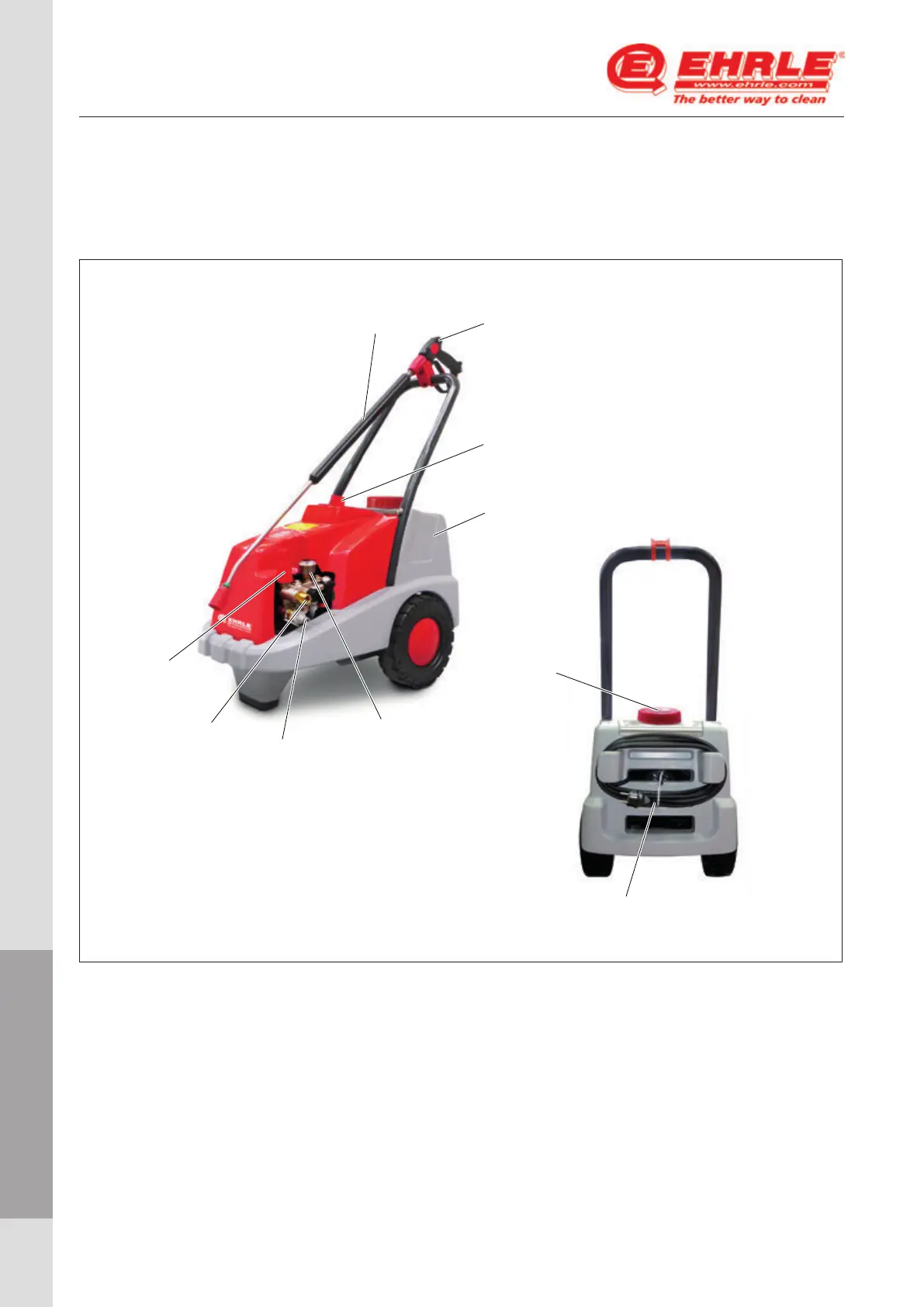

Fig. 3 - 1 KD623- and KD823-Standard, total and rear view
