Operating Instruction
High Pressure Cleaner cold water, mobile
Series 3x3
4 Installation
4.6.2 Device version Premium
General information
The following assembly instruction provides a general example of assem-
bling the device version Premium.
The assembly procedure for device version KD940-F-Premium (food
appliance with stainless steel components) is the same.
For device assembly proceed as follows:

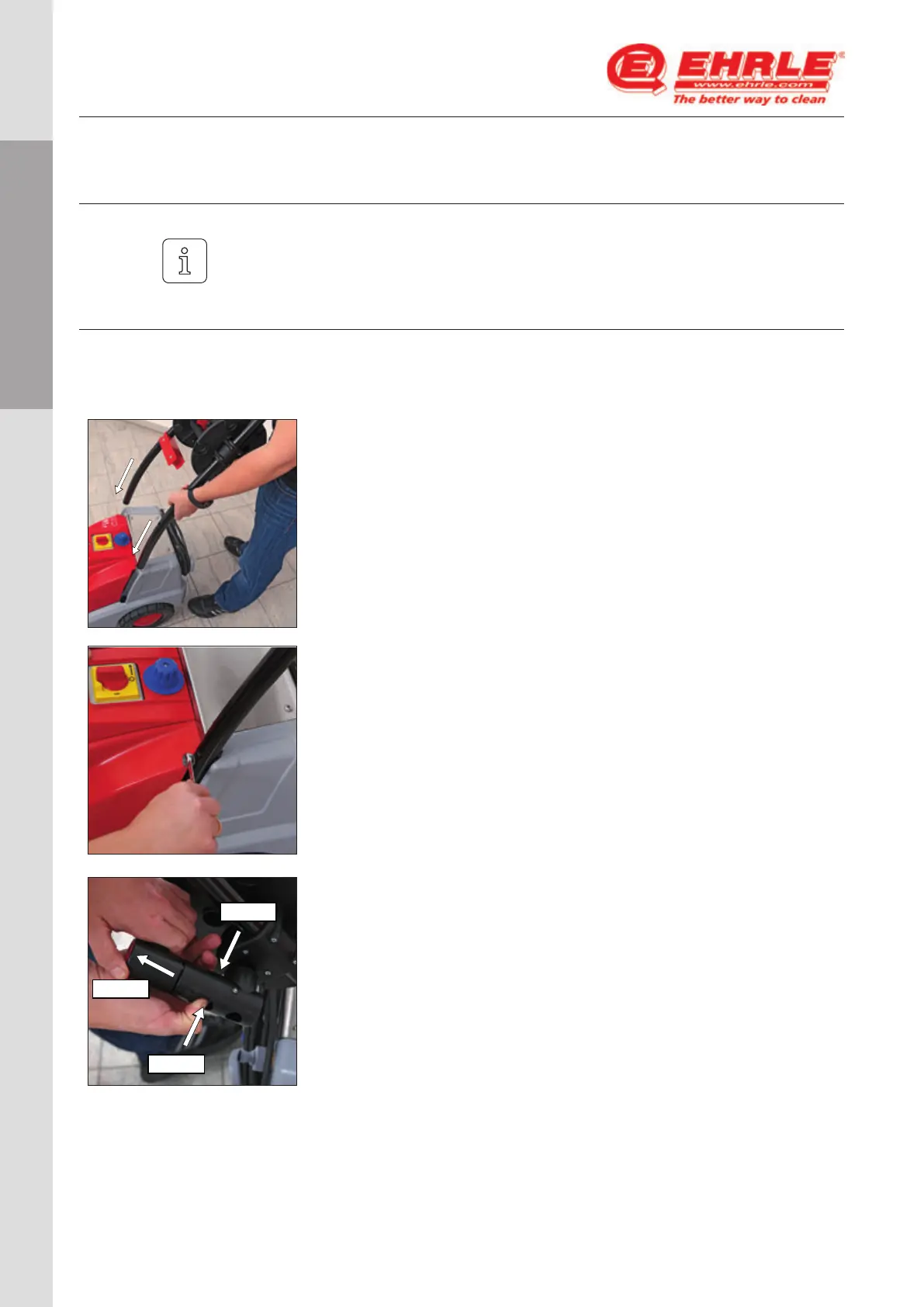

Installing the handle with hose reel
○ Insert the handle with the hose reel into the Chassis openings
provided for this purpose.
○ Position the two screw holes integrated in the handle to
match the chassis screw inserts.
Fixing the handle with hose reel
○ Provide the two attachment screws with washers.
○ On each side, guide the attachment screw through the hand-
le hole into the insert and tighten by hand.
○ Tighten both screws with an open-end wrench 13 mm.
Press
Press
Pull
Unlocking the hose reel
○ Press in the locking buttons with the thumb and index finger
and at the same time pull the handle out of the locking.
