Operating Instruction
High Pressure Cleaner cold water, mobile
Series 3x3
4 Installation

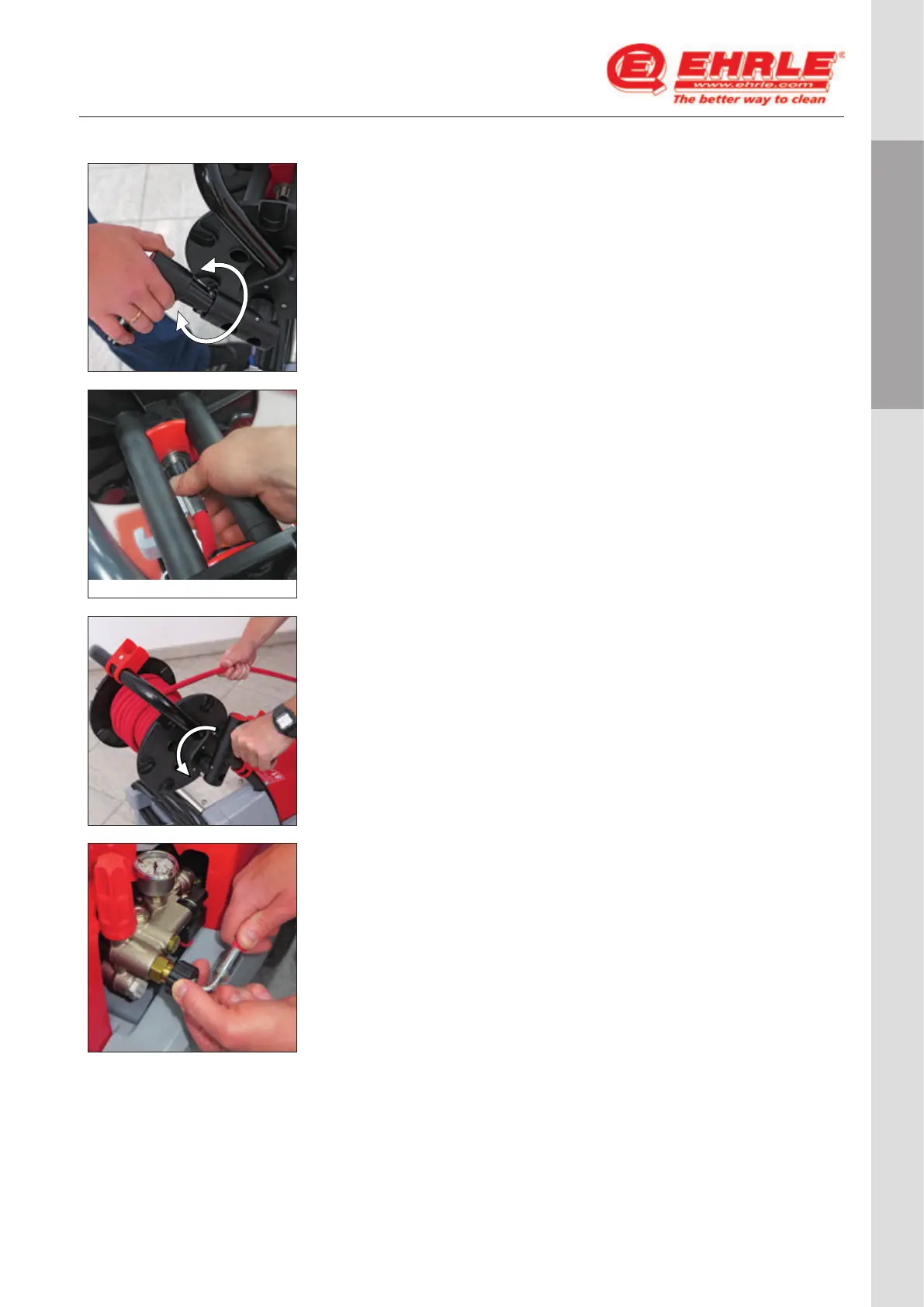

Moving crank handle to working position
○ Turn the handle 180 ° into the working position.
Mounting the HP-Hose to the hose reel
○ Unwind HP-Hose and lay out straight.
○ Attach the HP-Hose with the hose end without bend protecti-
on by hand to the connection in the middle of the hose reel.
Rolling up the HP-Hose
○ Wind the HP-Hose evenly and layer by layer on the hose reel
as shown in the figure.
Attaching connection hose (hose reel) to the pump
○ Attach the connection hose to the high pressure pump outlet
and tighten by hand.
