Operating Instruction
High Pressure Cleaner cold water, mobile
Series 3x3

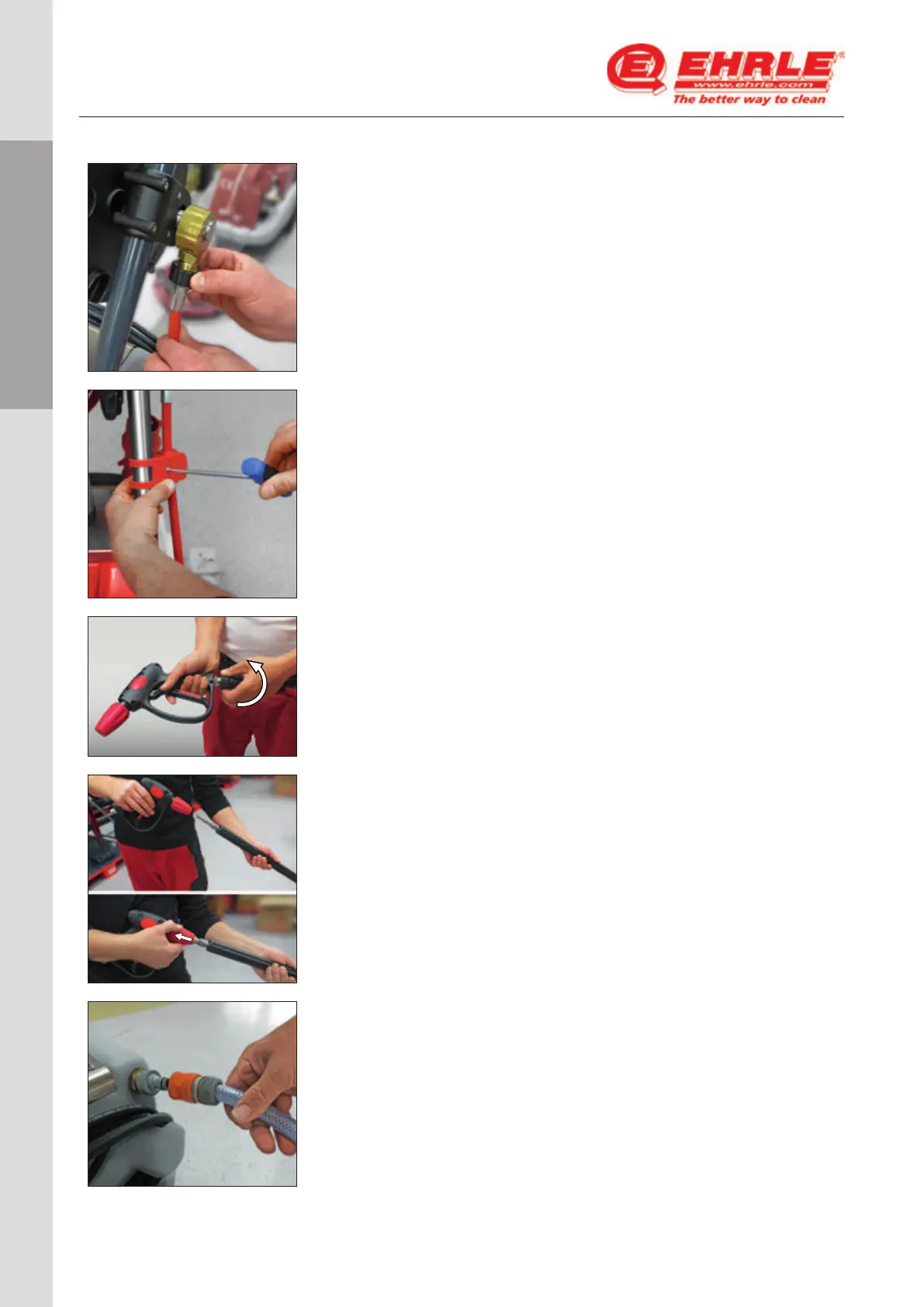

4 Installation
Attaching connection hose (hose reel) to hose reel
○ Attach the connection hose (hose reel) to the hose reel
connection adapter and tighten by hand.
○ While tightening the screw connection, stabilize the device
with your free hand.
Mounting the hose holder clip
○ Position the hose holder clip on the handle and tighten the
attachment screw with an hexagonal wrench SW5.
Connecting the HP-Hose to trigger gun
○ Attach the hose end with the bend protection to the trigger
gun and tighten by hand.
Mounting the trigger gun onto the spray lance
○ Pull back the quick lock (see figure lower left) of the trigger
gun and insert the lance.
○ After inserting the lance, make sure that the quick lock ar-
rests fully forward again.
Connecting to the water supply net
○ Connect the water supply hose 1/2“ (DN13) to the adapter on
the pump inlet.
