3 Product information
3.2 Device views KD623 UK- and KD823 UK-Standard
1
2
3
4
5
9
7
8
6
10
1 Trigger gun 6 High pressure outlet (pump)
2 Device switch 0/I 7 Unloader valve
3 Detergent container 8 Spray lance with adjustable nozzle
4 Pressure gauge 9 Filler neck for cleaning detergent
5 Connection water inlet 10 Mains cable connection 240 VAC
with adapter

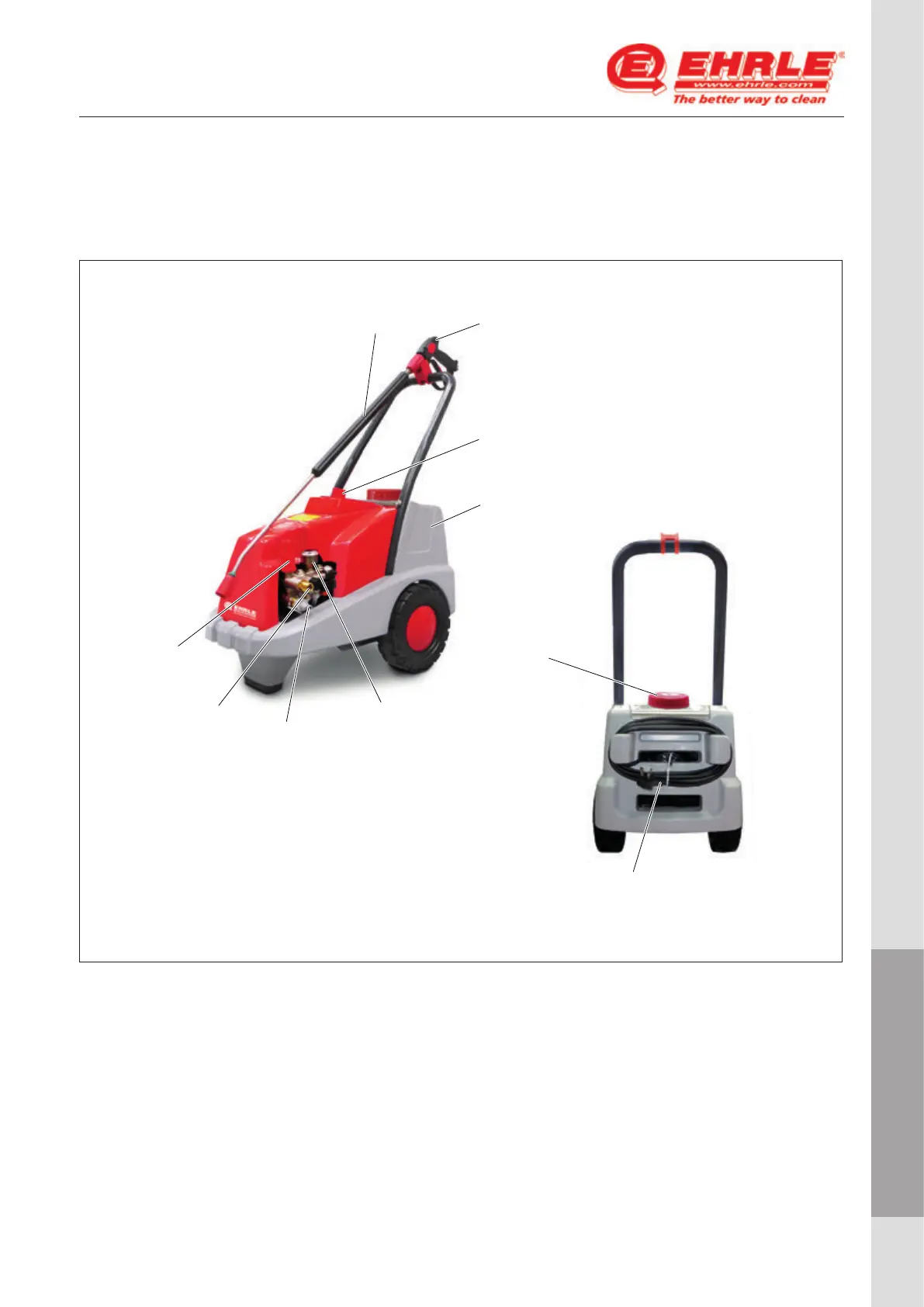

Fig. 3 - 2 KD623 UK- and KD823 UK-Standard, total and rear view
