High Pressure Cleaner cold water, mobile
Series 3x3
6 Operation
6.5.2 Cleaning detergent operation with version Standard
CAUTION
Chemical dry run or inadmissible detergents can damage the device.
Before starting cleaning detergent operation, make sure that the
cleaning agent container is sufficiently filled with cleaning agent.
Intake air or inadmissible causes damage to seals and pumps.
For operation with cleaning detergents with the version Standard:
 Check the detergent container (installation location see Section 3,
device views for version Standard) for filling, top up with approved
detergent if necessary.
 Turn adjustable nozzle (1, Fig. 6-4) on the spray lance (2, Fig. 6-4)
counterclockwise (direction „-“) to the left stop.
During operation, the cleaning detergent is now automatically sucked
in via the high-pressure injector and mixed with the high-pressure jet.
 Use the adjustment controller (1, Fig. 6-5) to set the dosage of the
cleaning detergent supply.
 To remove the dirt spray the cleaning detergent sparingly onto the
cleaning object and let it work for approx. one to five minutes.
 Then spray the loosened dirt with the high-pressure jet.
 After using cleaning detergents, switch the high pressure cleaner to
normal operation and rinse for at least 30 seconds.
For normal operation, turn the adjustable nozzle (1, Fig. 6-4) on the
spray lance clockwise (direction „+“) to right stop. The cleaning agent is
no longer admixed to the high-pressure jet.
2
1
3
+
-
1 Adjustable nozzle
2 Spray lance
3 Trigger gun

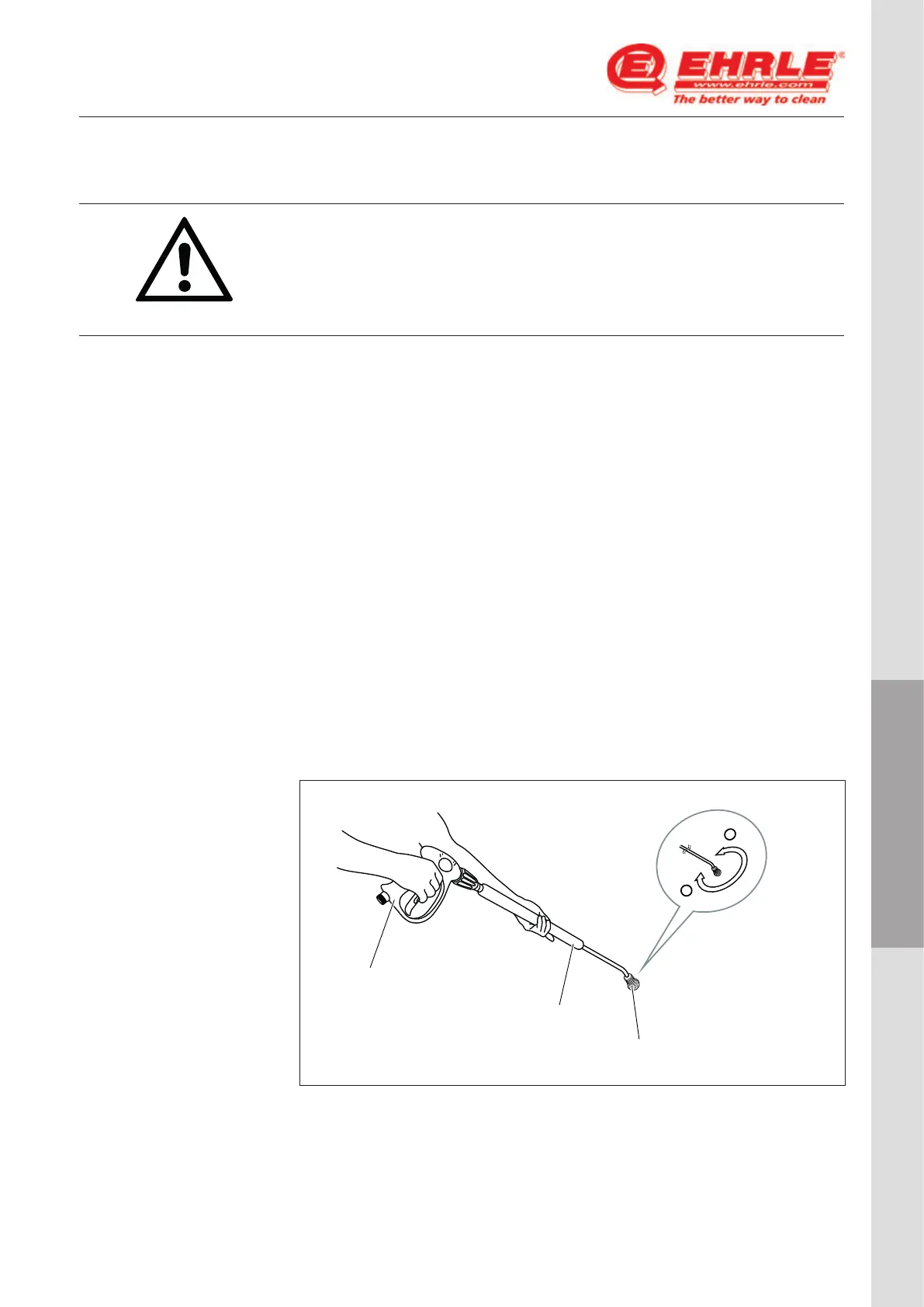

Fig. 6 - 4 Setting adjustable nozzle of the spray lance
(Version Standard)
