4 Installation

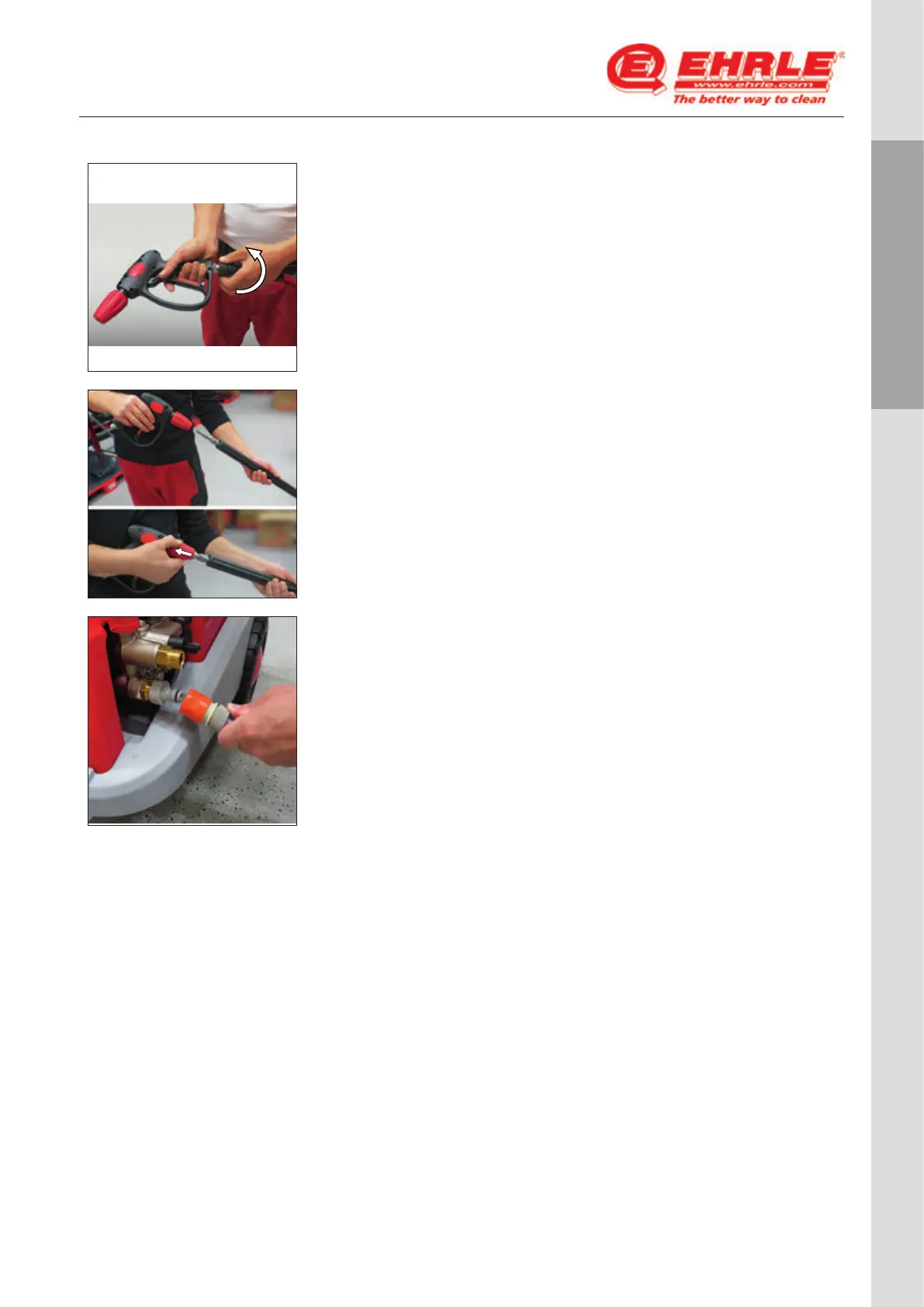

Connecting the HP-Hose to trigger gun
○ Attach the hose end with the bend protection to the trigger
gun and tighten by hand.
Mounting the trigger gun onto the spray lance
○ Pull back the quick lock (see figure lower left) of the trigger
gun and insert the lance.
○ After inserting the lance, make sure that the quick lock ar-
rests fully forward again.
Connecting to the water supply net
○ Connect the a water supply hose 1/2“ (DN13) to the adapter
on the pump water inlet.
