2. Installation
2-1. Environmental Settings
Depending upon your operating environment, it may be necessary to set the frequency that corresponds
to your graphics board. If you install it for the first time or change environment, set the monitor.
NOTE
•
Factory default settings are for single display mode and Dual Link.
•
We recommend using ColorNavigator with single display mode in landscape orientation.
•
Refer to the manual of the graphics board.
•
These environment described below can be set regardless of whether or not the computer is running.
Displaying Two Screens Simultaneously
It is possible to display two screens on a single monitor at the same time by using one graphics board
with DVI-D2 type output or two graphics boards with DVI-D output on the same computer.
Dual display with 1200 × 1600 resolution is the maximum display size.

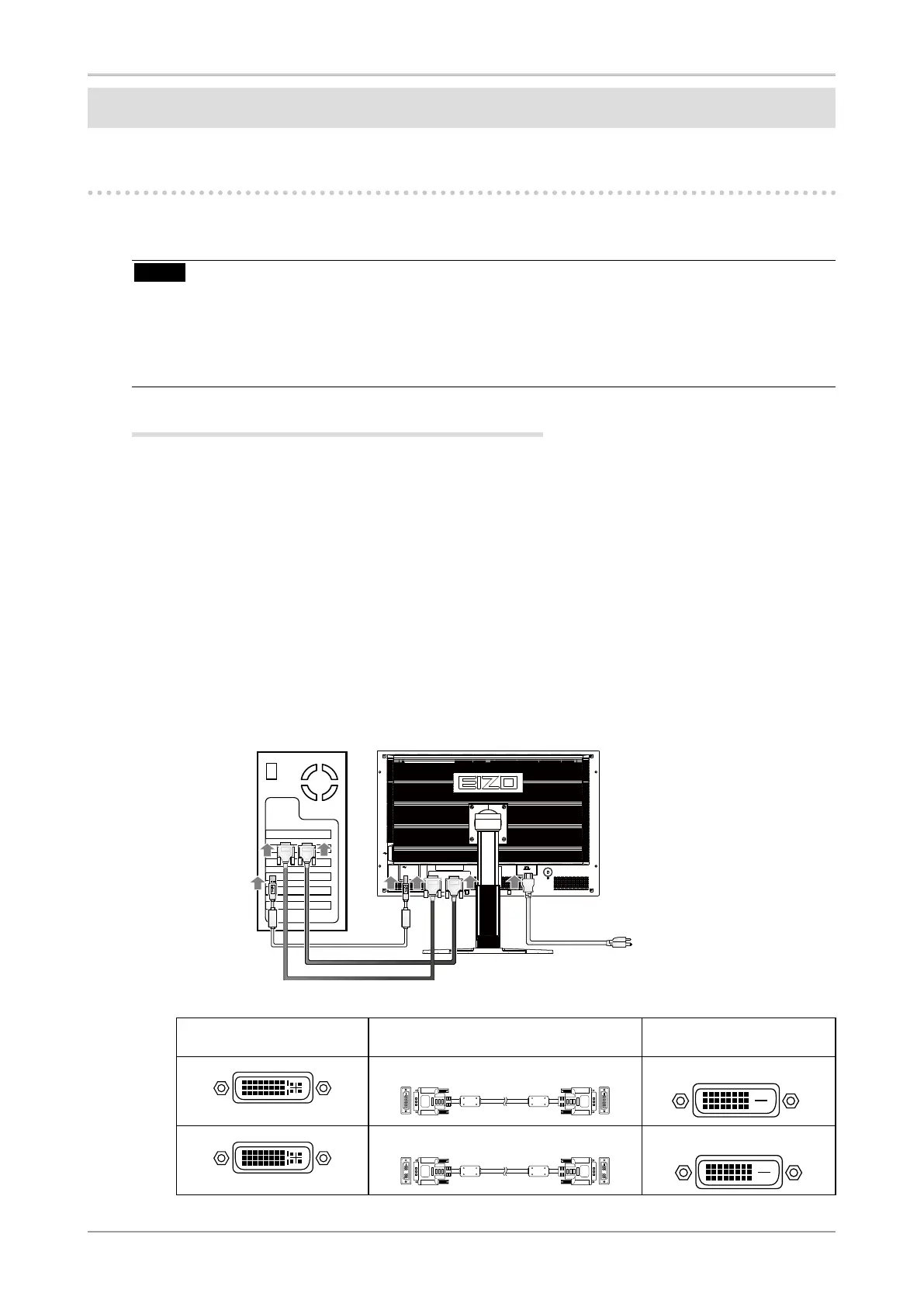

How to set
1
Connect the [SIGNAL1] signal input connector and the computer using the
[DD200DL-BK] signal cable.
2
Connect the [SIGNAL2] signal input connector and the computer using the
[FD-C39] signal cable.
After connecting the cable connectors, tighten the screws of the connectors to secure the coupling.
Connectors on the PC Signal cable Connectors on the
monitor
Signal cable (DD200DL-BK)
SIGNAL1
Signal cable (FD-C39)
SIGNAL2
FD-C39
DD200DL-BK
To Next Page
