Chapter 1 Introduction

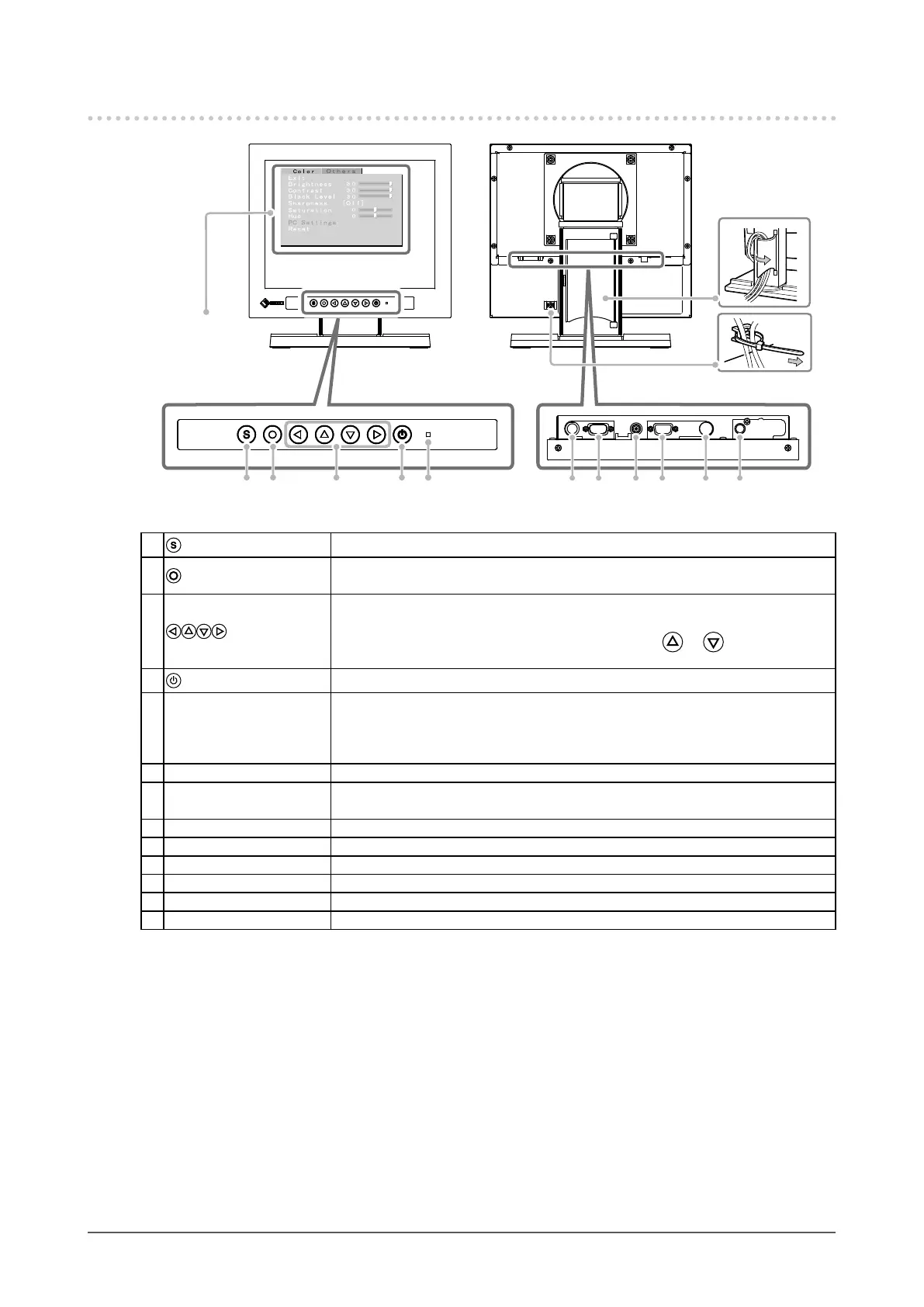

1-3. Controls and Functions
Setting menu
1 button Switches the input signal.
2
button
Displays the Setting menu, xes the setting or adjustment items on each menu,
and saves the setting or adjustment results.
3
button
・
Used to select the setting or adjustment items, or to increase or decrease the
adjustment values on each menu.
・
When the settings menu is not displayed, pressing
or switches
between displaying and not displaying the crosshair.
4
button Turns the power on or off.
5 Power indicator
Indicates monitor’s operation status.
Blue : Operating
Orange : Power off
6 Maintenance port For monitor control
7
Serial port for the touch
panel
Connects the PC to the monitor with an RS-232C cable.
8 Power jack (DC-IN) Connects to the AC adapter.
9 Input signal connector D-Sub mini 15-pin connector × 1
10 Input signal connector S-Video input connector × 1
11 Input signal connector Video input connector × 1
12 Cable holder Covers the monitor cables.
13 Cable tie Clinches the cables.
