21
Chapter 2 Settings and Adjustments

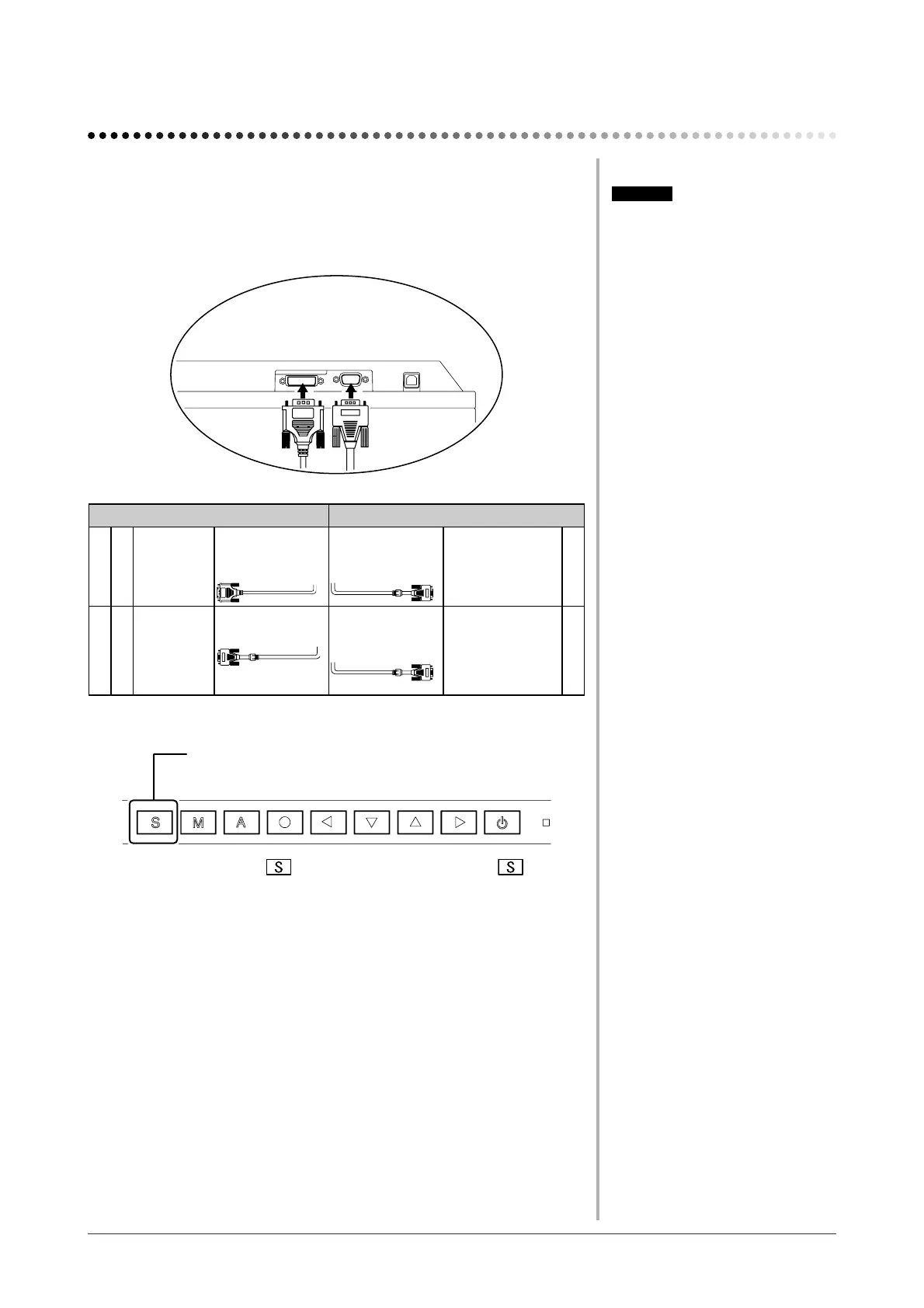

3-1 Connecting Two PCs to the Monitor
Two PCs can be connected to the monitor through the DVI-I and the D-Sub
mini 15 pin connector on the back of the monitor.
Connection examples
DIV-I connector
(SIGNAL1)
D-sub mini
15-pin Connector
(SIGNAL2)
PC 1 PC 2
Example 1
Digital
DVI Signal cable
(supplied with
FD-C39)
Signal cable
(supplied
MD-C87)
D-sub mini 15-pin
Analog
Example 2
Analog
D-sub mini
15-pin
Signal cable
(FD-C16 option)
Signal cable
(supplied
MD-C87)
D-sub mini 15-pin
Analog
Selecting input signal
Input Signal Selection button
Switch the input signal with . Input signal switches each time is
pressed. When the signal is switched, the active signal type (Analog or Digital)
appears at the top right corner of the screen for two seconds.
Chapter 3 Connecting Cables
Attention
• When using an optional signal cable
(FD-C16), be sure to connect the
D-sub mini 15-pin connector to the
PC, and the DVI-I connector to the
monitor. Wrong connection may
result in no picture display.
To Next Page
