Thank you very much for choosing an EIZO color LCD monitor.
1-1 Features
• Dual-input compliant (DVI-I and D-sub mini 15-pin connectors)
• DVI digital input (TMDS) compliant
• Horizontal scan frequency: Analog: 24 - 80 kHz, Digital: 31 - 76 kHz
• Vertical scan frequency: Analog: 49 - 76 Hz (1600 × 1200: 49 - 61 Hz)
Digital: 59 - 61 Hz (VGA text: 69 - 71 Hz)
Resolution: 1600 dots × 1200 lines
• Compatible with frame synchronization mode (59 - 61 Hz)
• Smoothing (soft - sharp) function for adjustment of enlarged images
• BrightRegulator function incorporated
• FineContrast mode to allow the best mode for screen display
• The utility software “ScreenManager Pro for LCD” (for Windows) to control
the monitor from a PC with mouse/keyboard is included (refer to the EIZO
LCD Utility Disk).
• Height adjustable stand
• Ultra slim bezel
• Portrait/Landscape display available

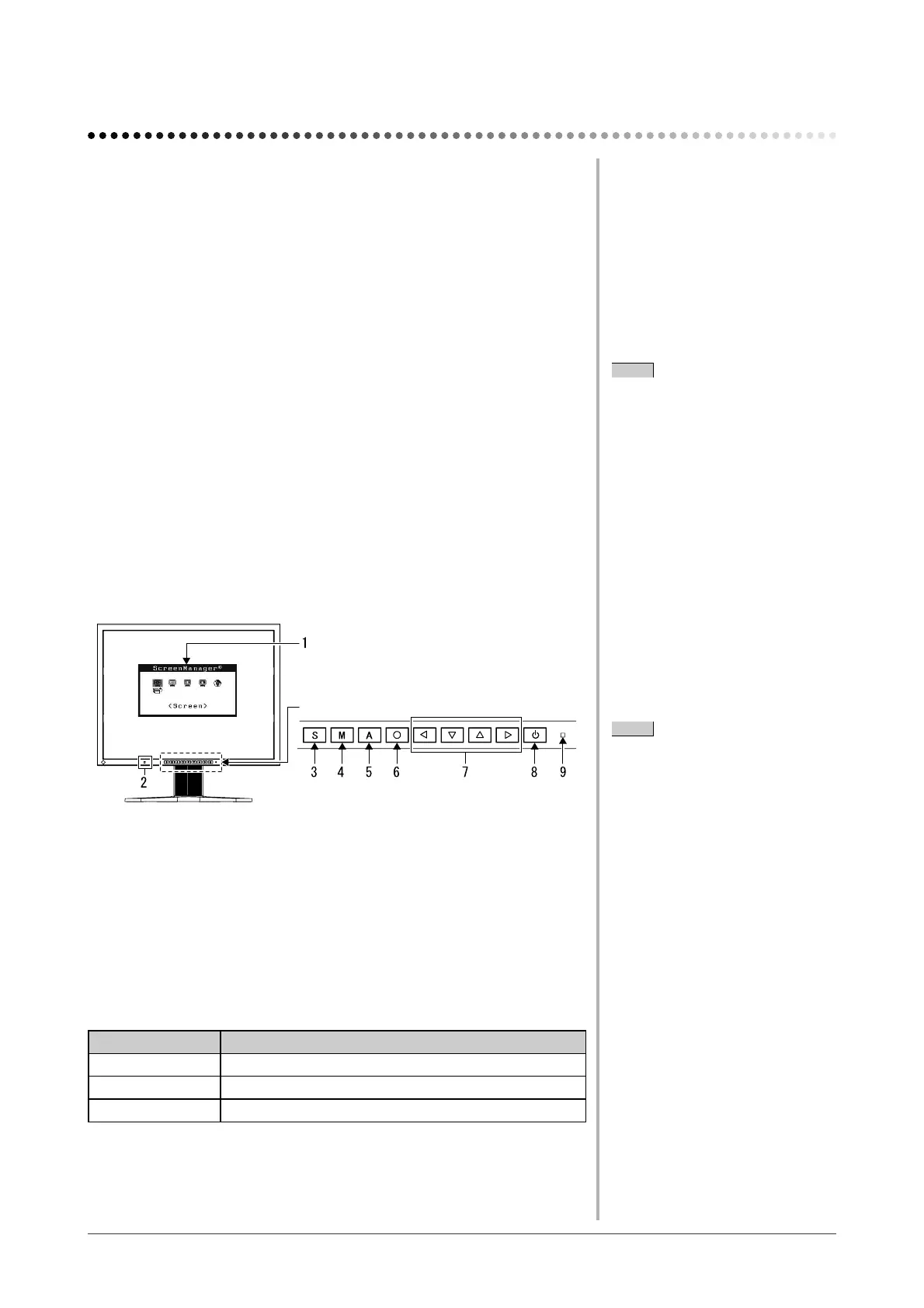

1-2 Buttons and Indicators
Buttons
1. Adjustment menu (*ScreenManager
®
)
2. Senser (BrightRegulator)
3. Input signal selection button
4. Mode button
5. Auto adjustment button
6. Enter button
7. Control buttons (Left, Down, Up, Right)
8. Power button
9. Power indicator
Indicator status Operation status
Blue The screen is displayed
Yellow Power saving
Off Power off
* ScreenManager
®
is an EIZO’s nickname of the Adjustment menu.
NOTE
• While a screen is displayed, the blue
power indicator can be turned off (see
“To turn off the Power Indicator while
a screen is displayed,” on page 18).
• For the power indicator status with
“Off Timer” set, refer to “To set
monitor power-off time” on page 16.
NOTE
• This monitor supports the Portrait/
Landscape display. (The panel can be
turned 90 degrees clockwise.)
• The stand of the unit can be replaced
with an arm or another stand. (Refer
to “5-1 Attaching an Arm” on page
25.)
• Select “Portrait” for <Orientation>
on <Others> menu of the Adjustment
menu to turn the menu 90 degrees.
